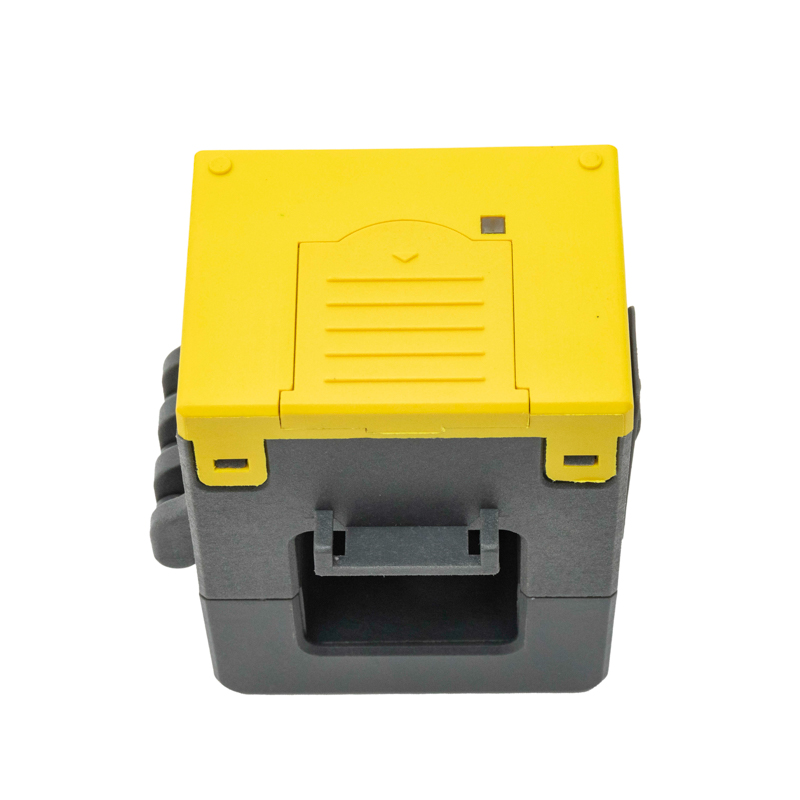

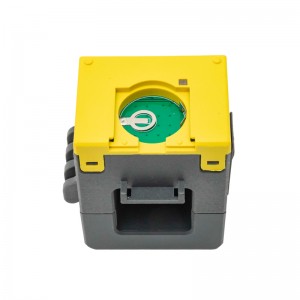

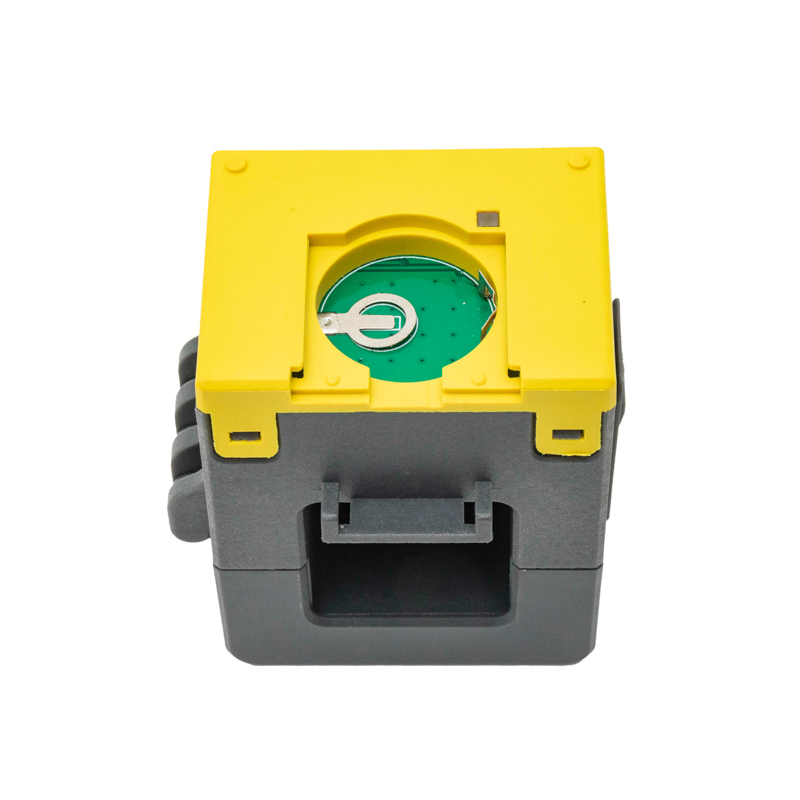

ACE100 wireless temperature and current compounding transformer is mainly used for monitoring and measuring the temperature and current of low-voltage switchgear transmission cables. The product uses dual power supply mode of battery inside and electromagnetic energy, which provides a fast and accurate measurement of temperature and current data of low voltage cables, then transmits the data to the receiver through wireless. The product is easy to install, can comprehensively test cable data and helps users to find hidden dangers in the line as early as possible, ensures power supply safety and realize intelligent distribution network.
ACE100-29 Wireless Temperature Monitoring Devices Overview
Wireless Transceiver
ATC600-C is a supporting facility for ACE100 wireless temperature and current compounding transformer, which uses din rail installation method (DIN35mm), the size is 90mm*90mm*38mm.
Typical Connection
Outline and Dimension

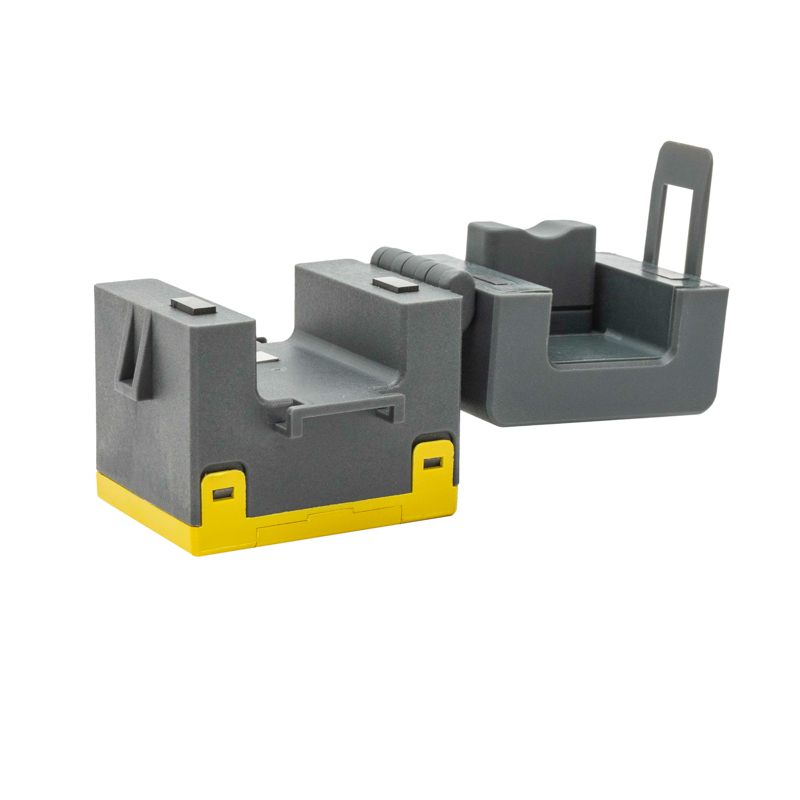

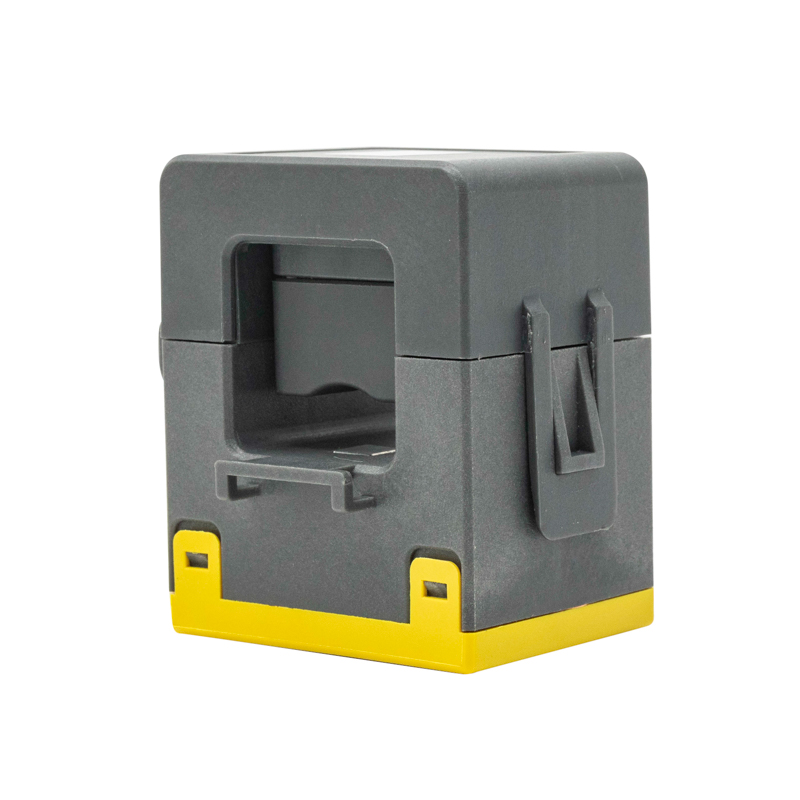

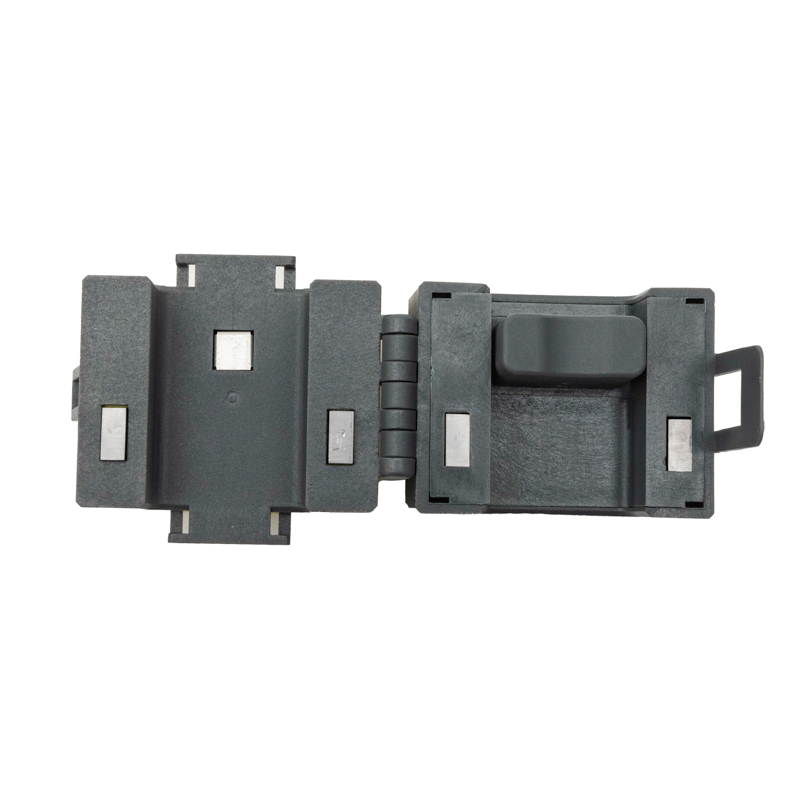

ACE100 wireless temperature and current compounding transformer uses snap-in installation method. When installing, the sensor shall be tightly attached to the cable to be tested, and the CT snap shall be fully fastened. When the current inside the cable is less than the start-up current for the transformer, it uses battery inside to operate, if the current is greater than the start-up current of the transformer, it will sense the power to save battery power.
Benefits of ACE100-29 Wireless Temperature Sensor
• Wireless transmit, 470MHz
• Wireless transmission distance, 150 meters in the open area
• Fast sampling frequency
• Battery or CT powered
• Widely temperature measuring range, -50℃~+125℃
Acrel ACE100-29 Wireless Temperature Measuring Sensor
Technical Parameters
| Wireless temperature sensor | |||
|
Technical Parameters
|
Specifications
|
||
|
Measurement rage
|
Temperature
|
-50℃~125℃
|
|
|
Current
|
1~400A，AC
|
||
|
Accuracy
|
Temperature
|
±1℃
|
|
|
Current
|
1%FS
|
||
|
Resolution ratio
|
Temperature
|
0.1℃
|
|
|
Current
|
0.01A
|
||
|
Acquisition and transmission cycle
|
electromagnetic energy ：10~30S；battery：3min
|
||
|
electromagnetic energy start-up current
|
2.5A，AC
|
||
|
Battery life
|
3 years（25℃），changeable（Type: CR2450）
|
||
|
Ratio frequency
|
470Mhz
|
||
|
Transmission distance
|
150m（outdoor）
|
||
|
Operating environment
|
-40~85℃
|
||
|
Installation method
|
Snap-in type
|
||
|
Installation cable diameter
|
6~29mm
|
||
| Transceiver | |||
| ACREL Model | ATC600 | ||
| Power supply | AC/DC 110V/220V | ||
| Installation | Din rail 35mm | ||
| Communication | Modbus RTU RS485 | ||
| Extra function | Alarm output 2DO | ||
