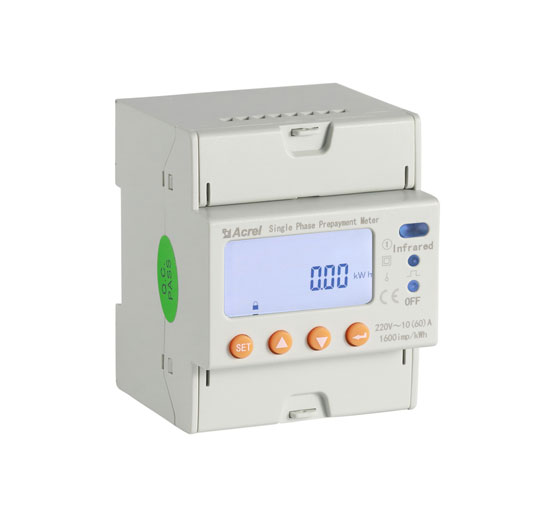

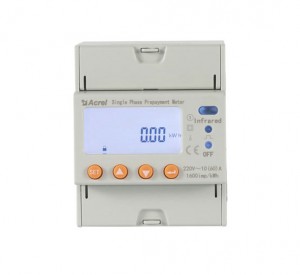

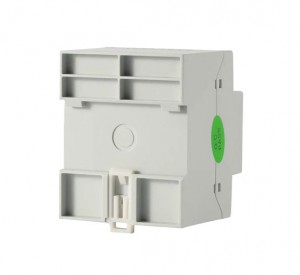

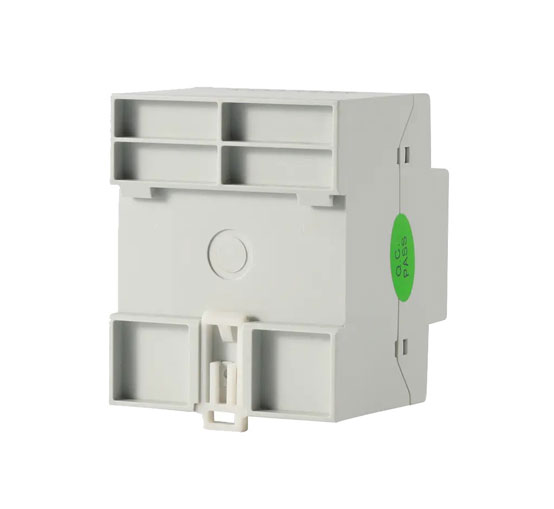

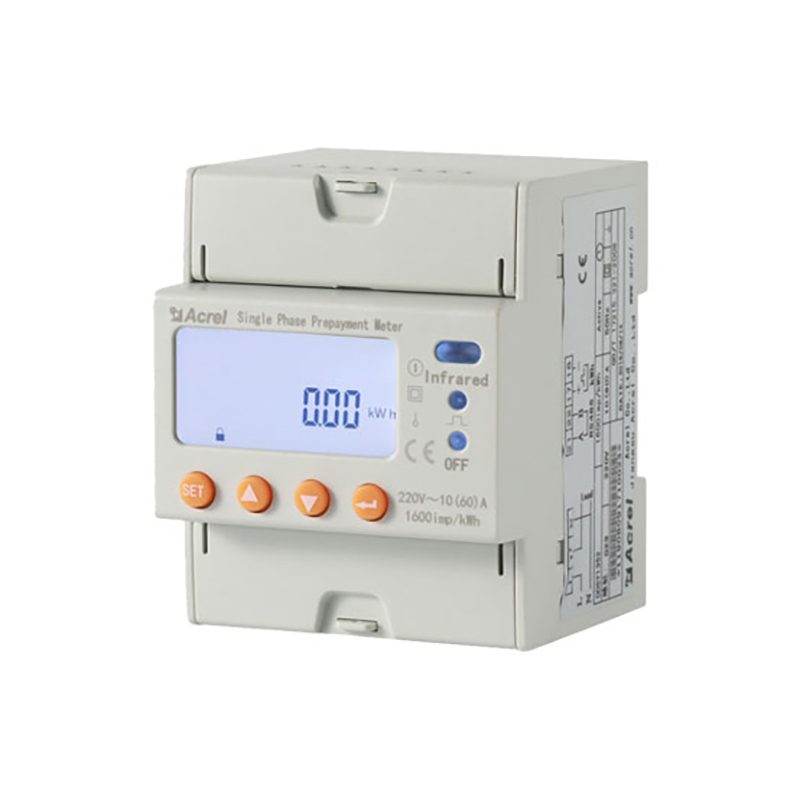

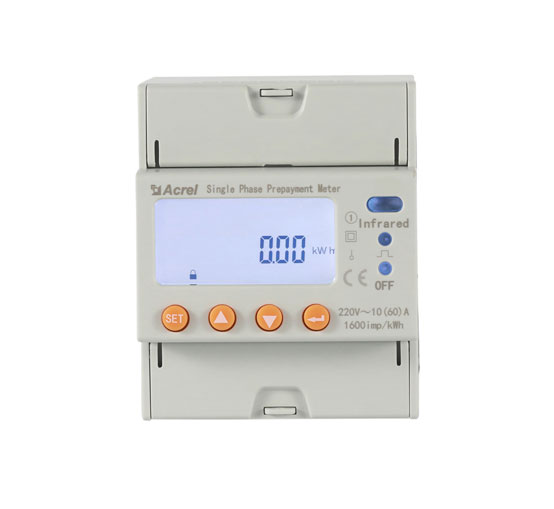

Acrel ADL100-EY Single Phase Prepaid Energy Meter
Acrel ADL100-EY single phase prepaid energy meter
● AC 220V
● 10(60)A
● Prepaid mode
● LCD display
● Historical records
● kWh Class 1
● DIN 35 mm
● Standard&Certificate: CE
Acrel ADL100-EY Single Phase Prepaid Energy Meter
General
Acrel ADL100-EY single phase prepaid energy meter supports rf recharge (or card recharge) and remote recharge, with prepayment control, time control and other control methods. Built-in 100A large capacity magnetic relay, which can realize the internal switching and closing of the instrument. Can also provide dry contact output control external circuit breaker trip function. It is widely used in pre-payment electricity management of commercial square, residential dormitory and school dormitory.
Remote selling electricity, infrared function,remote control, energy consumption inquiry and analysis.

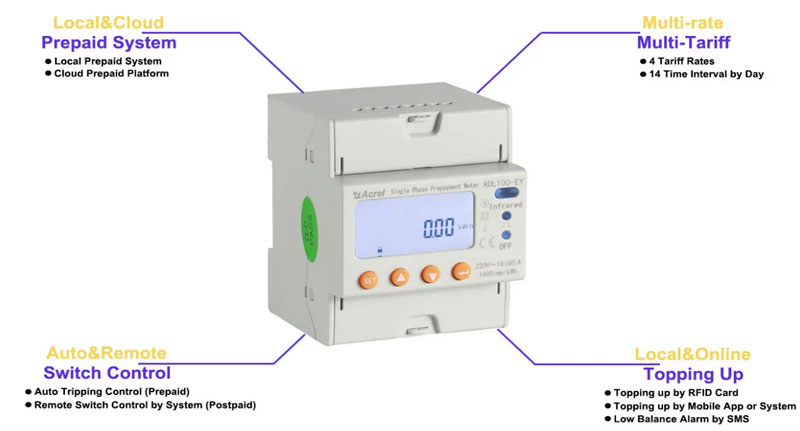

Features of ADL100-EY Single Phase Prepaid Energy Meter
Features
Local&Online Topping Up
Topping up by RFID Card (Local)
Topping up by Mobile APP (Online)
Topping up by Prepaid System (Online)
Low Balance Credit Alarm by sending SMS
Auto&Remote Switch Control
Meter Supports Prepaid Mode & Postpaid Mode
Auto Tripping when Balance Credit is below Zero (Prepaid Mode)
Before Auto Tripping, Power Users can receive Low Balance Alarm by SMS
Remote Swtich Control by using Prepaid System (Prepaid&Postpaid Mode)
Prepaid&Postpaid Mode of Meters can be set using Prepaid System
Multi-rate&Multi-tariff
4 Tariff Rates (Spike, Peak, Flat, Valley kWh Unit Price)
14 Time Intervals by Day
Set Unit Price of Electricity Consumption for different Time Period of 1 Day
Diagram of ADL100-EY Single Phase Prepaid Energy Meter
ADL100-EY single phase prepaid energy meter separately calculates individual active energy at 50/60 Hz frequencies. With radio frequency card recharge function, with circuit breakers to achieve load cutting, RS485 communication and other functions, to meet the IEC62053-21, IEC62053-22 standards in the electronic watt-hour meter related technical requirements.

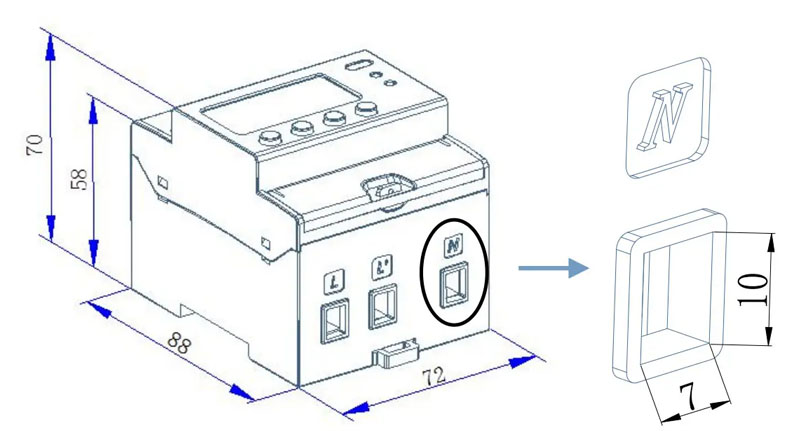

Dimension of ADL100-EY Single Phase Prepaid Energy Meter
Wiring of ADL100-EY Single Phase Prepaid Energy Meter

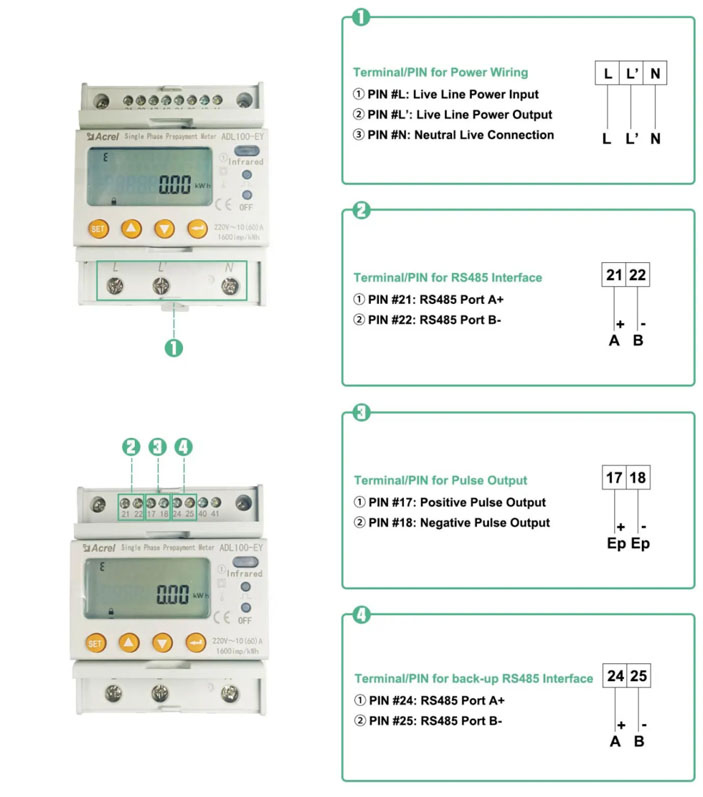

PIN/Terminal Overview of ADL100-EY

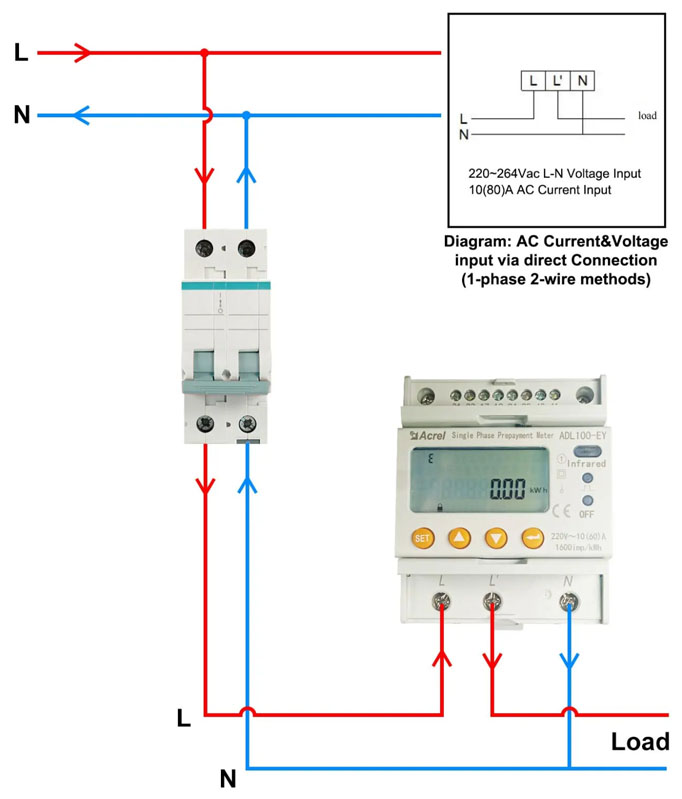

Power Wiring of ADL100-EY: 1-phase 2-wire via direct connect
RS485 Wired Communication of ADL100-EY with IoT Gateway
Installation of ADL100-EY Single Phase Prepaid Energy Meter

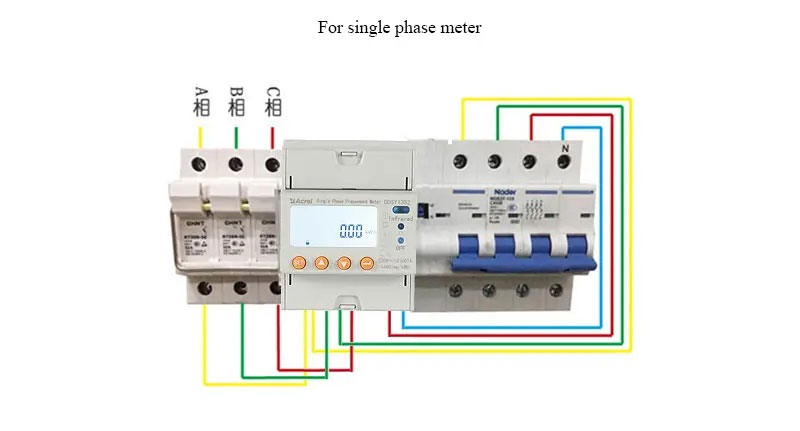

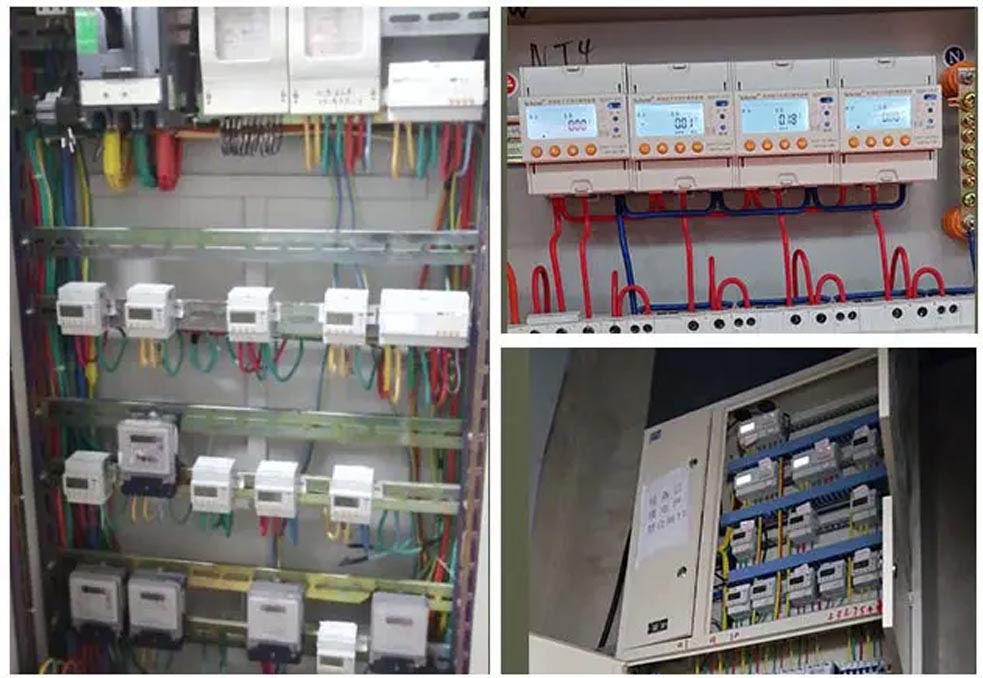

On-site Installation of ADL100-EY Single Phase Prepaid Energy Meter
Benefits of ADL100-EY Single Phase Prepaid Energy Meter
• High-definition LCD: LCD Backlight Display
• Anti-flaming Shell: made of high flam retardant material ABS
• Details Oriented: Insulating connection hole is resistant to corrosion
• Remote selling electircity: support infrared, remote control, energy analysis
Use of ADL100-EY Single Phase Prepaid Energy Meter
• The electric charge management of each household in the residential property
• Management of electricity charges for tenants in shopping malls and supermarkets
• Centralized management of electricity charges for all departments of the group
• Localized electricity management in school dormitories
Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 2 pcs Products Dimension: 170mm*150mm*130mm |
Total N.W. (2 pcs) 0.517 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs Products Dimension: 540mm*480mm*280mm |
Total N.W. (36 pcs) 10.712 KG |
| Average Lead Time | Manufacturing: 3~4 days | Shippment: 8~9 days
(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |
How Does A ADL Series Prepayment Energy Meter Work?
ADL series prepayment energy meter through measuring the rated frequency of 50Hz single, three-phase AC active energy, with prepayment control, load control, time control and RS485 communication and other functions, to help consumers track their own electricity work, can be free according to their own electricity recharge. It will also remind you when the amount is insufficient based on the customer's past spending history, and automatically power off when the amount is used up, just like a mobile phone.
ADL Series Prepayment Energy Meter FAQs
Metering instruments focus on A variety of power data measurement, power parameter measurement and analysis, power quality measurement, etc. The focus of prepayment table is charging, alarm, control trip and so on.
The internal control instrument supports remote recharge, which reduces manpower and maintenance costs and improves user experience.
The need of market development. Point scattered, middle equipment is difficult to arrange or the cost is very high.
If the electricity charge runs out, the pre-paid meter will automatically disconnect.like running out of money on your phone
Acrel ADL100-EY Single Phase Prepaid Energy Meter
Function
| Function name | ADL100-EY | ADL300-EY | Function provide |
| Measurement of kWh | Total active energy kWh (positive and negative in total) | ■ | |
| Measurement of electrical parameters | U、I 、P、Q、S、PF、F | ■ | |
| Pre-paid mode | Through RS485 communication prepaid recharge, data encryption | ■ | |
| Control | Built-in high-capacity sub-holding relay to achieve load on-off control | ■ | |
| LCD display | 8 bits section LCD display | ■ | |
| Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | ■ | |
| Multi-tariff | 4 tariff rates, 14 time interval by day | 4 tariff rates, 14 time interval by day | □F |
Technical Parameters
| Type | ADL100-EY | |
|
Technical Parameters
|
Index
|
|
|
Reference frequency
|
50Hz
|
|
|
Consumption
|
<4VA(Each phase)
|
|
|
Current
|
Input current | 10(60)A |
| Starting current | 0.004 Ib | |
| Consumption | <4VA | |
|
Measurement performance
|
Accuracy of measuring | Class 1 |
|
Clock accuracy
|
≤0.5s/d | |
| Active pulse | Pulse width | 80ms±20ms |
| Pulse constant | 1600imp/kWh | |
| Communication | Interface | RS485 |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU | |
| Dimensions(Length × Width × Height) | 72mm×88mm×70mm | |
| Temperature range | Work temperature | -25℃~55℃ |
| Storage Temperature | -40℃~70℃ | |
| Relative humidity | ≤95%(No condensation) | |
| Altitude | <2000m | |
