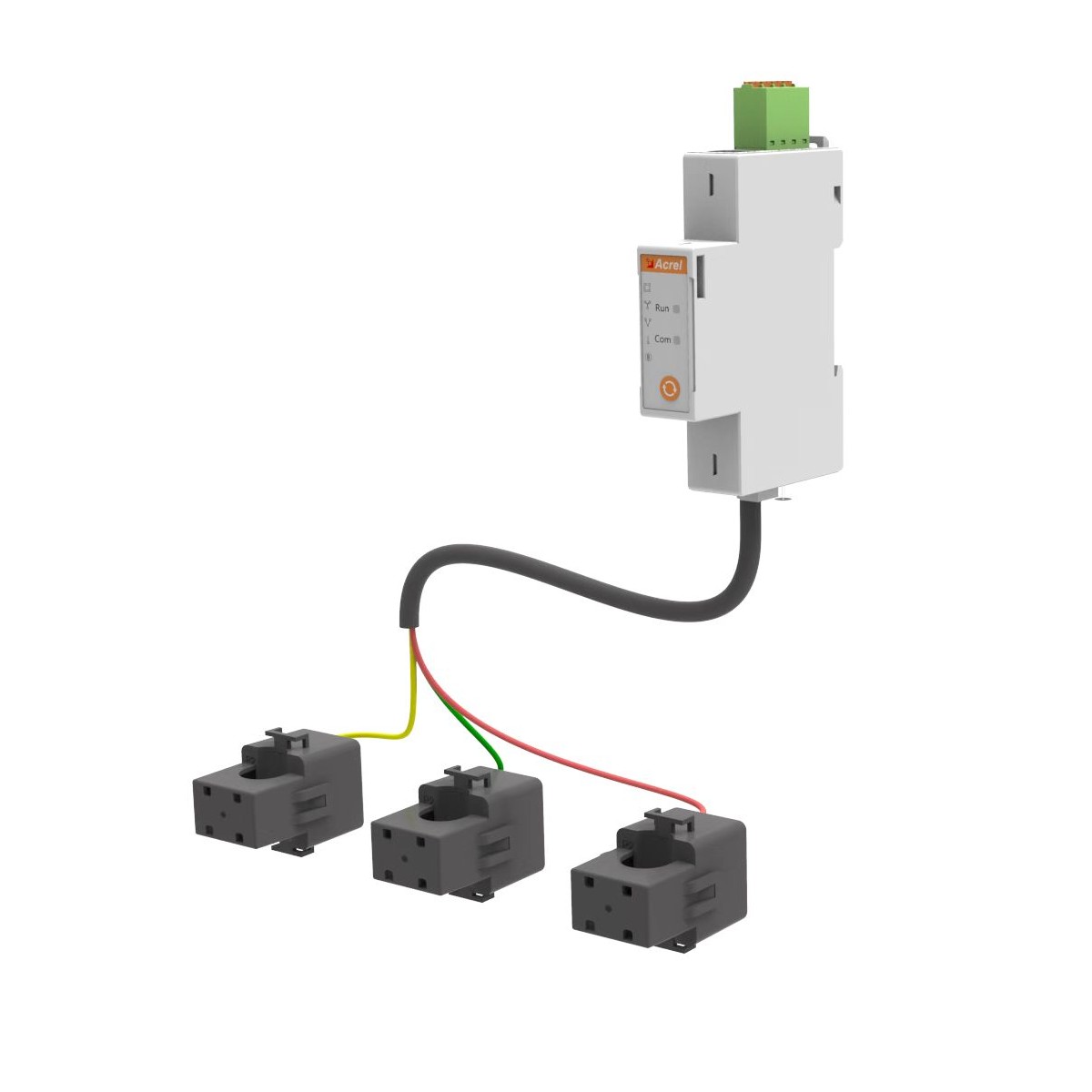

Acrel ADL400W Three Phase CT Operated Din Rail Energy Meter WiFi-Halow Communication

General

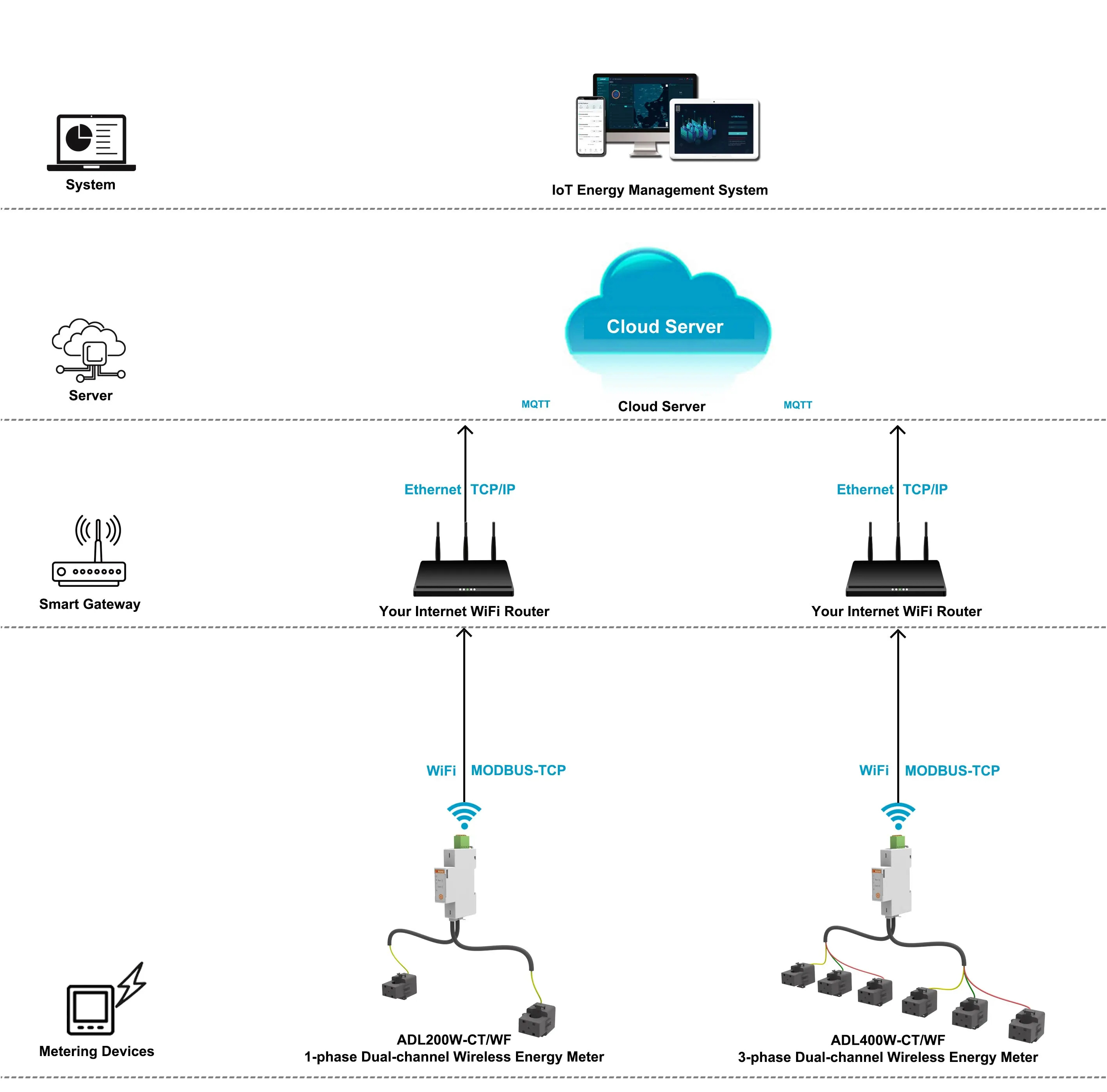

ADL200W ADL400W Series DIN-Rail Mounted Multifunctional and Dual Circuits Electric Energy Meter With External Current Transformer is an intelligent instrument mainly designed for new energy power generation systems such as photovoltaic grid-connected system, micro inverter system, energy storage system, AC coupling system, etc. The product has the advantages of high precision, small volume, high respondent speed and convenient installation. It can monitor and measure real-time power and other power parameters, support protocols such as Modbus-TCP and http, and communicate with inverters or energy management systems (EMS) via Wi-Fi HaLow communication to achieve functions such as anti-reverse flow, regulating power generation, and battery charging and discharging. It can be bidirectionally measured to achieve energy management for household distributed photovoltaic systems.

Type Selection

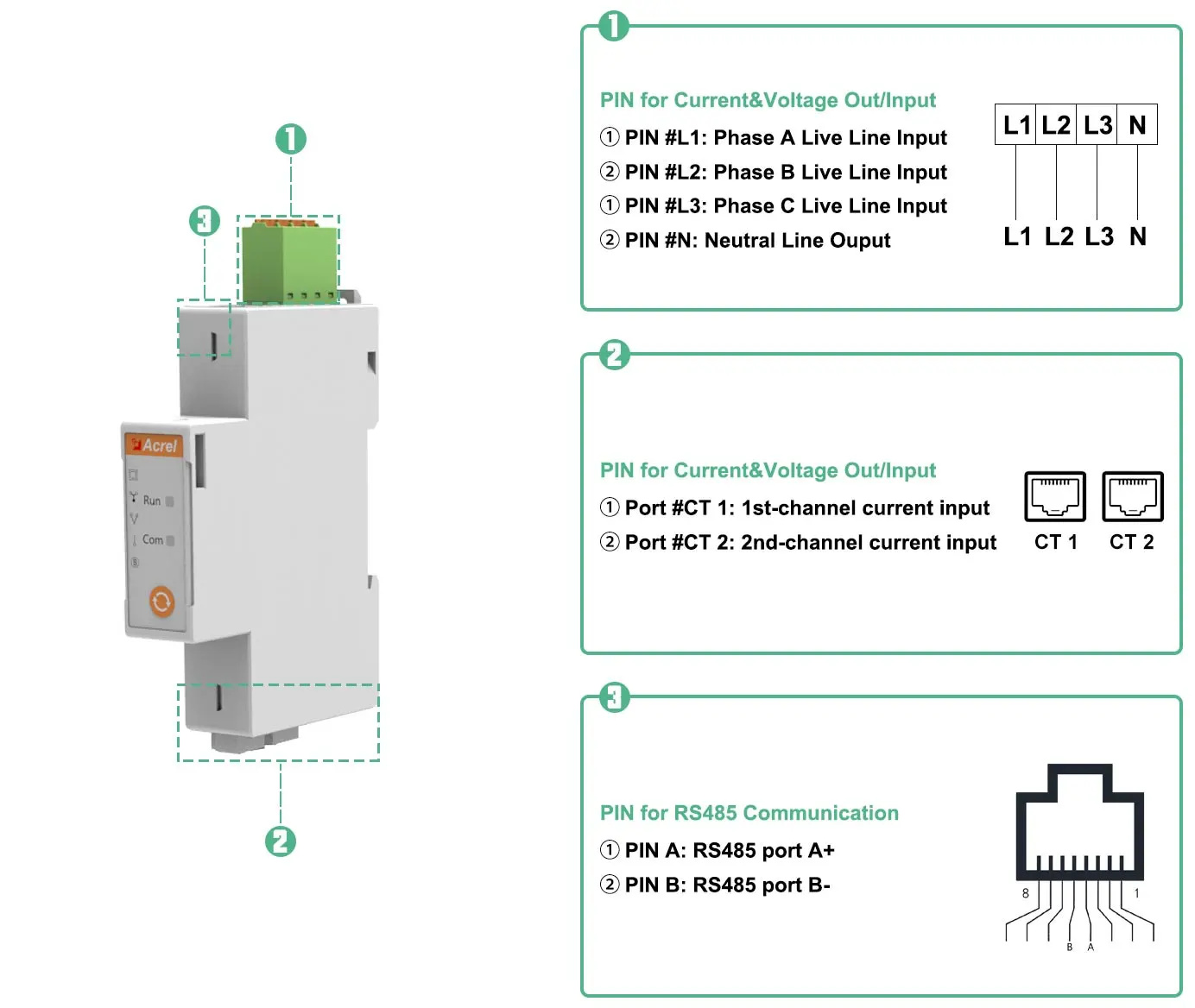

Wiring

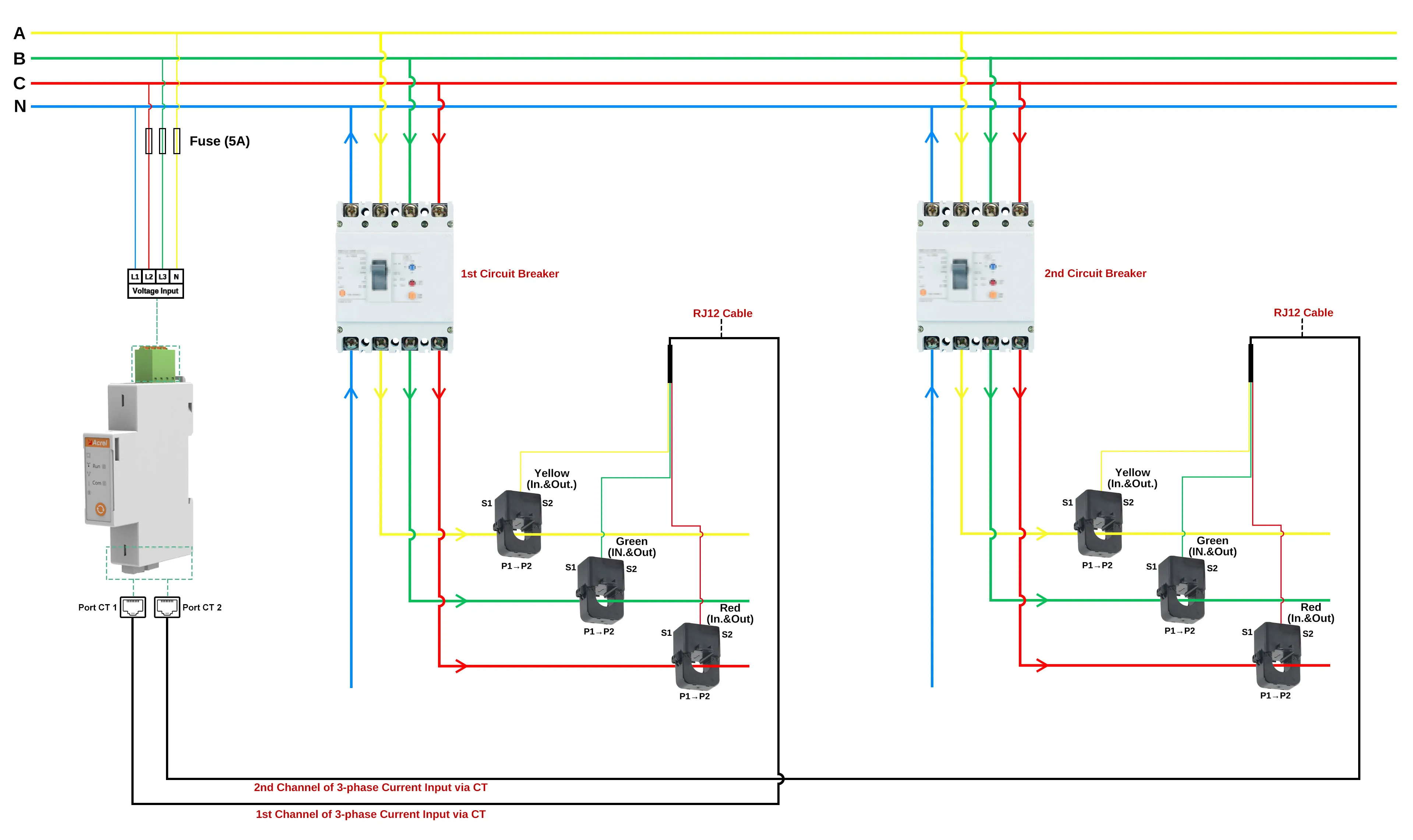

ADL200W ADL400W Diagram of Voltage and Current Connection

Outline and Dimension

D10 specification transformer

D16 specification transformer

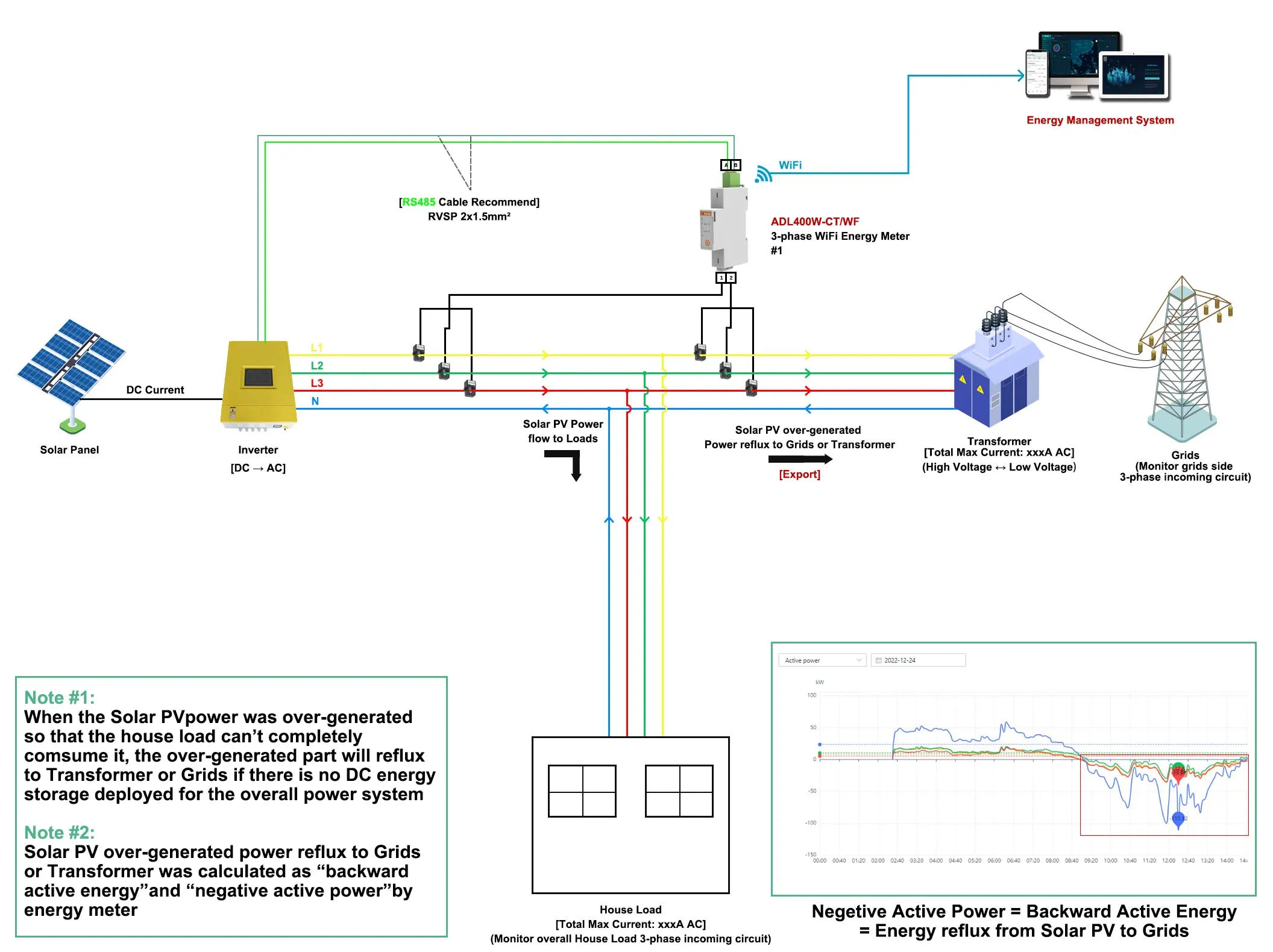

Application for Balcony PV System

Previous: Acrel ADL200W Single Phase CT Operated Din Rail Energy Meter WiFi-Halow Communication

Next: Acrel AWT100-AP/WFH WiFi-Halow Data Converter

Acrel ADL400W Three Phase CT Operated Din Rail Energy Meter WiFi-Halow Communication

Functions

Function	Descriptions
Electric energy metering	Active energy metering (forward and reverse)
	Reactive energy metering (forward and reverse)
	Split-phase energy

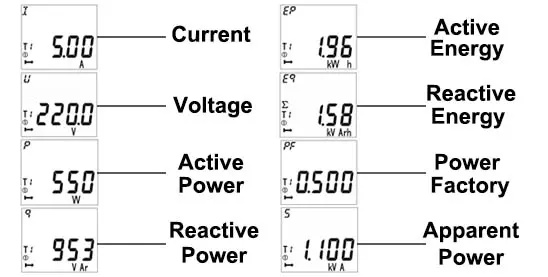

Electric quantity measurement	U, I
Electric quantity measurement	P, Q, S, PF, F

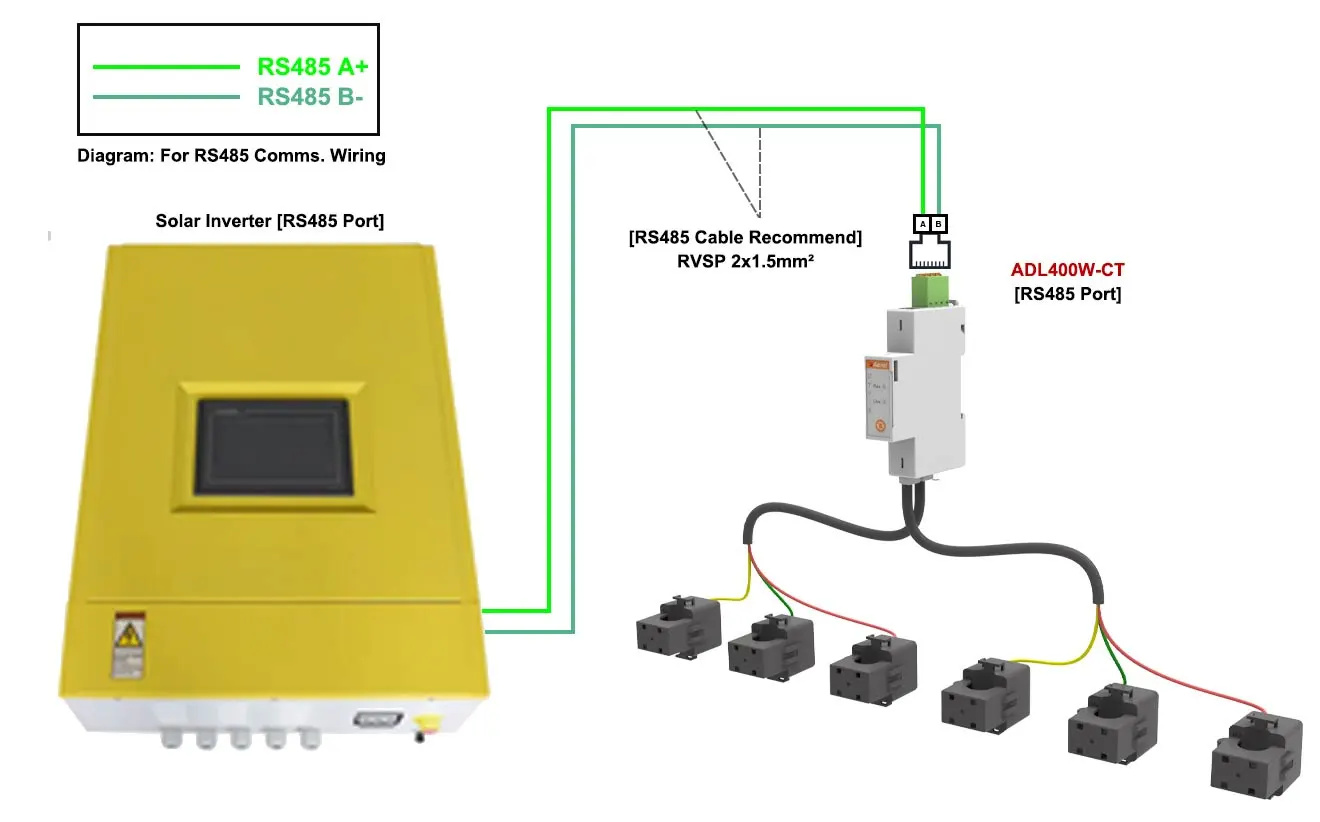

Communication	RS485 、Wi-Fi HaLow

Technical Parameters

Item				Performance Parameters
Model Series				ADL200W	ADL400W
Measurement	Wiring			Single-phase	Three-phase four-wire
	Voltage		Rated voltage	230V	3×230/400V
			Input Range	0.8Unom ~ 1.2Unom
			Overload	1.2 times rating (continuous)2 times the rating for 1 second
			Power consumption	<2w, <10VA
			Accuracy class	Error ±0.5%
	Current		Minimum current	0.3A
			Transitional current(Itr)	1.5A
			Basic current(Ib)	30A
			Maxinum current(Imax)	D10：Imax = 80AD16：Imax = 120A
			Power consumption	<1W, <1VA
			Accuracy class	Error ±0.5%
	Power			Active, reactive, apparent power, error ±1.0℅
	Grid frequency			50Hz, error ±0.5%
	Response rate			50ms (voltage, current, power)
	Installation category			CAT III
	overvoltage level			OVC III
Metering	Active electric energy			Class 1 or B
electromagnetic compatibility				E2
Security		Power frequency withstand voltage		Between communication and signal input, AC3kV 1min
		Insulation resistance		Input and output terminals to casing >100MΩ
Communication		RS485 interface		Modbus RTU protocol; addr:1~ 247;Baudrate:1200bps-38400bps
		Wi-Fi HaLow		Operating frequency band:730MHz~950MHz
Environment		Operating temperature range		-20℃~+55℃
		Operating temperature range		-20℃~+70℃
		Storage temperature		-20℃~+70℃
		Relative humidity		≤95% (without condensation)”Not suitable for damp environments”
		Altitude		≤2000m
IP rating				IP20 on terminal strip without protective housing and IP51 in protective housing, per IEC 60529
Pollution Degree				II
UC Degree				III
Installation environment				Indoor use
Protect Degree				Class II (Double Insulation)
usage environment				Cabinet mounted(The outer shell cannot be touched)

usage environment

Transformer Safetycharacteristics

Insulation resistance: greater than 1000 MΩ under normal conditions；Electric strength resistance: It can withstand 4000V, 50Hz power frequency for 1 minute；Flame retardancy: Conforms to UL94-V0 level；

reference standard

EN IEC 61010-1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements

EN IEC 61010-2-030:2010 Safety requirements for

electrical equipment for measurement, control, and

laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits

EN IEC 61326-1:2021 Electrical equipment for measurement, control, and laboratory use - EMC requirements – Part 1: General requirements

EN IEC 61326-2-1:2021 Electrical equipment for

measurement, control, and laboratory use - EMC

requirements – Part 2-1: Particular requirements for

electromagnetic compatibility testing for electrical

equipment for measurement, control, and laboratory use

EN 50470-3 Electricity metering equipment (a.c.) - Part 3: Particular requirements - Static meters for active energy
