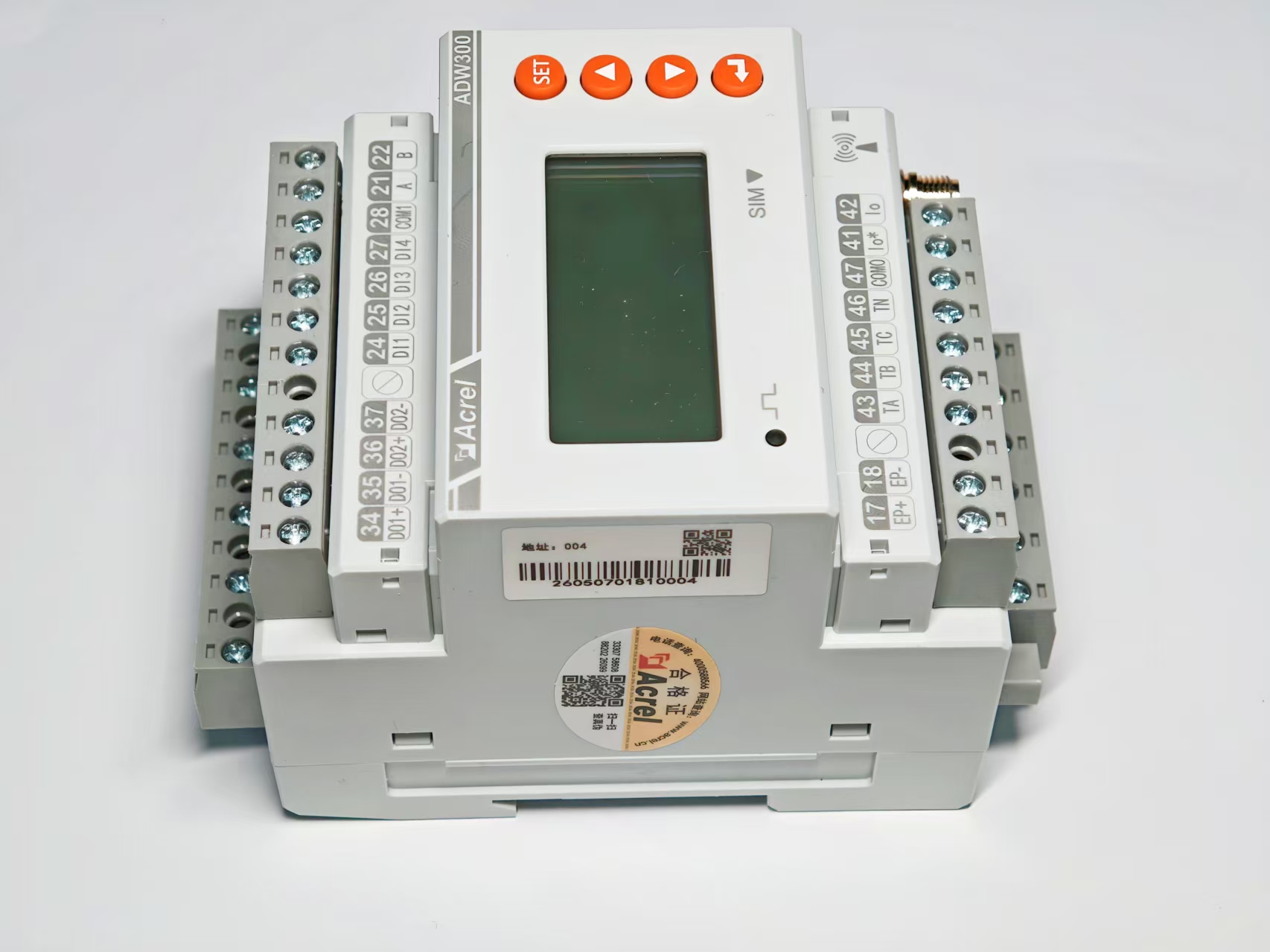

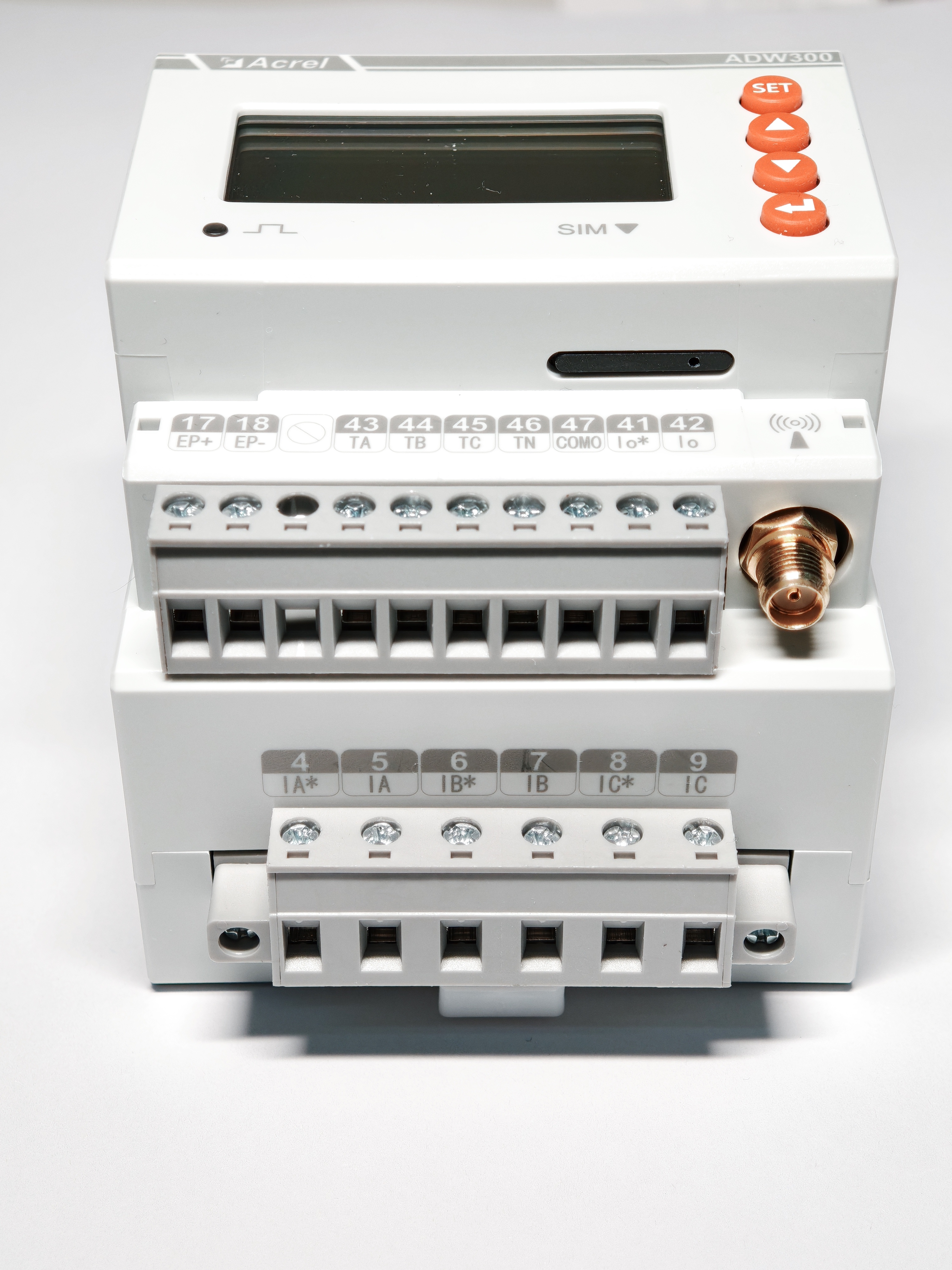

Acrel ADW300A Wireless IoT Energy Meter

Acrel ADW300A Wireless IoT Energy Meter

● Three-Phase Energy Monitoring System

● Rated voltage: up to 800V

● Wireless communication

● Phase sequence automatic diagnosis

● 15-Minute Energy Freeze

● Bluetooth local debugging

Send email to us Product Manual

Product Detail

Technical Parameters

Product Tags

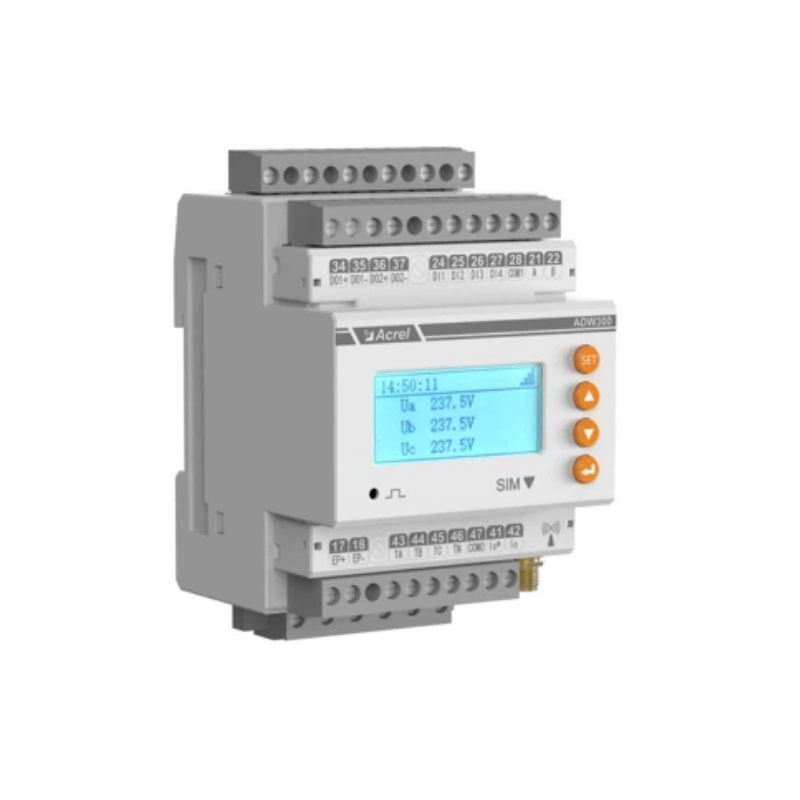

Acrel ADW300A Wireless IoT Energy Meter

General

AcrelADW300A wireless meter is primarily designed for measuring three-phase active power in low-voltage networks, featuring compact size, high accuracy, and comprehensive functionality. It supports multiple communication protocols including RS485, LoRa/LoRaWAN, 4G, and Wi-Fi, and includes an external current sampling mode for transformers, facilitating installation across various applications. The device can be flexibly installed within distribution boxes to meet requirements such as sub-metering of power consumption across different zones and loads, operation and maintenance monitoring, or overall power management.

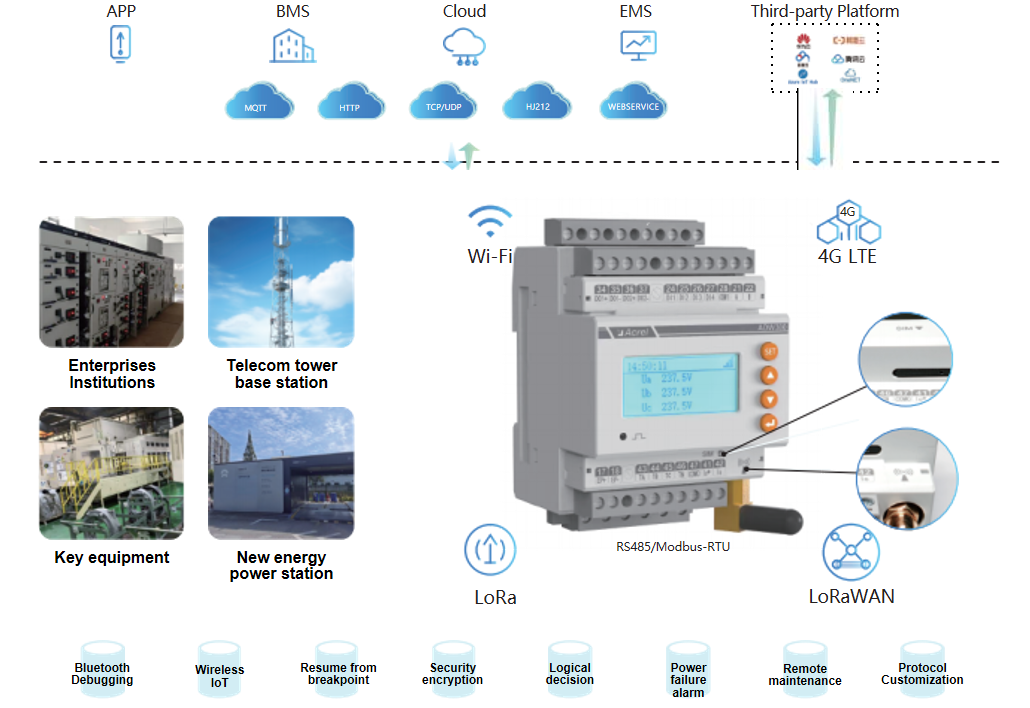

Application Scenario

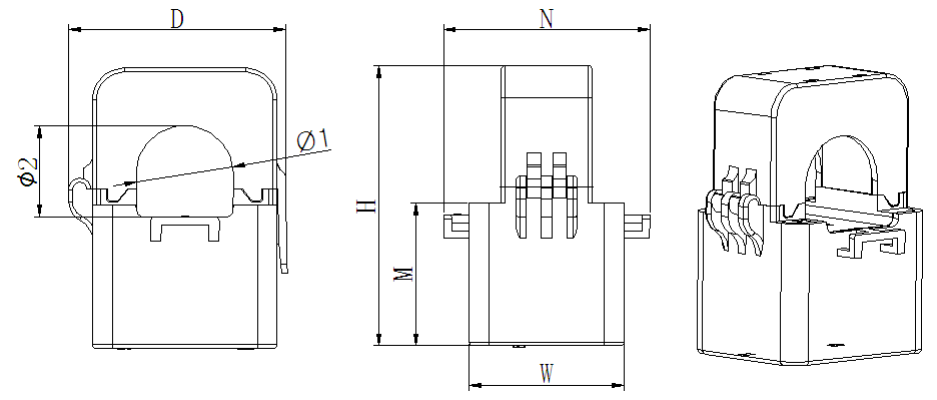

ADW300A Current Transformer

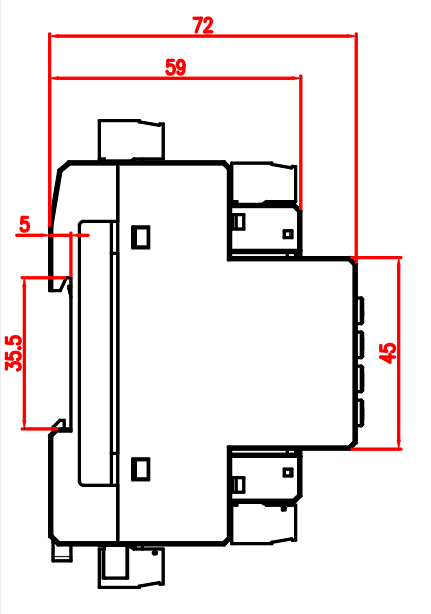

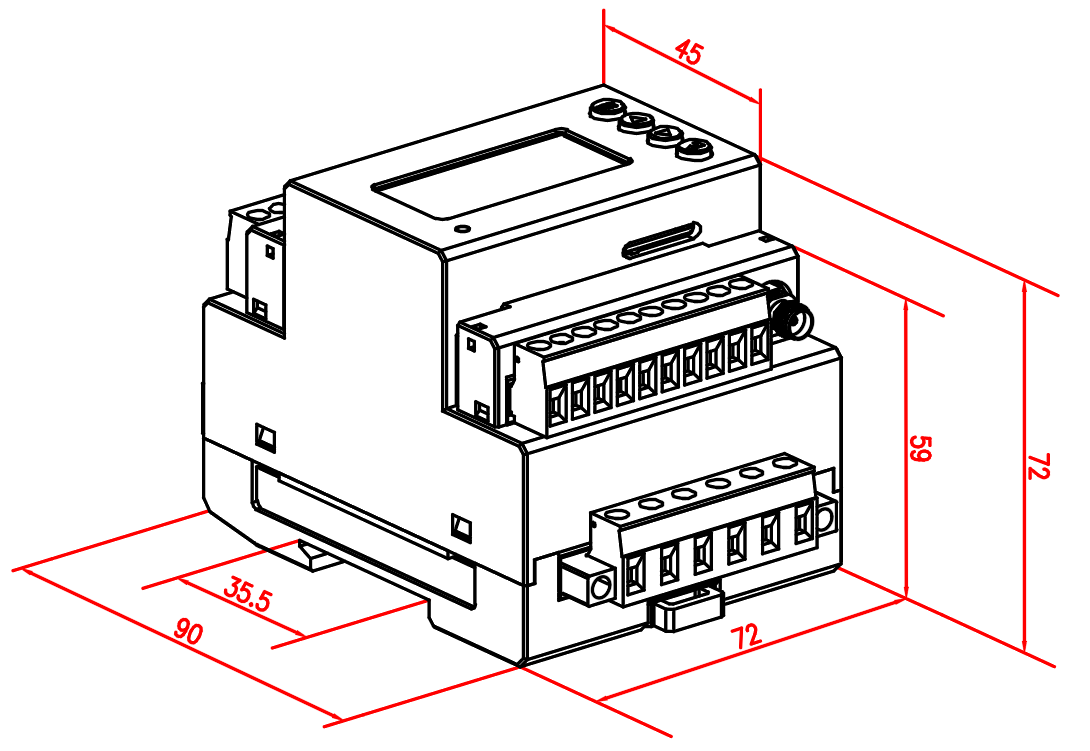

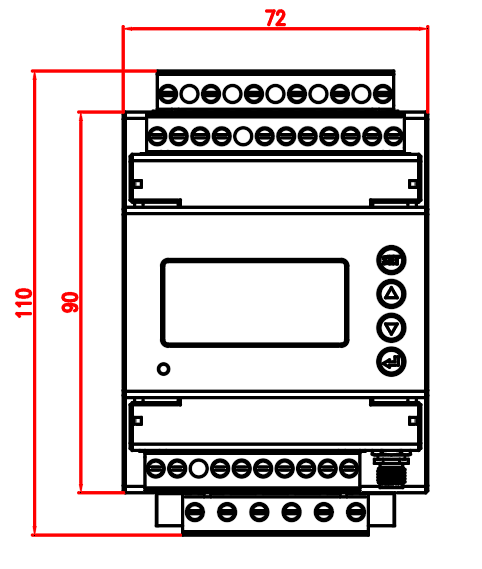

Outline and Dimension

Previous: Acrel ALP220-EF Low-voltage Earth Fault Relay

Next: Acrel ACCU-100M Microgrid Coordination Controller

Acrel ADW300A Wireless IoT Energy Meter

Functions

function	function declaration
display mode	LCD (Dot Matrix)
Electricity Metering	Active power measurement (forward and reverse), reactive power measurement (inductive, capacitive, four-quadrant reactive power).8 time schedules, 14 time zones, 14 daily periods, and 8 types of time-of-use electricity rates.Supports historical electricity consumption data from December (including electricity at all tariff rates).
History Freeze	Supports minute-level freezing, daily freezing, and monthly freezing
electrical measurement	Voltage, Current, Power Factor, Frequency, Active Power, Reactive Power, Apparent Power
Extreme Value Record	Supports maximum values and occurrence times for the past three months (including peak and minimum values of three-phase voltage, current, power, and combined phase power)
Harmonic Function	Total harmonic content, component harmonic content (orders 2–63)
Phase Sequence Diagnosis	Supports wiring diagnosis, phase sequence correction, and current polarity adjustment
pulse output	Active energy Pulse Output
Three-phase imbalance degree	Voltage and current imbalance
Temperature Measurement Function	Four-channel temperature measurement system (including options A, B, C, and N; optional T available)
DI/DO	4DI, 2DO (with optional K);
residual current	1-channel residual current measurement (Optional L)
LED indicate	Pulse light indicator
Power Failure Reporting	4G Wi-Fi with U (optional)
External Transformer	External open-type current transformer (CT)
Electrical Parameter Alarm	Undervoltage, overvoltage, undercurrent, overcurrent, underload, overload, etc.
communication	Bluetooth (Wireless Solution)
	RS485 Interface
	Wireless transmission (optional LR): 470,868
	4G Wireless Transmission (4G optional)
	Wi-Fi Wireless Transmission (Optional: WF)
	LoraWAN wireless transmission (with optional LW915 (AU915), LW868 (EU868), or LW923)

Technical Parameters

Voltage Input	rated voltage		3×57.7/100V，3×220/380V，3×230/400V，3×277/480V，3×380/660V，3×400/690，3×462/800V ，3×100V, 3×380V，3×480V，3×660V，3×690，3×800V ，
	reference frequency		50Hz or 60Hz
	power dissipation		Each phase <0.5 VA
Current input	input currenton		ADW300A：0.01-0.05(6)AADW300A-CT：0.01-0.05(6)A（D10）、0.2-1(100)A（D16）、0.8-4(400)A（D24）、1.2-6(600)A（D36）
	starting current		1‰ Ib (Grade C), 4‰ Ib (Grade B)
	power consumption per Phase		Each phase <1 VA
Auxiliary power supply	supply voltage		AC 85-265V，AC 110-415V，DC9-30V，
	total power consumption		<2W
Measurement Performance	compliance standard		GB/T 17215.321-2021，GB/T 17215.211-2021
	active energy accuracy	ADW300A	Class C (GB/T 17215.321-2021)
		ADW300A-CT	Grade B (GB/T 17215.321-2021)
	temperature precision		±2℃
impulse	pulse Width		80±20ms
	Pulse Constant		10000imp/kWh , 400imp/kWh-CT：（10000imp/kWh（D10）、400imp/kWh（D16）、100imp/kWh（D24）、60imp/kWh（D36））
communication	wireless		Wireless transmission at 470 MHz with a range of 1 km in open areas; supports 4G and Wi-Fi.
	Interface		RS485(A、B)
	Cable Type		STP
	protocol		MODBUS-RTU、DL/T 645-07
