Acrel APD Series Partial Discharge Detector
Acrel APD Series Partial Discharge Detector
General
Acrel APD series medium-voltage switchgear partial discharge detector device detects the partial discharge signal of the electrical equipment during operation through ultra-high frequency sensors (UHF), ground wave sensors (TEV) and ultrasonic sensors (AE), so as to judge whether there are hidden insulation hazards inside the high-voltage electrical equipment, give early warning, and ensure the safe and reliable operation of the power system.

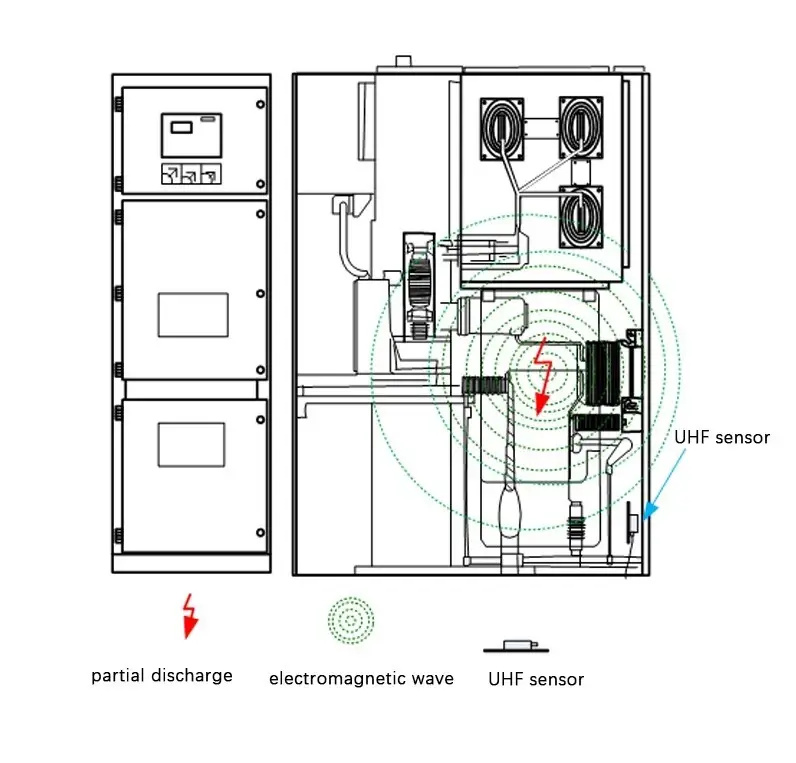

Working Principle
Outline and Dimension

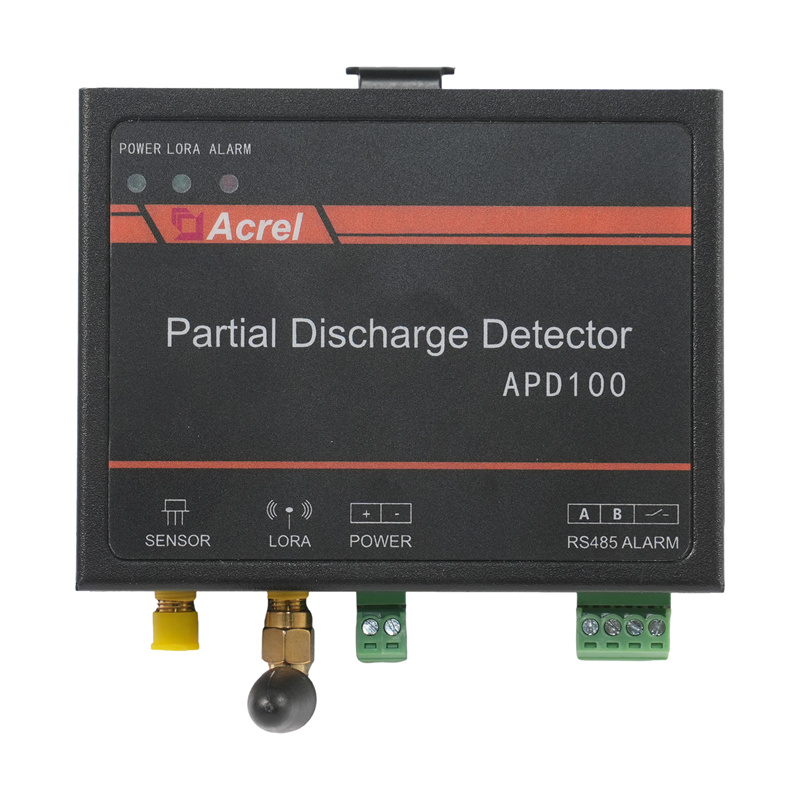

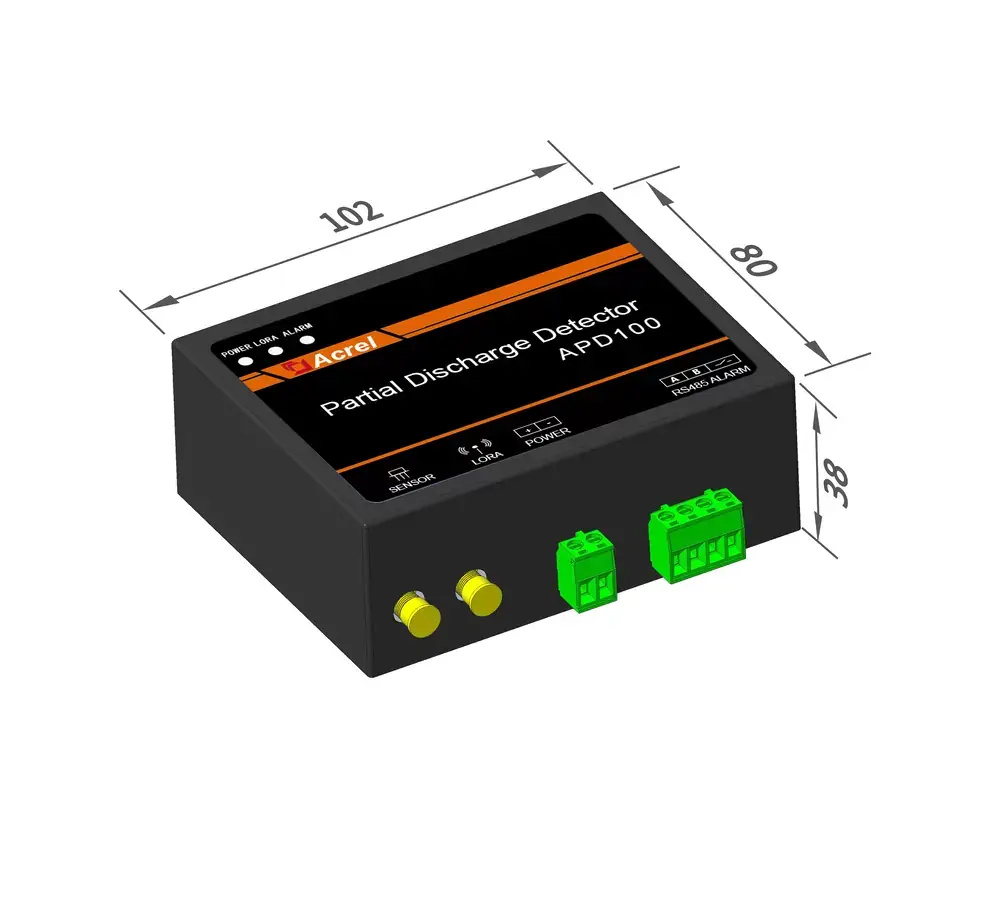

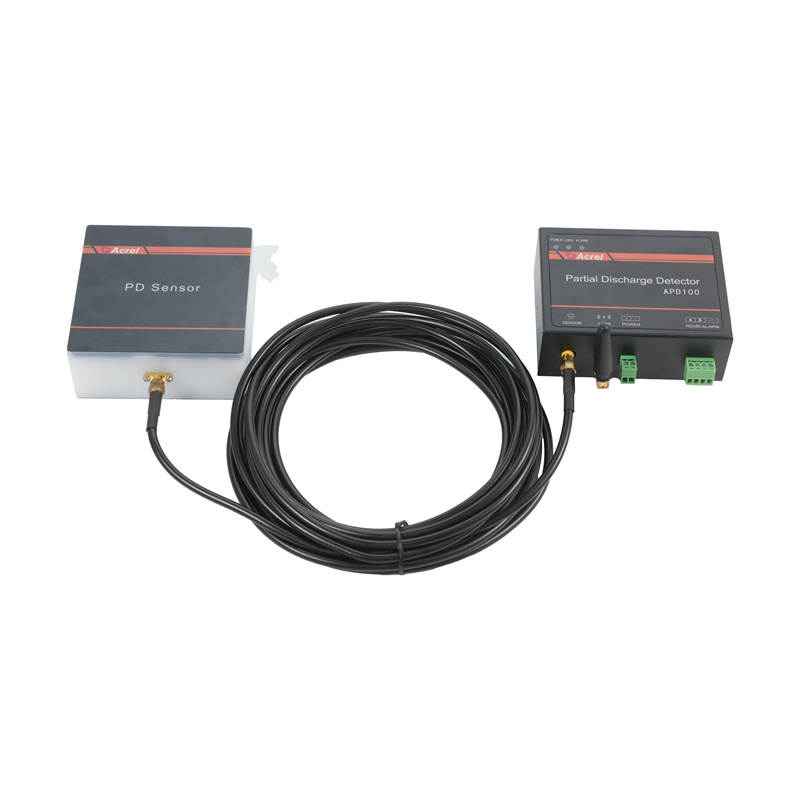

APD100

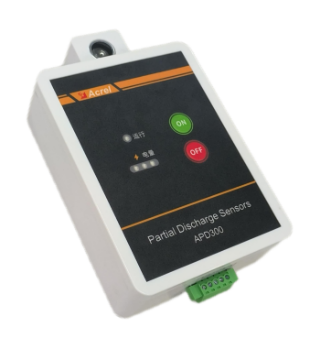

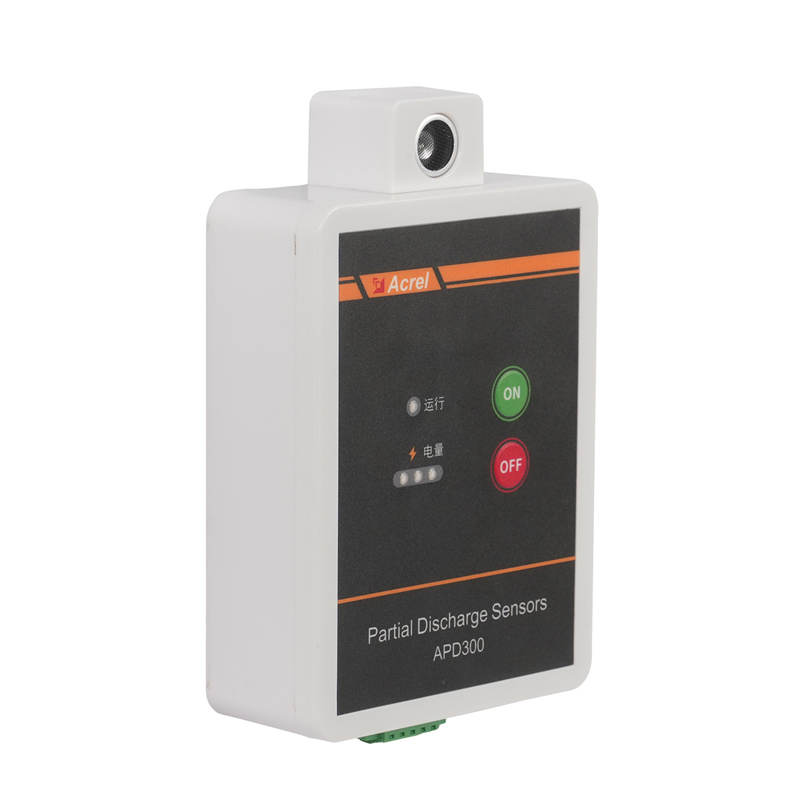

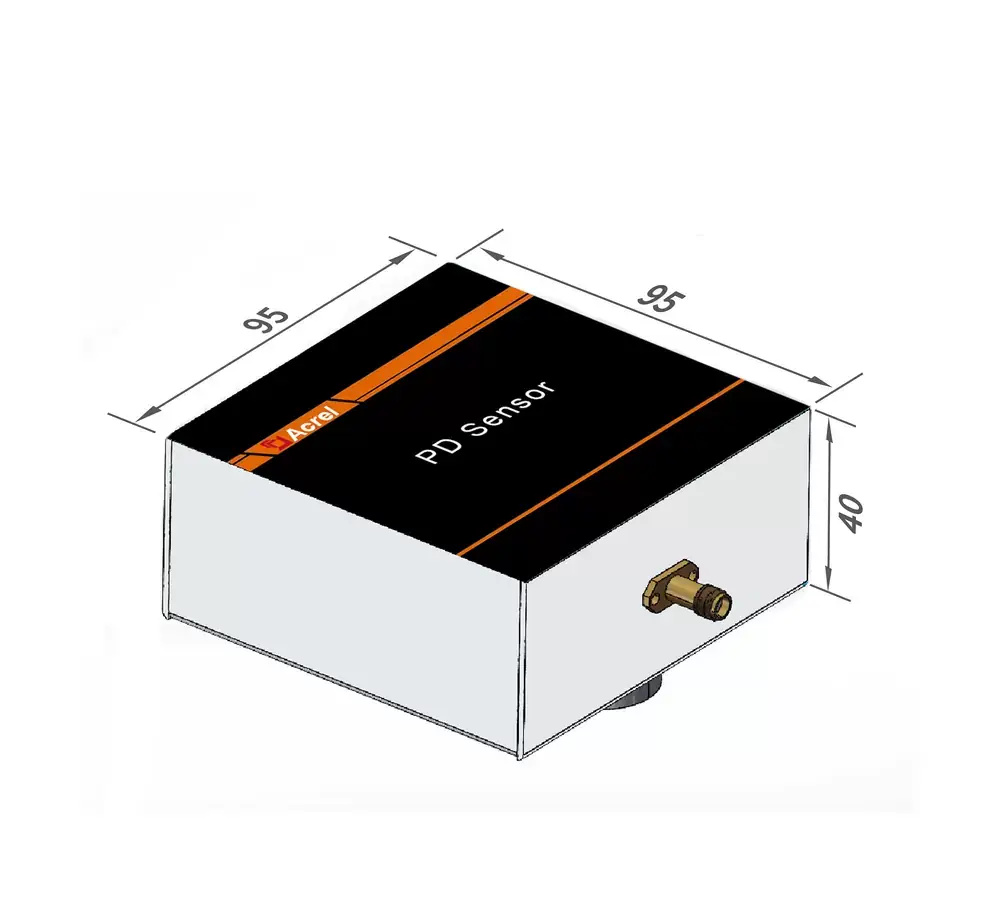

APD300-L

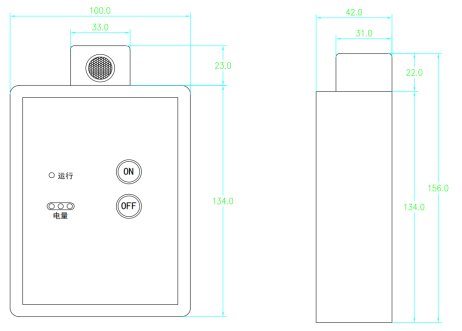

APD300-W
Wiring
APD100

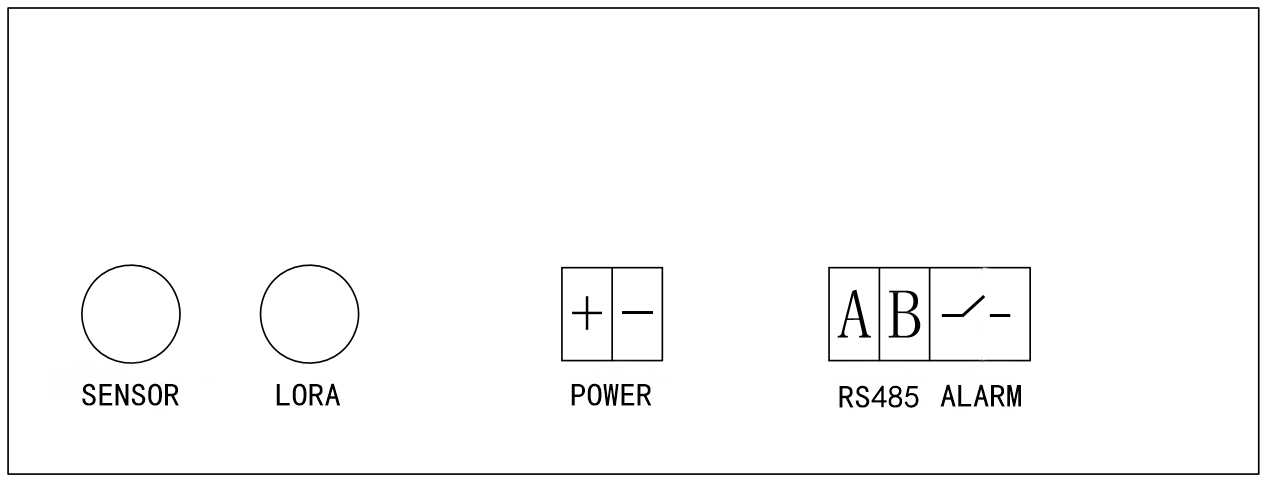

APD100 terminal diagram
APD300-L

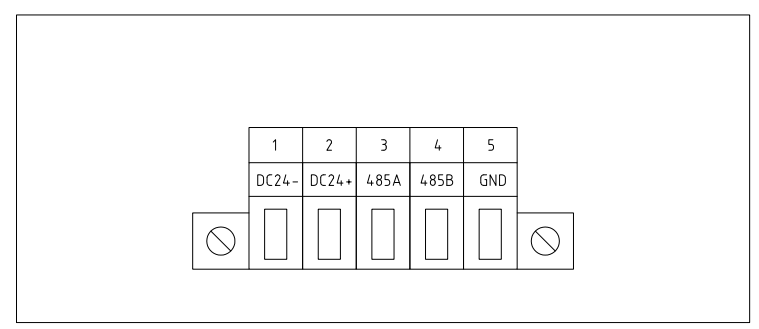

APD300-L terminal diagram
APD300-W

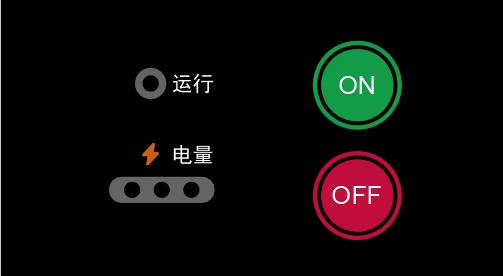

APD300-W wireless indicator
ATC600 terminal diagram

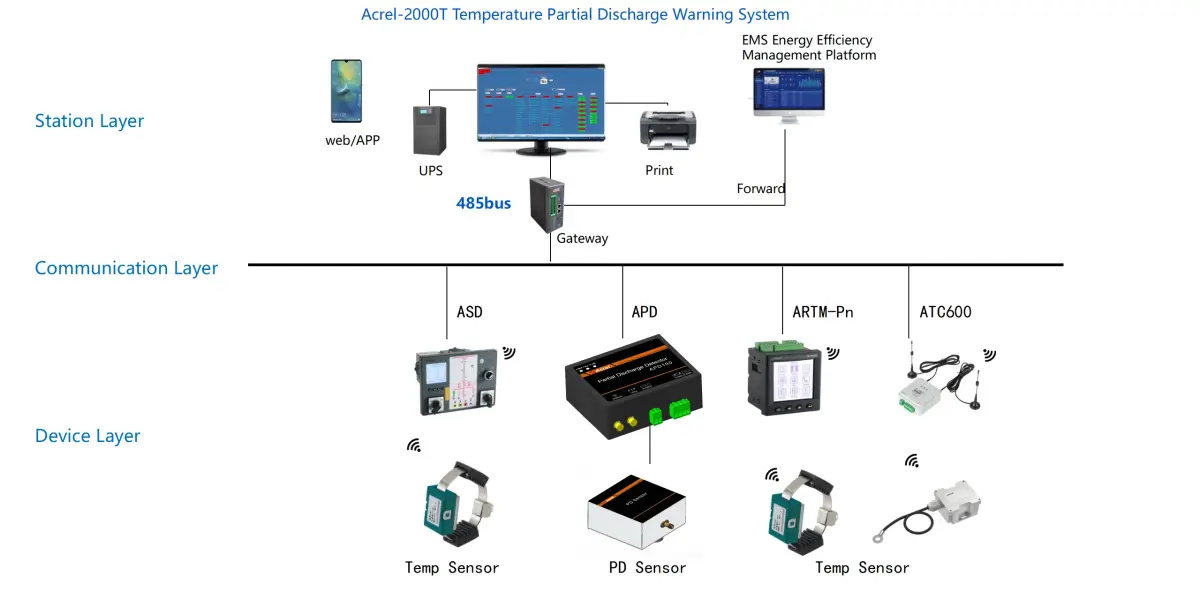

Typical Network

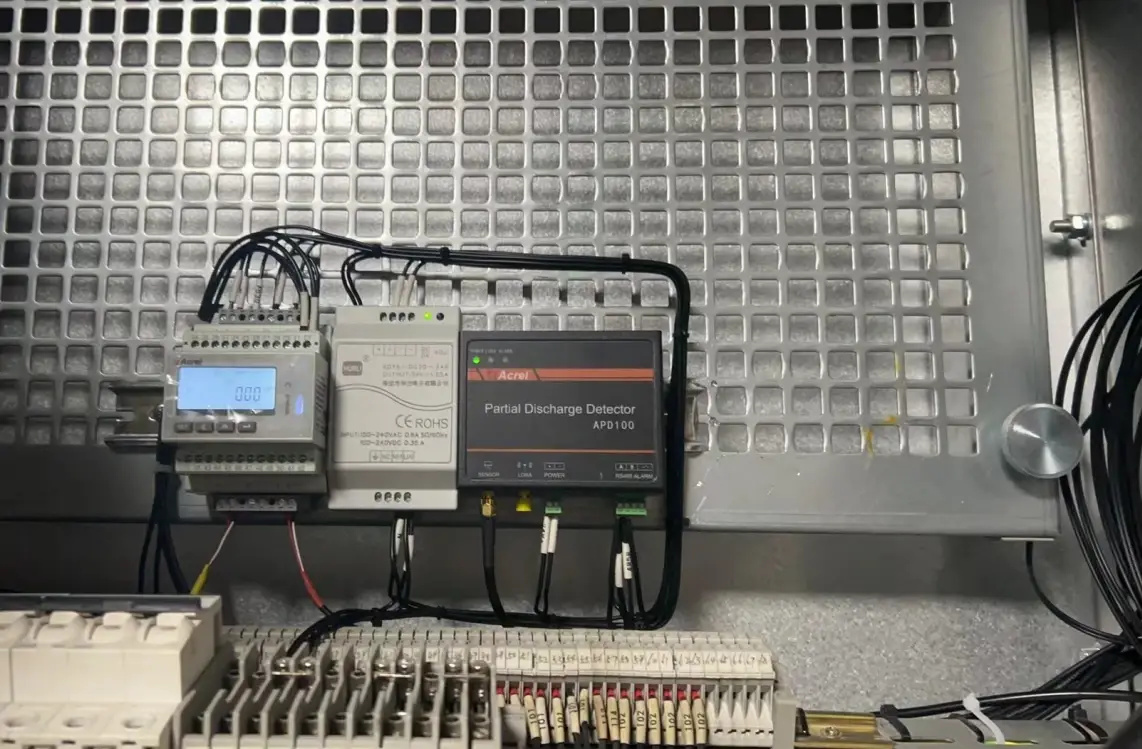

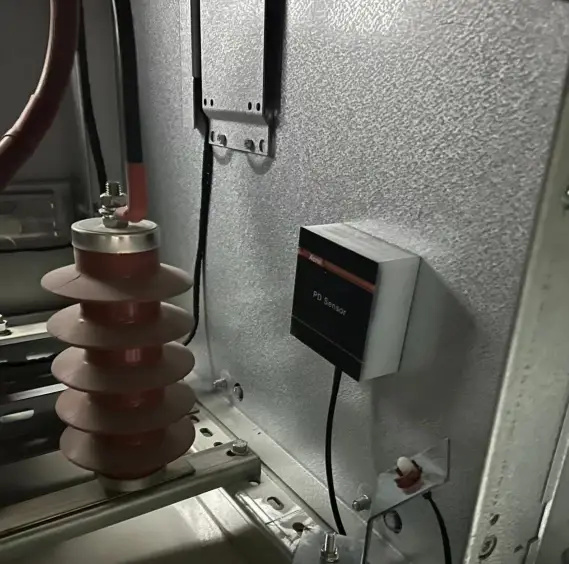

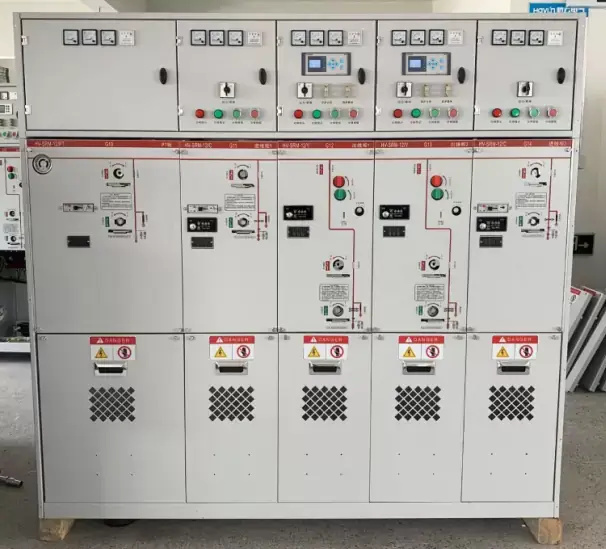

On-site Picture
Application
Acrel APD Series Partial Discharge Detector
Technical Parameter
|
Type Parameters |
APD100 |
|
|
Number of channels |
One |
|
|
Measuring range |
-60dBm~+10dBm |
|
|
Measurement content |
Discharge amplitude and frequency |
|
|
Sampling |
1s |
|
|
Matching impedance |
50Ω |
|
|
Power supply |
DC10~30V |
|
|
Power dissipation |
≤3W |
|
|
Communication |
RS485 * 1、LORA * 1 |
|
|
Baud rate |
2400、4800、9600、19200 （RS485） |
|
|
Communication protocol |
MODBUS-RTU（RS485） |
|
|
Relay output |
5A/AC250V，5A/DC30V 1 circuit normally open relay |
|
|
Installation |
35mm guide rail installation |
|
|
Working environment |
Temperature: -25 ℃~+70 ℃; Relative humidity ≤ 95% |
|
|
UHF sensor
|
Bandwidth |
300MHz~1600MHz |
|
Effective height |
≥10.5mm |
|
|
Interface |
SMA |
|
|
Connecting cables |
Coaxial cable |
|
|
Protective class |
IP65 |
|
|
Installation |
Magnetic |
|
|
Type Parameters |
APD300-L |
APD300-W |
||
|
Power |
DC 12-36V |
Battery |
||
|
Battery life |
– |
3-4years，replaceable (Model 2ER18505M) |
||
|
Communication |
RS485（MODBUS-RTU） |
LORA |
||
|
Sampling |
4s |
2h |
||
|
PD monitoring sensors |
AE
|
Measuring range |
0～60dBμV |
|
|
Resonant frequency |
40kHz±1kHz |
|||
|
TEV |
Measuring range |
0～60dBmV |
||
|
Bandwidth |
3MHz～100MHz |
|||
|
UHF |
Measuring range |
-70～10dBm |
||
|
Bandwidth |
300MHz～1500MHz |
|||
|
Average equivalent height |
≥10mm |
|||
|
Environment |
Noise measuring range |
30dB～130dB |
||
|
Temp measuring range |
-40℃～85℃ |
|||
|
Humidity measuring range |
0～100%RH |
|||
|
Working environment |
Temperature |
-40℃～85℃ |
||
|
Relative humidity |
≤95%RH |
|||
|
Size |
Terminal form factor |
135mm*100mm*42mm |
||
|
Installation |
Installation |
Magnetic |
||
