1. Platform overview
Acrel-2000M motor protection and monitoring system is a new generation motor monitoring system specially developed by our company according to the requirements of automatic and unattended motor monitoring system, summarizing the advanced experience of research and production at home and abroad. The system has the functions of protection, telemetry, remote signaling, remote pulse, remote adjustment, and remote control. It can realize the function of unmanned or few people on duty, and provides a new solution for the safe, economical and reliable operation of the monitoring system.
2. Platform composition
Acrel motor protection and monitoring system adopts a layered and distributed structure, and the entire monitoring system is physically divided into two layers: the station control layer and the interval layer. The station-level communication network adopts standard Ethernet and TCP/IP communication protocols, and the physical medium can be optical fiber, network cable, shielded twisted pair, etc. The system supports Modbus RTU, Modbus TCP, CDT, IEC60870-5-101, IEC60870-5-103, IEC60870-5-104 and other communication protocols.
3. Platform topology
4. Platform function

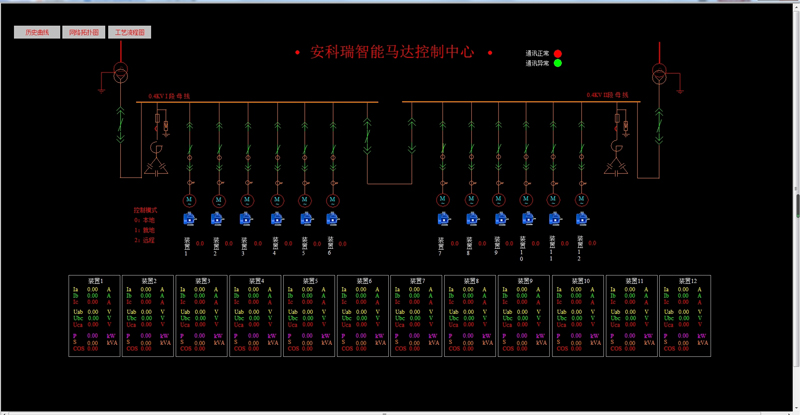

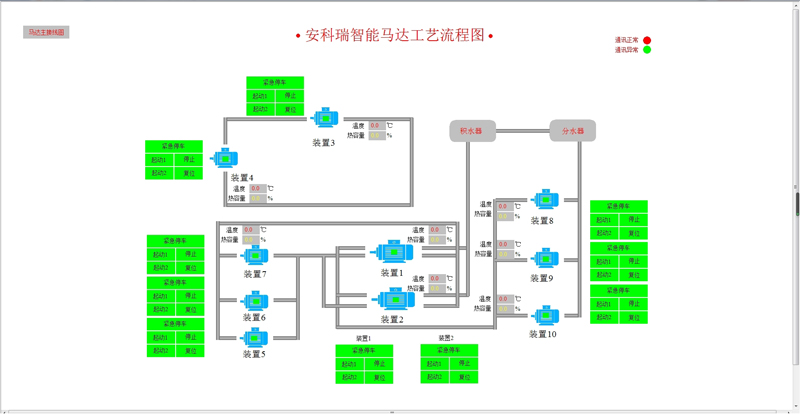

4.1 Real-time Monitoring
Acrel-2000M motor monitoring system has a friendly human-machine interface, which can visually display the running status of the motor in the form of a power distribution diagram, and monitor the electrical parameters such as PTC resistance, voltage, current, power, power factor, etc. of each motor in real time. Dynamic monitoring of various electrical parameters, related faults, alarms and other signals.

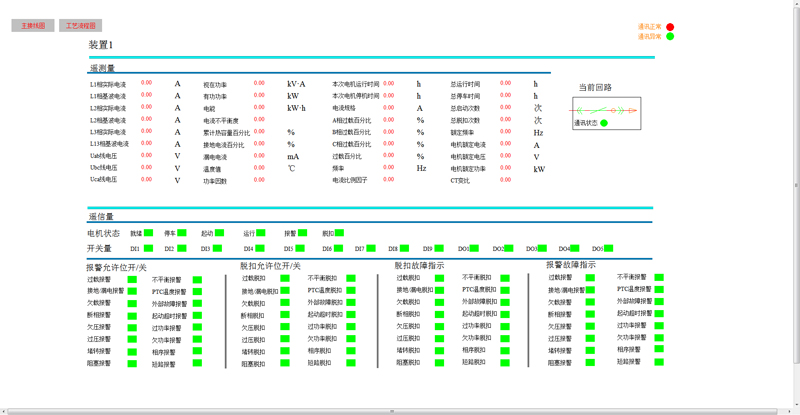

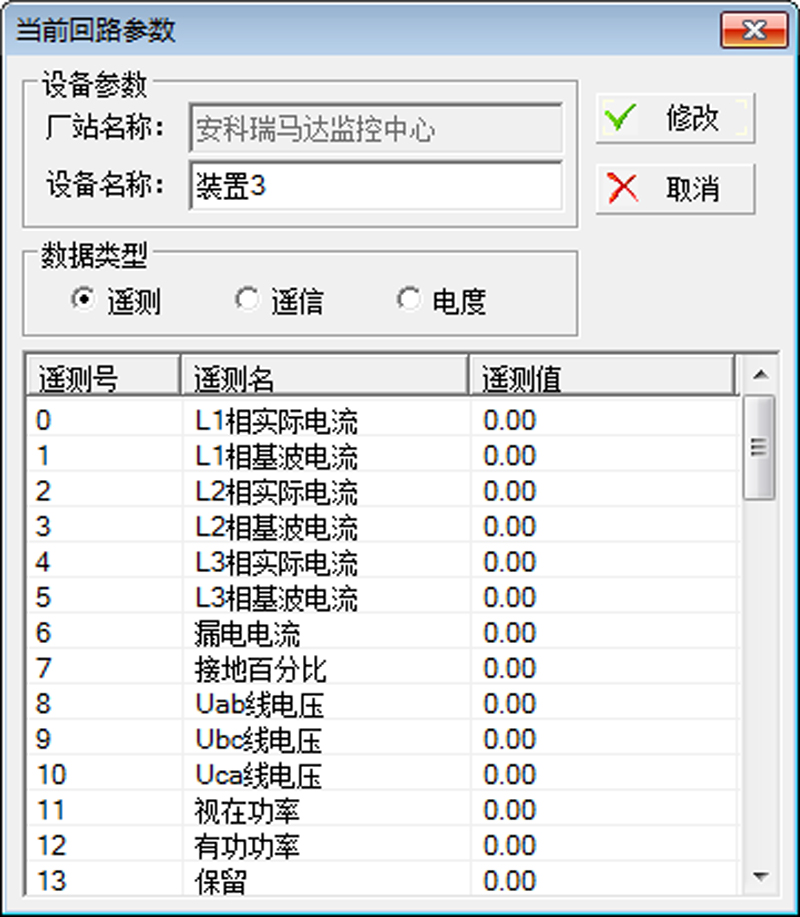

4.2 Electrical parameter query
Environmental monitoring In the main wiring diagram, you can directly view all electrical parameters of the circuit, including PTC resistance, three-phase current, three-phase voltage, three-phase total active power, total reactive power, total power factor, active energy, etc.

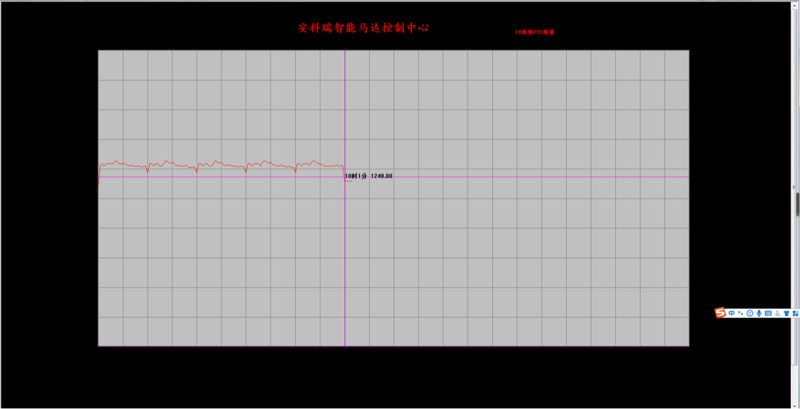

4.3 Curve query
Motor monitoring In the curve query interface, you can directly view various data history curves, including three-phase current, three-phase voltage, active power, reactive power, power factor, resistance value and other curves.

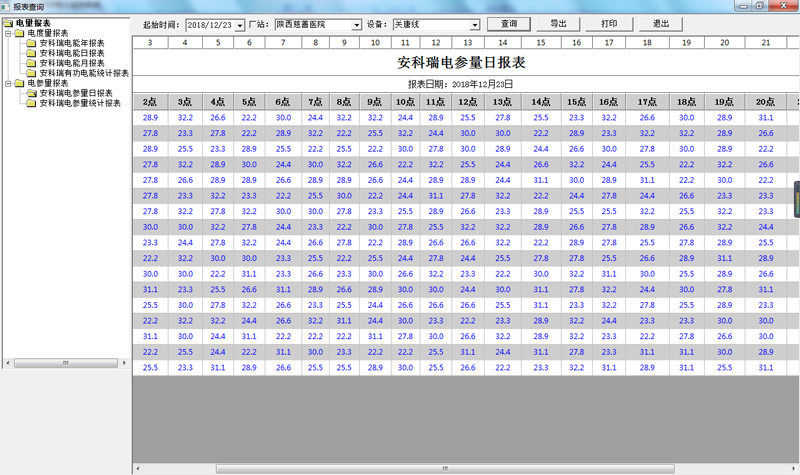

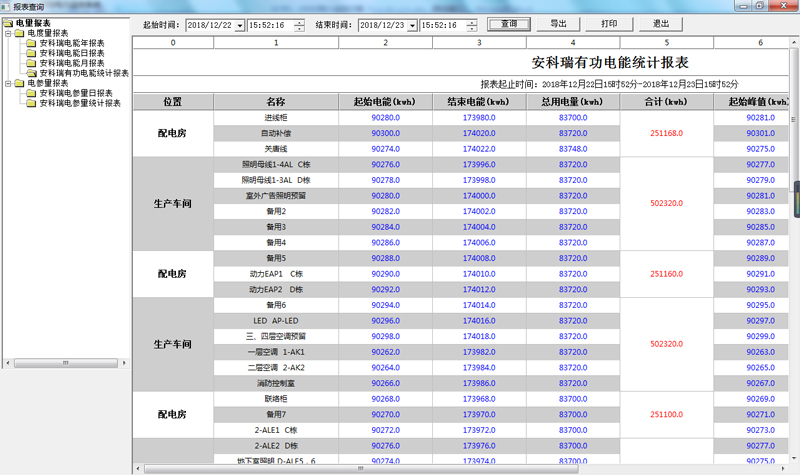

4.4 Operation Report
Query the operating parameters of each motor equipment at a specified time. The electrical parameter information displayed in the report should include: current of each phase, voltage of three phases, power factor, total active power, total reactive power, forward active energy, etc.
The system has the function of regular meter reading and summary statistics. Users can freely inquire about the power consumption of each motor in any time period since the normal operation of the system, that is, the statistical analysis report of the power consumption of the motor and the power consumption of each branch circuit.

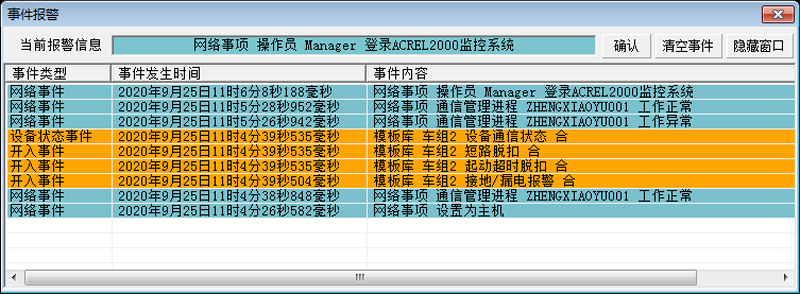

4.5 Real-time Alarm
Acrel-2000M motor monitoring system has real-time alarm function, the system can send alarms for events such as motor status, motor tripping status, alarm status, closing action and other events such as remote signal displacement.
1. Pop-up warning window.
2. The displacement flashes, and the color of the telemetry exceeding the limit changes.
3. Real-time voice function, the system can issue voice alarms for all events.
4. SMS alarm, you can send alarm information SMS to the designated mobile phone number (optional SMS cat is required).

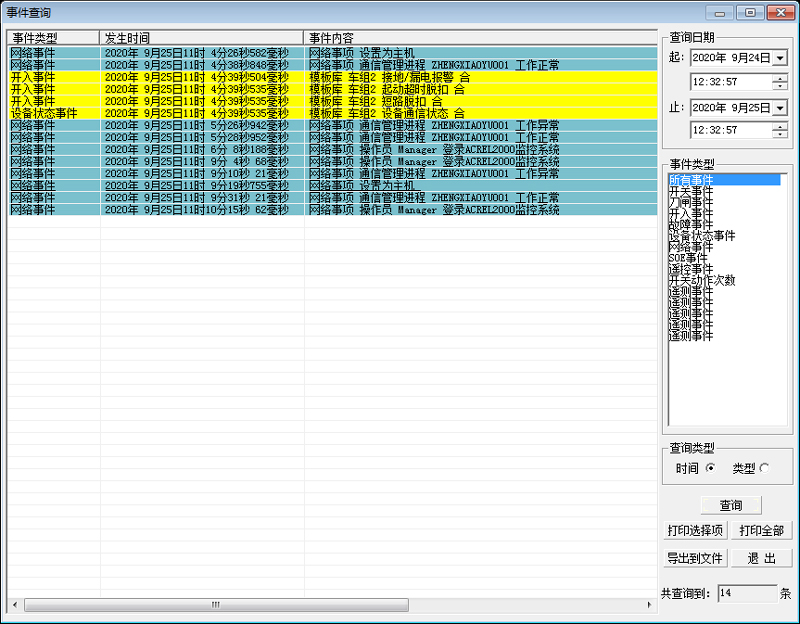

4.6 Historical event query
Acrel-2000M motor monitoring system can store and manage the remote signal displacement, motor status, and event records such as voltage, current, power, power factor exceeding the limit, etc., which is convenient for users to trace system events and history, query statistics , accident analysis.

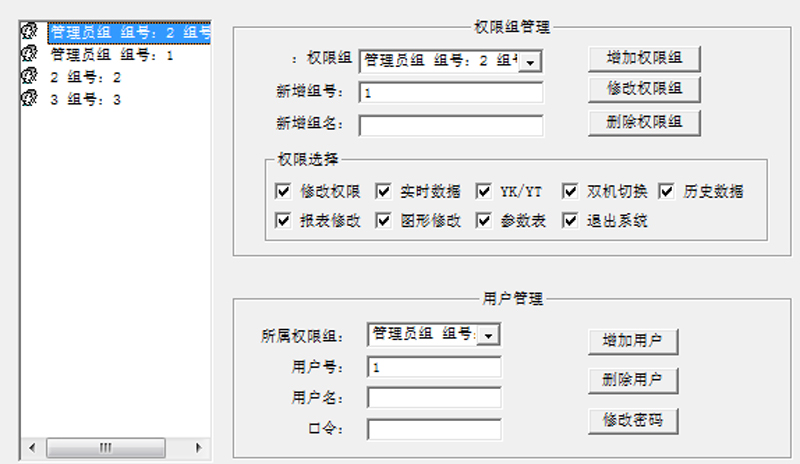

4.7User rights management
In order to ensure the safe and stable operation of the system, Acrel-2000M motor monitoring system has set up the user rights management function. Unauthorized operations (such as remote operations, database modifications, etc.) can be prevented through user rights management. The login name, password and operation authority of users at different levels can be defined to provide reliable security for system operation, maintenance and management.

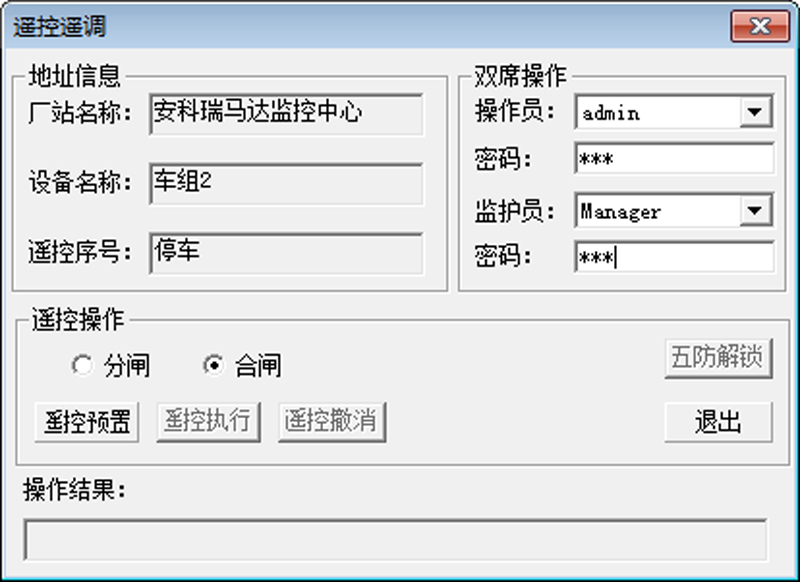

4.8 Remote control
Acrel-2000M motor monitoring system can remotely control the equipment in the entire power distribution system. For example, the maintenance personnel of the power distribution system can click the corresponding remote signal point of the circuit breaker on the main interface of the monitoring system to call up the remote control operation interface, and can execute the corresponding operation commands in the dispatching system or the station in time.
Remote Preset
Remote execution

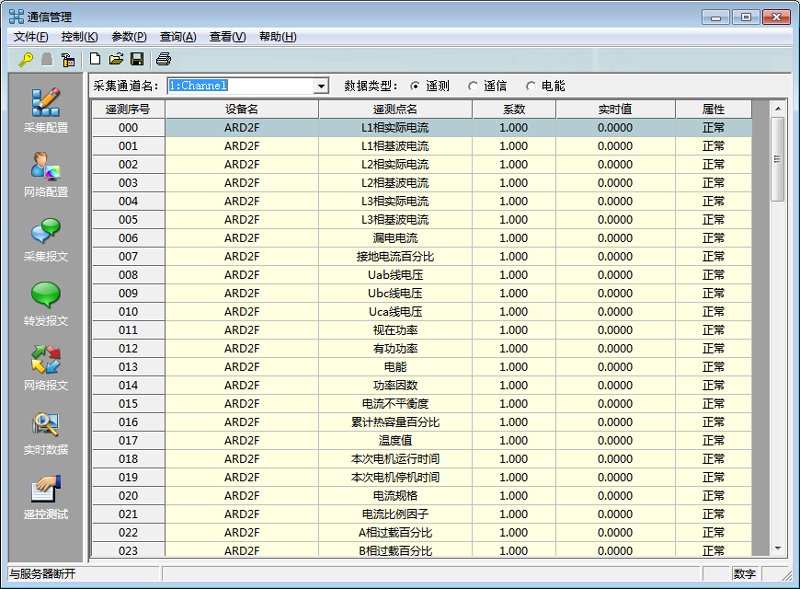

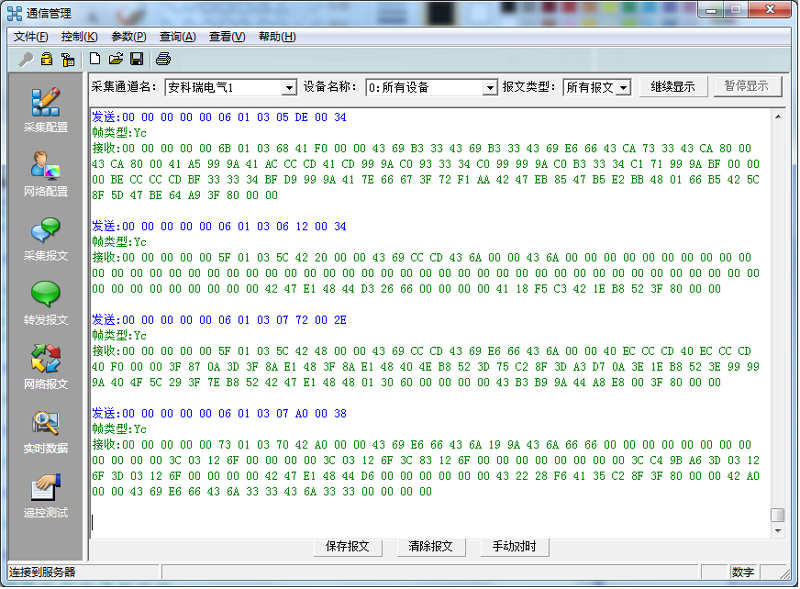

4.9 Communication Management
Acrel-2000M motor monitoring system can manage, control and monitor the real-time data of equipment communication within the entire monitoring system. You can view the communication and data packets of a device.
5. System hardware configuration
| Name | Model | Photo | Protective function |
| System configuration software | Acrel-2000M |  |
Acrel-2000M motor monitoring system has a friendly human-machine interface, which can visually display the running status of the motor in the form of a power distribution diagram, and monitor the electrical parameters such as PTC resistance, voltage, current, power, power factor, etc. of each motor in real time. Dynamic monitoring of various electrical parameters, related faults, alarms and other signals. |
| Intelligent communication management machine | ABOX data collection box |  |
Wall-mounted installation, support 2G/4G full Netcom, network port, optical fiber multiple communication modes. Support a variety of serial, network port communication protocols. The data is saved when the network is disconnected, and the resumable upload is supported. Support remote update and upgrade and real-time data monitoring, reducing on-site maintenance work. Power failure detection function, real-time detection of power outage status of the power station. High performance, support for uploading data on multiple platforms and different protocols. It supports XML/JSON format compression and upload, and provides security policies such as AES encryption and MD5 authentication. |
| Microcomputer protection device | AM6-X |  |
Phase-to-phase current quick-break protection, phase-to-phase time-limited current quick-break protection (with low-voltage blocking available), phase-to-phase overcurrent protection (with low-voltage blocking available), two-stage zero-sequence overcurrent protection, inverse-time phase-to-phase overcurrent protection (with low-voltage blocking available), Zero sequence inverse time overcurrent protection, overload protection, abnormal control loop alarm. |
| Intelligent control device | ASD500 |  |
Primary circuit simulation diagram and switch status indication, high voltage live display and phase verification, automatic temperature and humidity control, heating circuit fault alarm, opening and closing circuit integrity indication, opening and closing circuit voltage measurement, pre-opening and pre-closing flashing indication，wireless temperature measurement of electrical nodes, human body induction automatic lighting, voice prompts, electrical parameter measurement and RS485 communication interface and many other functions, integrating operation and display. |
| Low voltage motor protector | ARD3M |   |
The intelligent motor protector (hereinafter referred to as the protector) is suitable for low-voltage motor circuits with rated voltage up to 660V, integrating protection, measurement, control, communication, and operation and maintenance. Its perfect protection function ensures the safe operation of the motor, and with logic programmable function, it can meet a variety of control methods. Different communication modules can be selected to meet the needs of on-site communication. The product adopts a split structure and consists of a main body, a display unit and a transformer, which can be adapted to the installation of various cabinets. It has the type inspection report certificate and electromagnetic compatibility inspection certificate that have passed the inspection of Xuchang Kaipu Research Institute Co., Ltd. and the National Relay Protection and Automation Equipment Quality Supervision and Inspection Center, and the product protection level has reached IP65. It meets the requirements for related product functions, protection levels and electromagnetic compatibility in the integrated monitoring system of the pipe gallery. |
| Low Voltage Line Protector | ALP220 |  |
It has inverse time overcurrent, low definite time overcurrent, high definite time overcurrent, low definite time zero sequence, high definite time zero sequence, inverse time zero sequence, phase failure protection, current unbalance, demand protection, linkage protection , undervoltage protection, overvoltage protection, leakage protection and other functions. |
| Protective Transformer | AKH-0.66P |  |
Protection transformer, measuring AC current signal |
| Residual Current Transformer | AKH-0.66L |  |
Residual current transformer, collecting residual current signal |
Post time: Apr-28-2025
