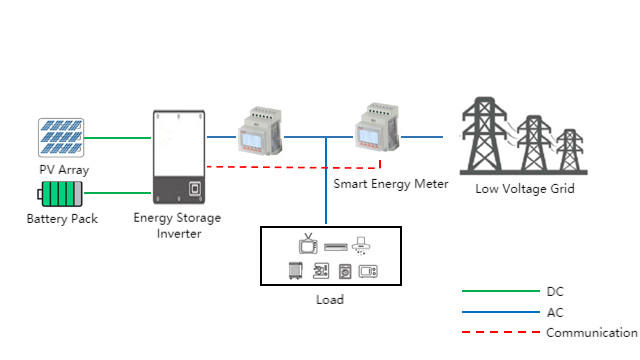

1.PV Energy Storage Inverter
Application:
Household energy storage
Small-scale industrial and commercial energy storage
Micro-grid energy storage
Functions:
• Take sample, measure and monitor the electrical energy parameters, communicate with the inverter or energy management system (EMS), and realize functions such as anti-reverse current, regulation of power generation, battery charging and discharging according to the real-time power and accumulated energy;
• Adopt standard DIN35mm rail mounting, with the advantages of small size, easy installation and easy networking;
• With bi-directional metering function to realize household distributed PV energy management;
• Suitable for new energy generation systems such as grid-connected photovoltaic systems, micro-inversion systems, energy storage systems, AC coupling systems, etc.
Picture:

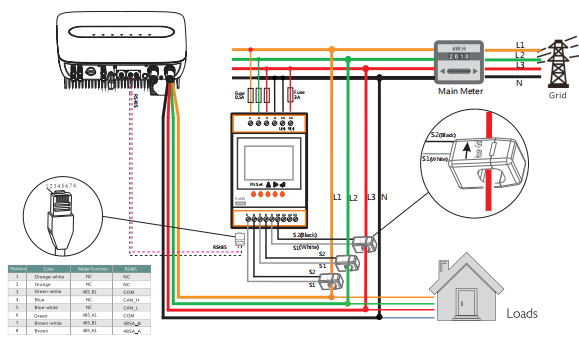

2.PV grid-connected inverter
Application:
Household PV
Commercial PV
Ground-mounted PV
PV building
Functions:
• Take sample, measure and monitor the electrical energy parameters; realize data exchange with the host computer through energy meter RS485 communication interface;
• With bi-directional metering function;
• Split core CT is suitable for reconstruction or renovation projects, without disconnecting wires and easy to install.

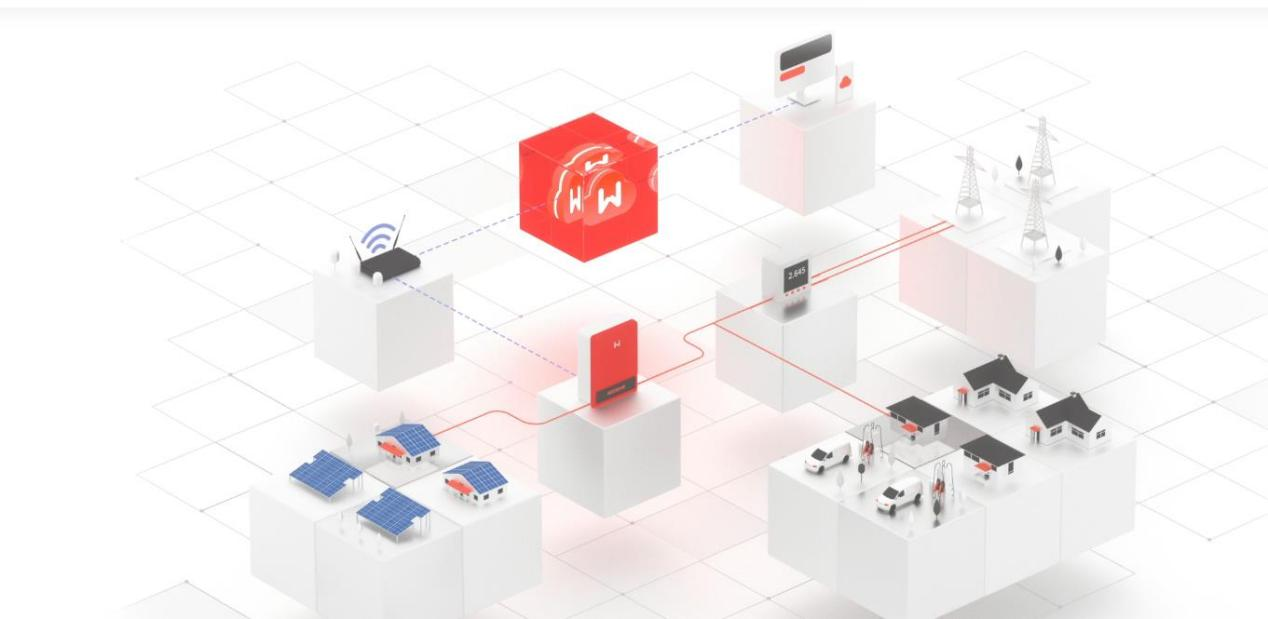

3.PV monitoring
Application:
Ground-mounted PV power station
Commercial and industrial PV power station
Functions:
• Adopt standard DIN35mm rail mounting, with advantages such as easy installation and easy networking;
• With bi-directional metering function to realize household distributed PV energy management;
• Suitable for new energy generation systems such as grid-connected photovoltaic systems, micro-inversion systems, energy storage systems, AC coupling systems, etc.
• Split core CT is suitable for retrofit projects, without disconnecting wires and easy to install.
4.Product Selection
Single-phase system:
ACR10R-D16TE Single-phase DIN rail meter
https://www.acrel-electric.uk/acrel-acr10r-d16te-pv-solar-inverter-energy-meter-product/
DDSD1352-C Single-phase DIN rail meter
https://www.acrel-electric.uk/acrel-adl100-et-single-phase-din-rail-energy-meter-product/
Single-phase three-wire system:
AGF-AE-D Single-phase three-wire DIN rail meter
https://www.acrel-electric.uk/acrel-agf-ae-series-pv-solar-inverter-meter-product/
Three-phase system:
ACR10R-D10TE4Three-phase DIN rail meter
https://www.acrel-electric.uk/acrel-acr10r-d16te4-pvsolar-inverter-energy-meter-product/
DTSD1352-C Three-phase DIN rail meter
https://www.acrel-electric.uk/dtsd1352-c-solar-inverter-smart-energy-meter/
Post time: Apr-28-2025
