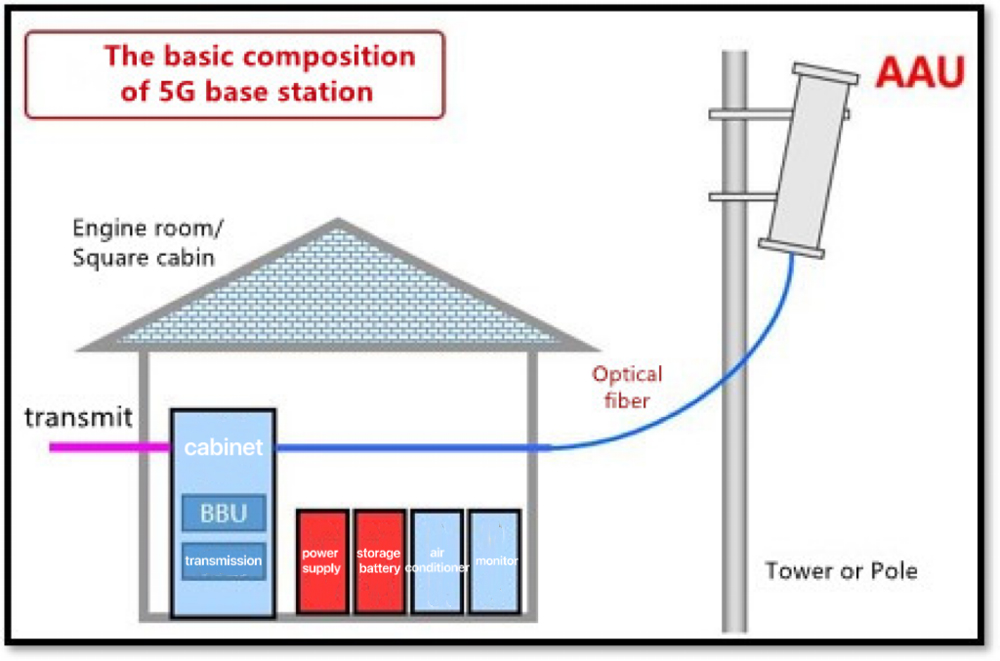

Generally speaking, 5G base stations mainly include BBU+AAU.

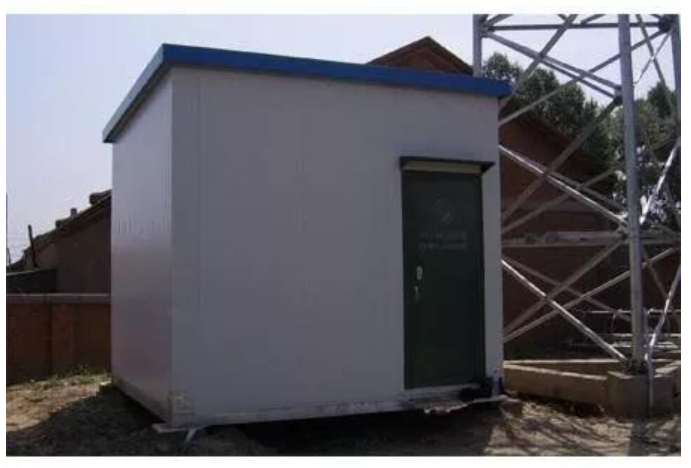

Base station room: mainly equipped with signal transceivers, monitoring devices, fire extinguishing devices, power supply equipment and air conditioning equipment.

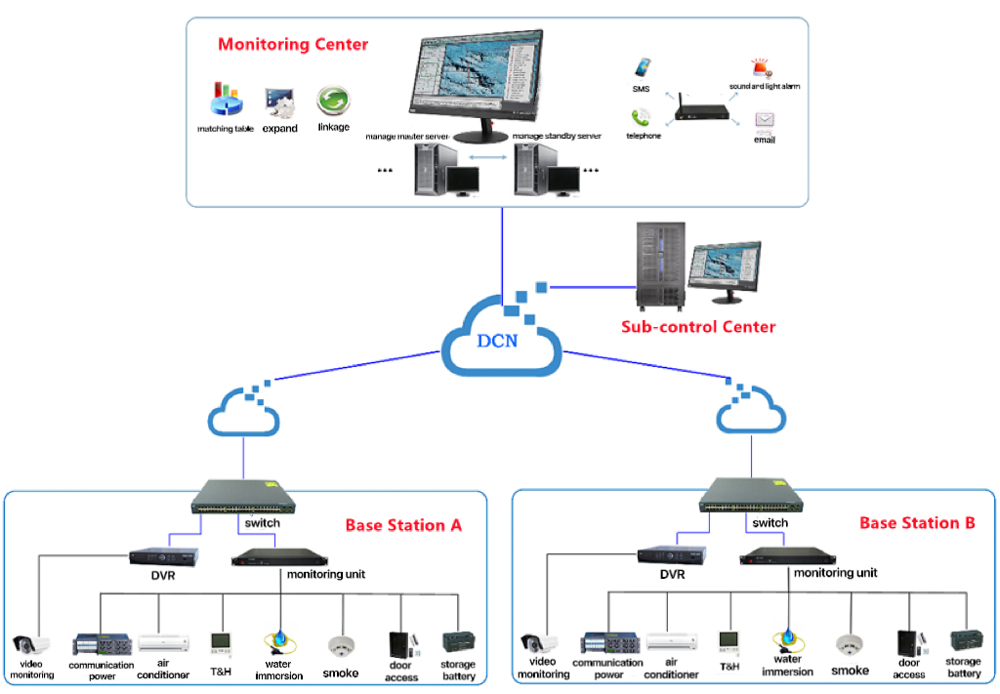

Base station monitoring generally adopts a three-level structure: central monitoring master station, sub control center, and base station site.
The monitoring center is responsible for the monitoring and management of all base station power equipment and room environment within the entire monitoring network.
The sub-control center is responsible for the monitoring and management of powered air conditioners and base station room environment within a certain area of the monitoring network.
The base station site is only responsible for data collection and control of the power equipment and base station room environment equipment in a specific mobile base station.
Structure of Base Station Dynamic Environment Monitoring System:

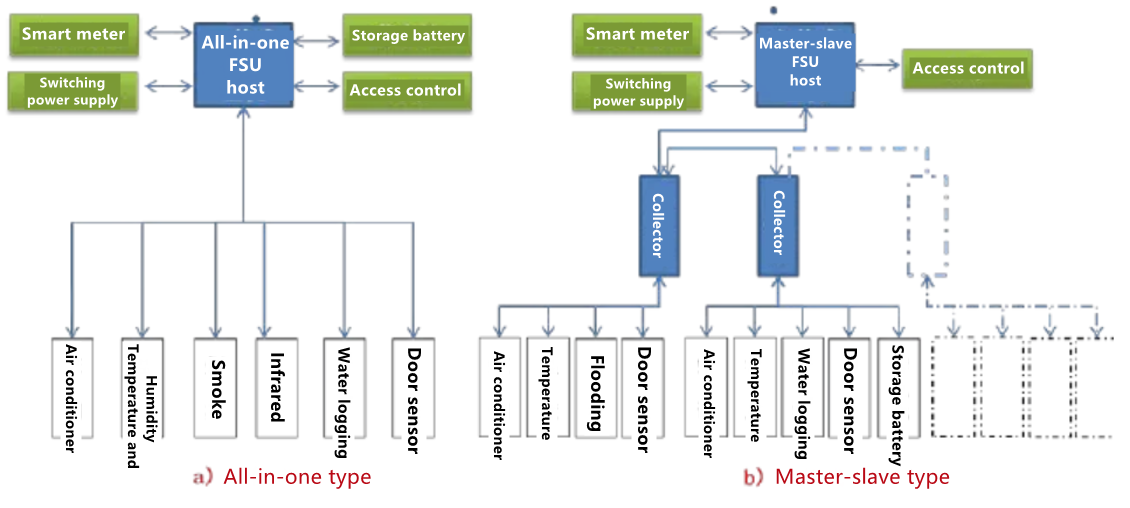

There are 2 types of base station sites (all-in-one type; master-slave type), which collect and control data from the power equipment (mains electricity, diesel engine, UPS, battery, etc.) and room environment equipment (temperature and humidity, water immersion, smoke detection, etc.) .

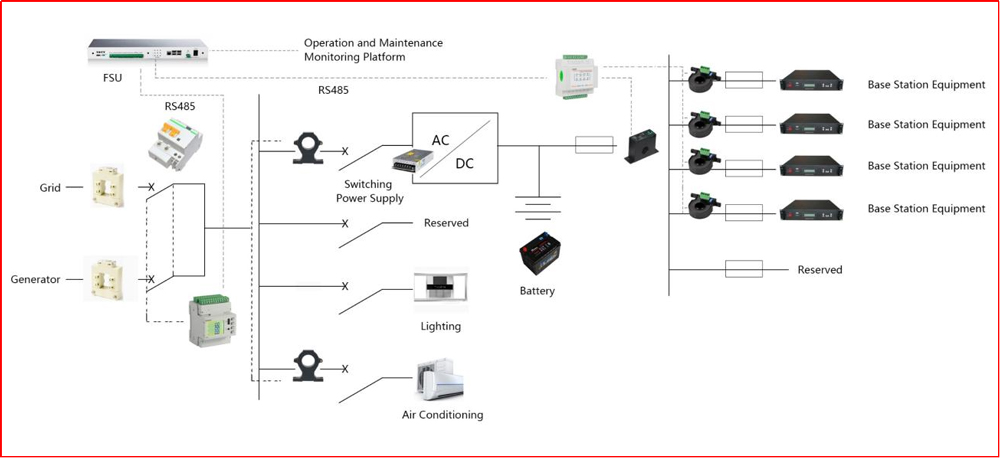

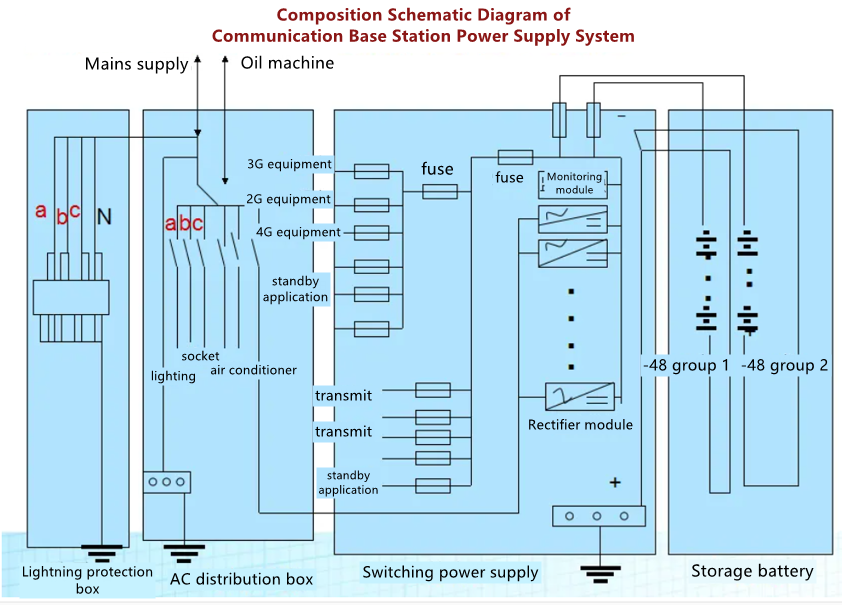

Diagram of Base Station Power Distribution Monitoring System:
Topology Diagram of Base Station Energy Consumption Monitoring:
Base Station AC Power Distribution Monitoring

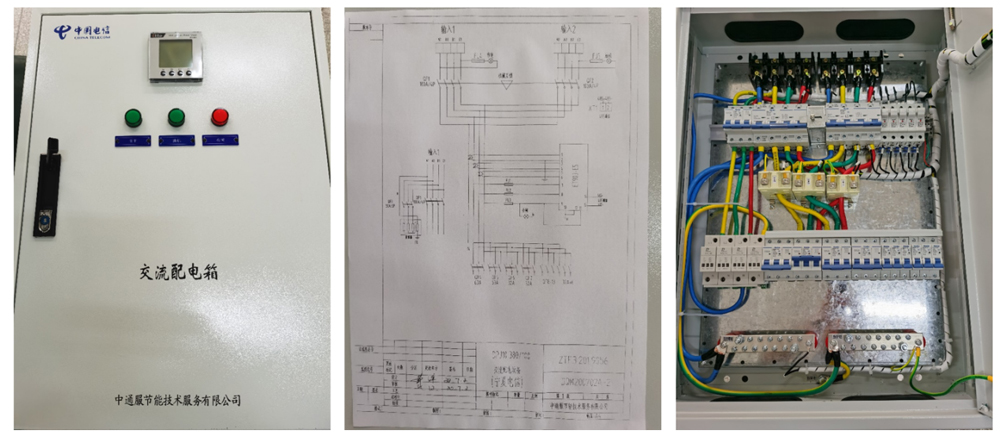

- AC Power Distribution Box：
Quick product selection:
| Single loop three phase din rail meterADL400 |  |
Monitoring mains electricity&diesel engineAC/DC 85-265V power supply80A direct access or 5A CT access
RS485 communication |
| Single loop three phase din rail meterADW300 |  |
Monitoring mains electricity&diesel engineAC/DC 85-265V power supplyUp to 660V 5A direct access
4DI&2DO RS485 communication |
| Single loop embedded meterAMC96L-E4 |  |
Monitoring mains electricity&diesel engineAC/DC 85-265V power supplyUp to 660V 5A direct access
4DI&2DO RS485 communication |
| Multi-loop embedded wireless meterAMC300L |  |
Monitoring mains electricity&diesel engine&air conditioning&lighting, etc.AC/DC 85-265V power supplyMaximum 18 single-phase or 6 three-phase access
4 passive DI&2DO&2 active DI RS485 communication |
| Multi-loop din rail meterDTSD1352-4S |  |
Monitoring mains electricity&diesel engine&air conditioning&lighting, etc.AC/DC 85-265V power supplyMaximum 12 single-phase or 4 three-phase access
mA level CT access (crystal head) 4 passive DI&1DO&2 active DI RS485 communication |
| Multi-loop din rail meterAMC200 |  |
Monitoring mains electricity&diesel engine&air conditioning&lighting, etc.AC/DC 85-265V power supplyMaximum 24 single-phase or 8 three-phase access
mA level CT access (crystal head) 4 passive DI&2DO&2 active DI 4 NTC temperature measurement, 1 temperature and humidity |
Base Station DC Power Distribution Monitoring

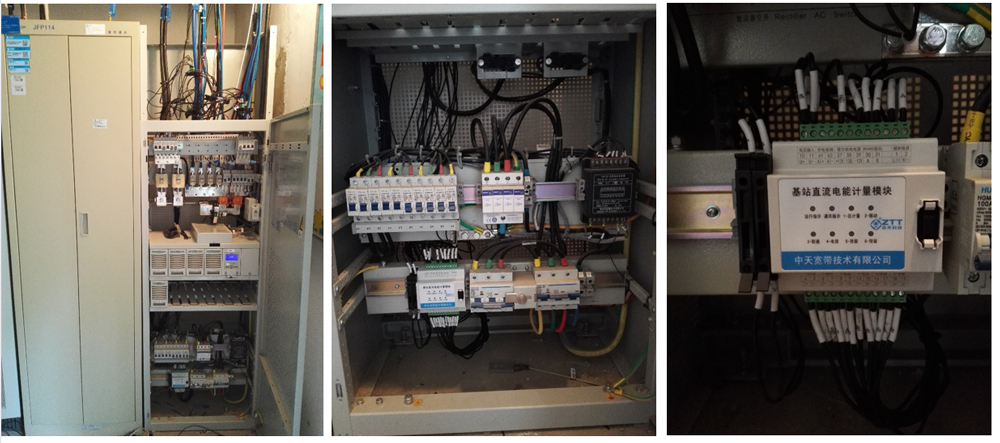

- Switching Power Supply Cabinet
Quick product selection:
| Multi-channelDin rail DC meterAMC16L-DETT |  |
Monitoring General & Mobile & Telecom & Unicom & Broadcast and other communication equipmentDC -48Vpower supply
Maximum 6 DC loop access Output 0-5V current Hall sensor access With ±12V output to supply power to Hall sensor RS485 communication |
| Din rail DC meterDJSF1352-RN |  |
Monitoring General & Mobile & Telecom & Unicom & Broadcast and other communication equipmentDC24V/48Vor AC/DC85-265V power supply
Maximum 2 DC loop access Output 0-5V current Hall sensor or 75mV shunt access With ±12V output to supply power to Hall sensor RS485 communication |
| Multi-loop din rail wireless meterAMC200 |  |
Monitoring General & Mobile & Telecom & Unicom & Broadcast and other communication equipmentDC -48V power supply
Maximum 12 DC loop access 4 NTC temperature measurement 1 temperature and humidity With ±12V output to supply power to Hall sensor RS485 communication |
| Current Hall SensorAKHC |  |
Reconstruction project adopts open typeNew project adopts closed type
0-5V output ±12V power supply |
