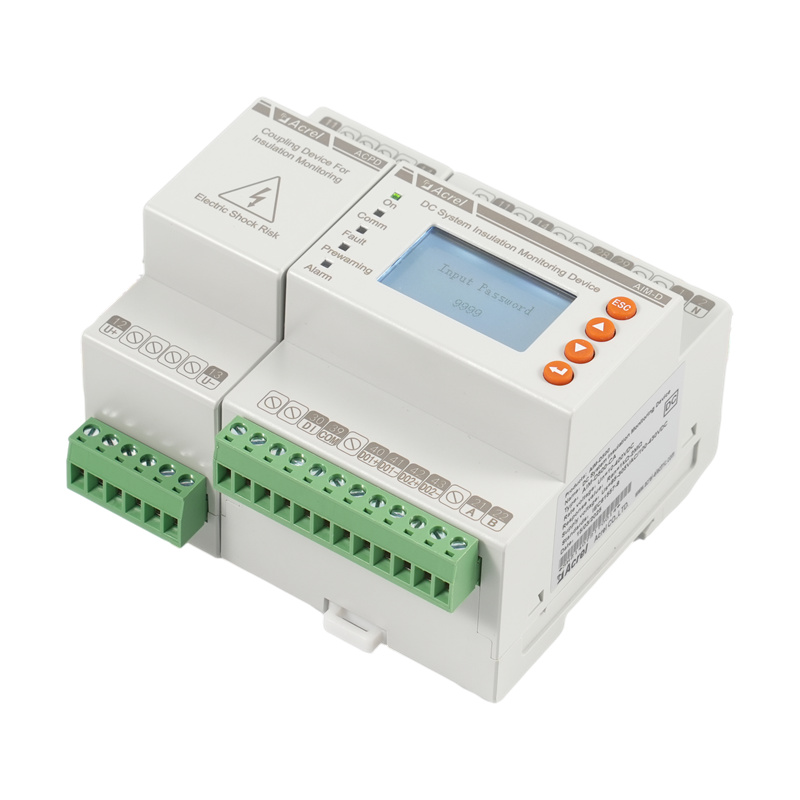

Acrel AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device
Acrel AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device
● Monitor the resistance of DC charging stations in accordance with the CHAdeMO 3.0 and Combined Charging System (CCS)
● Measuring the resistance between L+ to earth and L- to earth
● Measuring the system voltage with undervoltage and overvoltage detection
● Measuring the voltage between L+ to earth and L-to earth
● Two separately adjustable response value ranges of 1kΩ~2MΩ
● Automatic adaptation to the system leakage capacitance up to 35 μF
● Alarm output via LEDs (Fault, Pre-warning and Alarm), LCD display and alarm relays (DO1, DO2)
● Selectable N/C or N/O relay operation
● Self-test for detecting whether the insulation monitoring device is capable of fulfilling its warning functions
● 50 fault memory alarm messages
● RS-485 with Modbus RTU protocol for the data exchange with other devices
● Local and remote reset/test function.
● Stop mode for disabling the measuring pulse generator.
Acrel AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device
General
With the development of industry, many electrical equipment and factory equipment are powered by DC systems, and the positive and negative poles of the DC system are not grounded. For ungrounded (IT) power distribution systems, insulation resistance monitoring should be performed to ensure the safe operation of the power supply system .
AIM-D500-CA DC system insulation monitoring device can be used in 50~400V DC systems. It can monitor up to 1000V with ACPD300 coupling device for insulation monitoring. The product can monitor the insulation resistance of the positive and negative poles of the DC ungrounded system online. When the insulation resistance is lower than the set value, it will issue a prewarning or alarm signal.
AIM-D500-CA uses the signal injection method for monitoring, which is applicable to the CCS (Combined Charging System) charging standard and the CHAdeMO charging standard. Among them, CCS is widely used in the fast charging system of electric vehicles in Europe and the United States, and CHAdeMO is mainly used in the fast charging interface of electric vehicles in Japan.
The products can also be used in DC systems such as power plants, DC panels of substations, electric vehicle charging devices, UPS power supply systems and other DC power grids.
AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device Type Specification
AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device Typical Application
Typical Application of AIM-D500-CA in 60kW DC EV Charging Pile

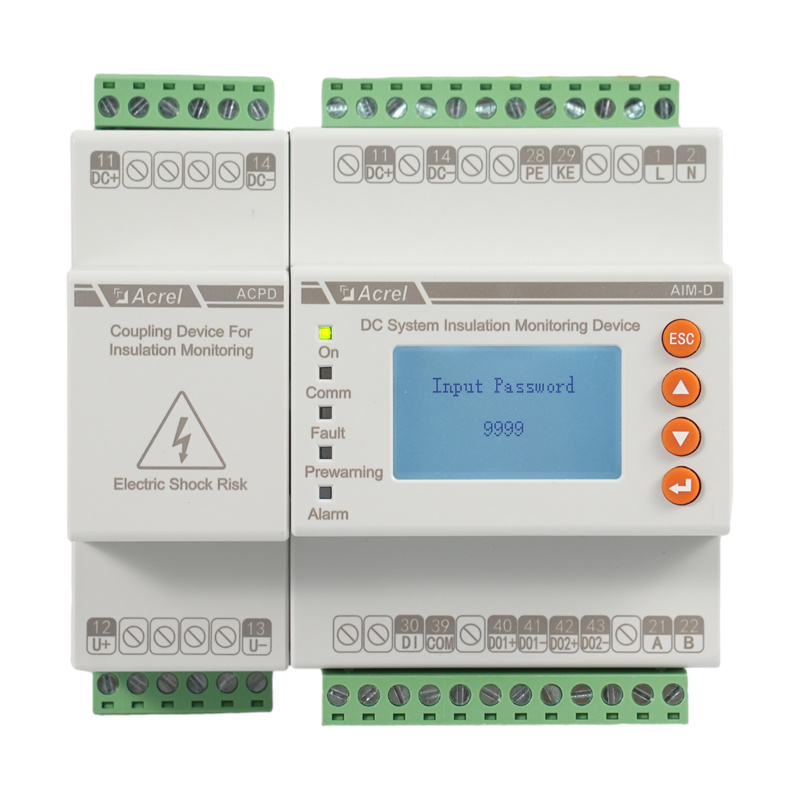

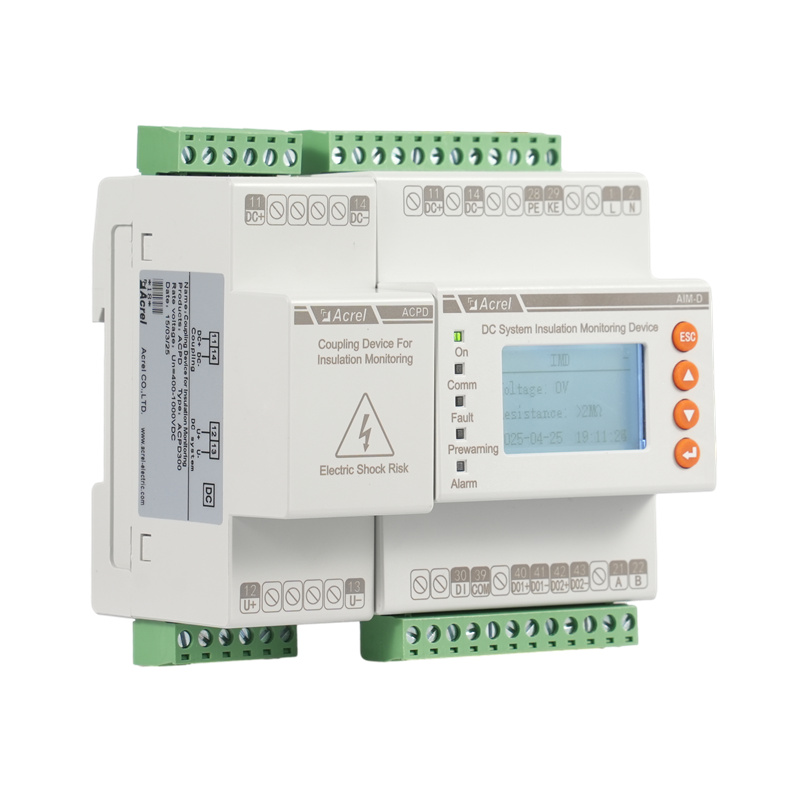

AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device Front Panel
AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device Dimension
AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device Installation
Picture On-site
Acrel AIM-D500-CA(with ACPD300) DC System Insulation Monitoring Device
Technical Parameters
|
Items |
Technical Parameters |
|
|
Auxiliary Power Supply Us |
AC 85~305V, 50/60 Hz; DC 100~400V |
|
|
Maximum Power Consumption |
≤ 5 W |
|
|
Applicable Systems |
DC ungrounded system |
|
|
Scope of Application |
DC 50~1000V |
|
|
Voltage Monitoring |
Voltage Range Un |
Rated voltage without APCD300: DC 50~400V Rated voltage with ACPD300: DC 50~1000V |
|
Measurement Accuracy |
2% |
|
|
Overvoltage Threshold |
100~120% settable |
|
|
Undervoltage Threshold |
80~100% settable |
|
|
Insulation Monitoring |
System leakage Capacitance Ce |
≤20μF |
|
Insulation Resistance Range RF |
1kΩ~2MΩ |
|
|
Insulation Alarm Range Ran |
1kΩ~2MΩ |
|
|
Insulation Prewarning Range |
Ran~2MΩ |
|
|
Measurement Accuracy |
±15% or ± 5 kΩ (Ce≤ 5μF) |
|
|
Alarm Response Time |
≤10s (RF≤200k & Ce≤ 5μF or Ce≤ 1μF) |
|
|
Internal Parameters |
Measuring Voltage |
±24V |
|
Measuring Current |
158.8μA (79.7μA with ACPD300) |
|
|
Internal DC Resistance |
600kΩ (120kΩ with ACPD300) |
|
|
Alarm Method |
LCD display, LED indicator light, relay output |
|
|
Digital Input |
Internal 5V power supply |
|
|
Digital Output |
2 groups of dry contact relays, alarm custom binding, N/O or N/C settable |
|
|
Contact Capacity |
AC 250V 5A; DC 30V 5A |
|
|
Sequence of Events (SOE) |
50 SOE |
|
|
Communication |
RS485 interface, Modbus-RTU protocol |
|
|
Rated impulse voltage/pollution degree |
4kV/III |
|
|
EMC electromagnetic compatibility / Electromagnetic radiation |
Compliant with IEC 61326-2-4 |
|
|
Installation |
DIN rail mounting |
|
|
Protection Level |
IP30 |
|
|
Product Weight |
AIM-D500-CA: 252.0g; ACPD300: 86.0g |
|
|
Environmental Parameters |
Operating Temperature |
-20~+60℃ |
|
Storage Temperature |
-25~+75℃ |
|
|
Relative Humidity |
<95%, no condensation |
|
|
Altitude |
≤2000m |
|
