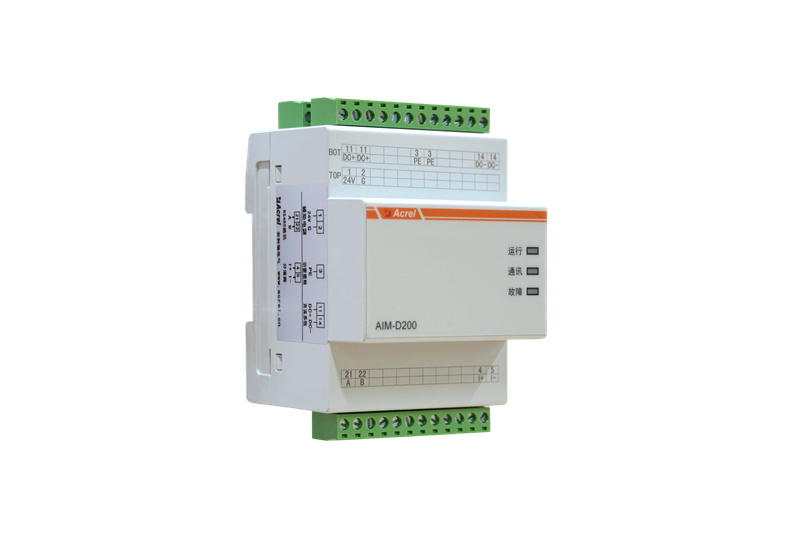

Acrel AIM-D200-CAI DC Insulation Monitor
Acrel AIM-D200-CAI DC Insulation Monitor
● DC voltage and resistance measurement for single charging loop (Single gun DC charging pile)
● DC voltage measurement of L+/L-, L+/PE and L-/PE up to DC 1000V
● Resistance measurement to earth (L+/PE and L-/PE); Range from 1kΩ~10MΩ, activated by communication
● Automatic adaptation to the system leakage capacitance up to 5 μF.
● Two separately adjustable response value ranges of 1kΩ~10MΩ
● LED indicating for run, communication and fault
● 1 RS-485, Modbus-RTU protocol
● Pluggable terminals
● Dimension: 72×107.7×70 (mm)
Acrel AIM-D200-CAI DC Insulation Monitor
General
With the development of industry, many electrical equipment and factory equipment are powered by DC systems, and the positive and negative poles of the DC system are not grounded. For ungrounded (IT) power distribution systems, insulation resistance monitoring should be performed to ensure the safe operation of the power supply system .
AIM-D200-CAI DC insulation monitor can be used in 100 ~ 1000V DC systems for online monitoring of the insulation resistance of the positive and negative poles of an ungrounded DC system. When the insulation resistance is lower than the set value, it will send warning or alarm signal.
The product is based on the unbalanced bridge principle, which avoids the problem that the balanced bridge cannot detect the insulation resistance when ground fault at both the positive and negative poles.
The product is designed for insulation monitoring of electric vehicle charging piles in the range of 100~1000V , and can also be used in DC systems such as energy storage DC, DC panels in substations, UPS power supply systems, photovoltaic DC systems and other DC power grids.
AIM-D200-CAI DC Insulation Monitor Type Specification
AIM-D200-CAI DC Insulation Monitor Typical Application
Typical Application of AIM-D200-CAI in DC EV Charging Pile

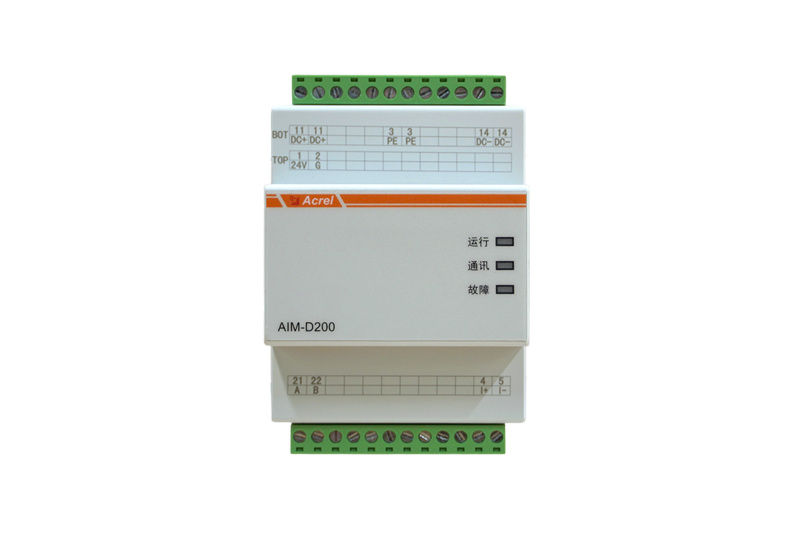

AIM-D200-CAI DC Insulation Monitor Front Panel
AIM-D200-CAI DC Insulation Monitor Dimension

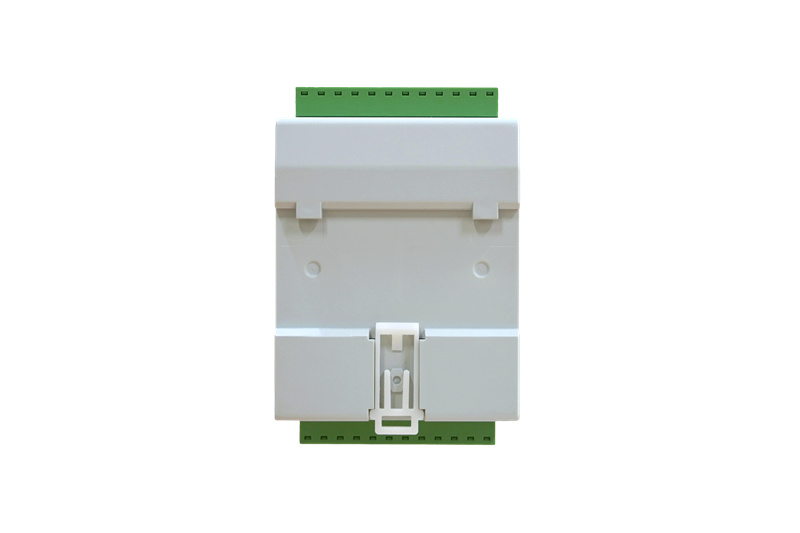

AIM-D200-CAI DC Insulation Monitor Installation
Picture On-site
Acrel AIM-D200-CAI DC Insulation Monitor
Technical Parameters
|
Items |
Technical Parameters |
|
|
Auxiliary power supply |
DC 12 ~36V |
|
|
Maximum power consumption |
≤ 6 W |
|
|
Voltage monitoring |
Voltage range |
DC 100 ~1000V |
|
Measurement accuracy |
Level 2 |
|
|
Current monitoring |
Current monitoring |
Select the shunt connection according to the rated current |
|
Measurement accuracy |
Level 0.5 |
|
|
Insulation monitoring |
Insulation resistance range |
1kΩ~ 10M Ω |
|
Early warning alarm range |
10kΩ~10MΩ |
|
|
Measurement accuracy |
1~10kΩ: ± 1k; 10k~500k: ≤ 5 % |
|
|
System leakage capacitance |
≤ 5μF |
|
|
Insulation monitoring time |
500ms/cycle; 1000ms/cycle |
|
|
Alarm method |
LED Indicator |
|
|
Communication |
RS485 interface; Modbus-RTU protocol |
|
|
Installation |
Rail installation |
|
|
Protection level |
IP30 |
|
|
Environmental parameters |
Operating temperature |
-20 ~ + 60 ℃ |
|
Storage temperature |
-25 ~ + 75 ℃ |
|
|
Relative humidity |
< 95%, non-condensing |
|
|
Altitude |
< 2000m |
|
