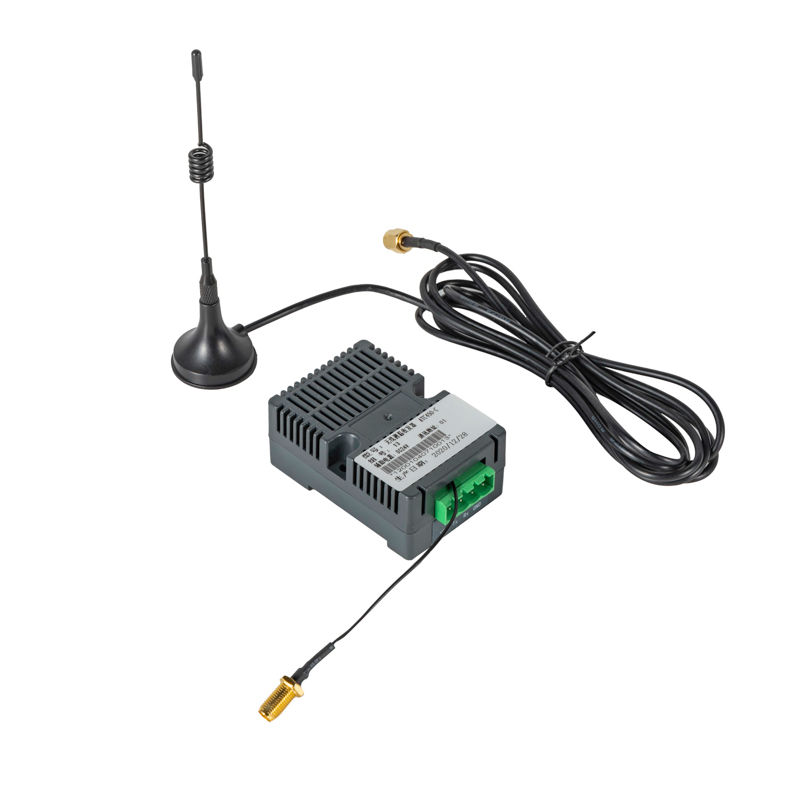

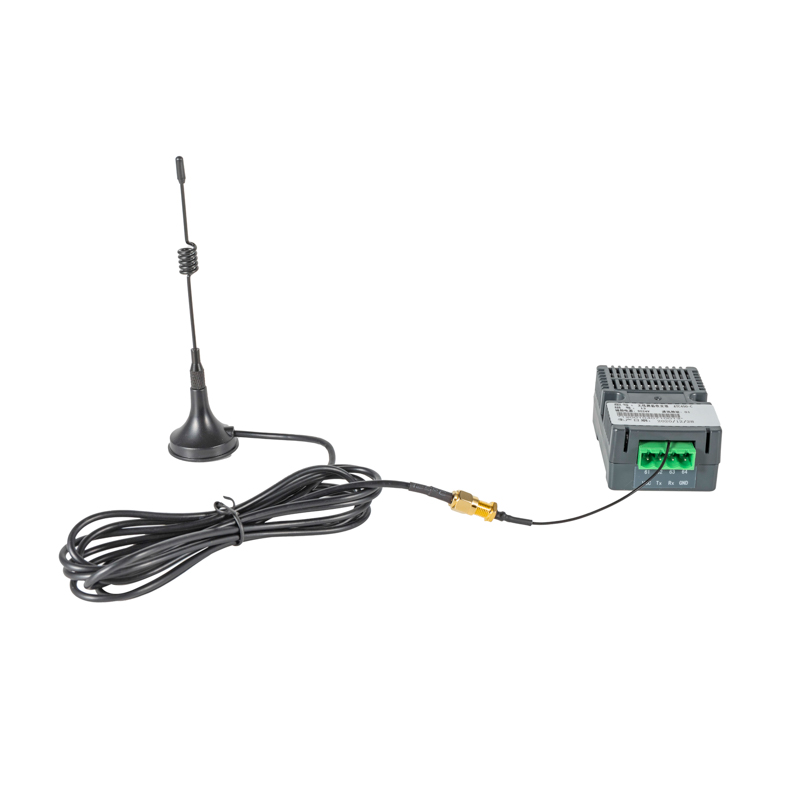

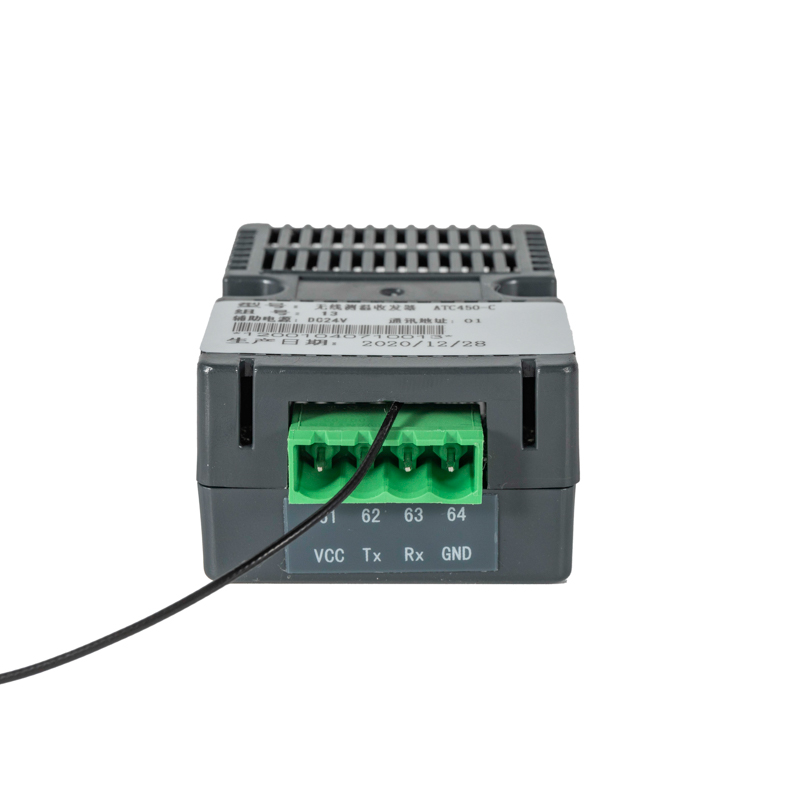

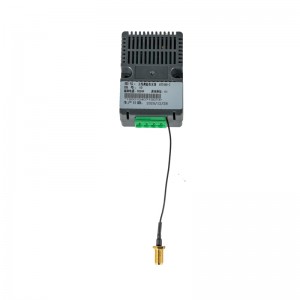

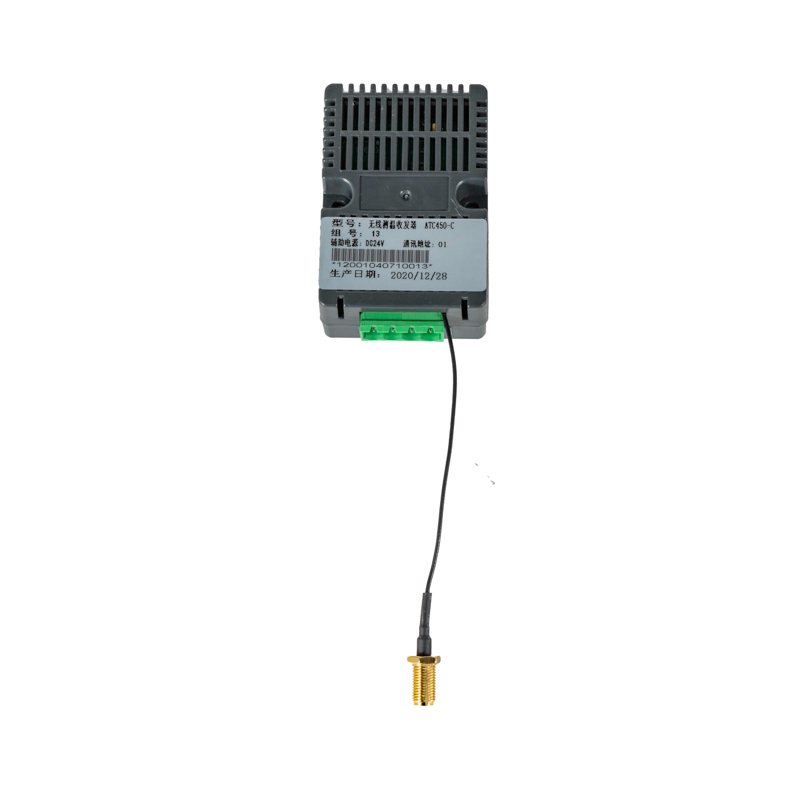

Acrel ATC450-C Wireless Temperature Monitor
Acrel ATC450-C Wireless Temperature Monitor

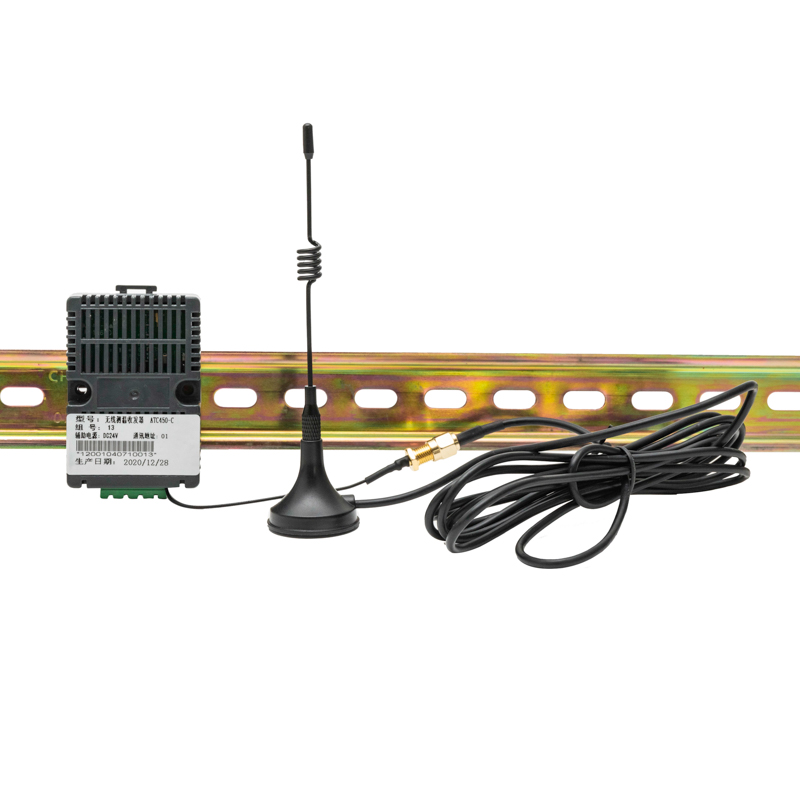

ATC450-C wireless temperature transceiver can adopt guide rail (DIN35mm) installation or bolt fixing.

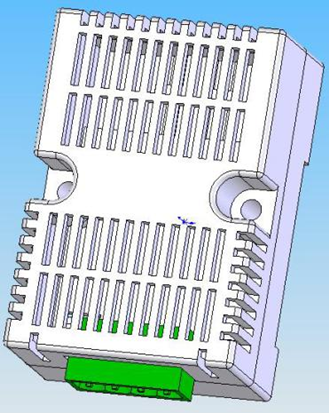

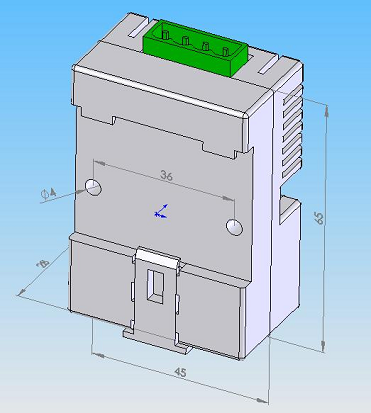

Dimension

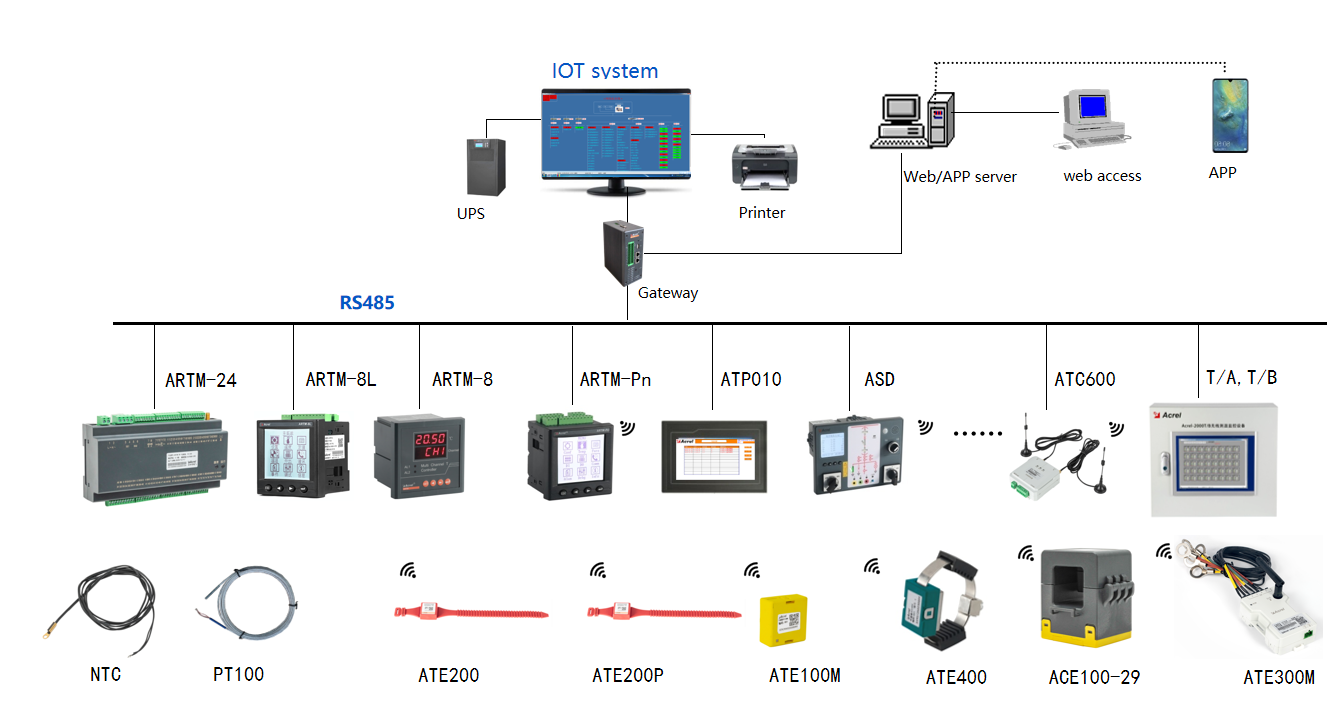

Typical Connection
Acrel ATC450-C Wireless Temperature Monitor
Technical Parameters
|
Items
|
Features
|
|
|
Environment
|
Temperature
|
-40℃~125℃
|
|
Humidity
|
≤95%
|
|
|
atmospheric pressure
|
86kPa~106kPa
|
|
|
ATE100/200 Active wireless
temperature sensor
|
Wireless frequency
|
470MHz
|
|
Communication distance
|
150m in open area
|
|
|
Sampling frequency
|
25s
|
|
|
Transmitting frequency
|
25s-5min
|
|
|
Power source
|
Battery
|
|
|
Installation
|
bolted /Belt
|
|
|
Range of temperature
|
-50℃~+125℃
|
|
|
Precision
|
±1℃
|
|
|
Application
|
Joints in high or low voltage switchgears
|
|
|
Battery life
|
≥5 years
|
|
|
400 Passive wireless
temperature sensor
|
Wireless frequency
|
470MHz
|
|
Communication distance
|
150m in open area
|
|
|
Sampling frequency
|
15s
|
|
|
Transmission frequency
|
15s
|
|
|
Power source
|
CT-powered, starting current≥5A
|
|
|
Installation
|
alloy chip fixing
|
|
|
Sensor probe
|
alloy bottom
|
|
|
Range of temperature
|
-50℃~125℃
|
|
|
Precision
|
±1℃
|
|
|
Application
|
Joints in high or low voltage switchgears
|
|
|
ATE100P/200P Outdoor wireless
temperature sensor
|
Wireless frequency
|
470MHz
|
|
Communication distance
|
150m in open area
|
|
|
Sampling frequency
|
25s
|
|
|
Transmitting frequency
|
25s-5min
|
|
|
Power source
|
Battery
|
|
|
Installation
|
bolted /Belt
|
|
|
Range of temperature
|
-50℃~+150℃
|
|
|
Precision
|
±0.5℃
|
|
|
Application
|
Voltage switchgears
|
|
|
Battery life
|
≥5 years
|
|
|
Protection level
|
IP68 | |
