Acrel BM800-TC/VI-11 Signal Isolator
Acrel BM800-TC/VI-11 Signal Isolator
General
Acrel BM800-TC/VI-11 is a 6.2 mm thick signal isolator for DIN 35 mm rail mounting. It features 1-channel input and 1-channel output with galvanic isolation between the input, output and power supply circuits. This device converts thermocouple signals at the input side into isolated DC signals including 0/4-20 mA, 0/1-5 V and 0/2-10 V at the output. The measuring range and output signal type can be configured via DIP switches. It supports Type K and Type J thermocouple inputs, and the rated supply voltage is 24 V DC.

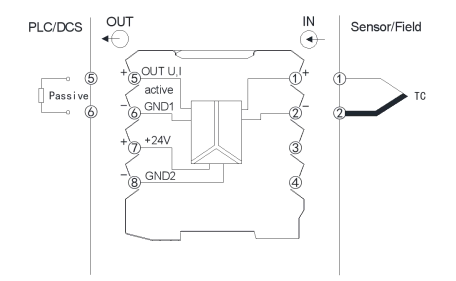

Connection Diagram
Dimension
Installation
Wiring

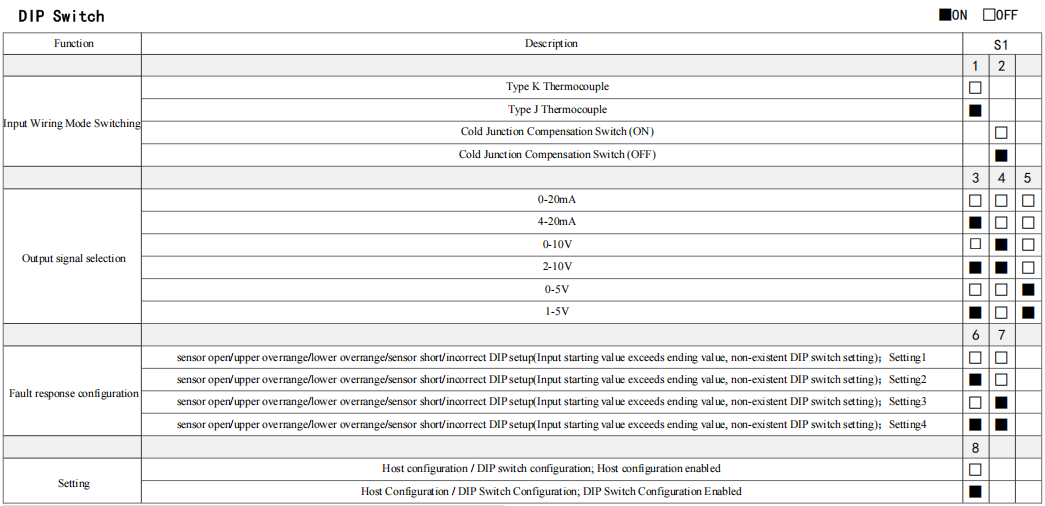

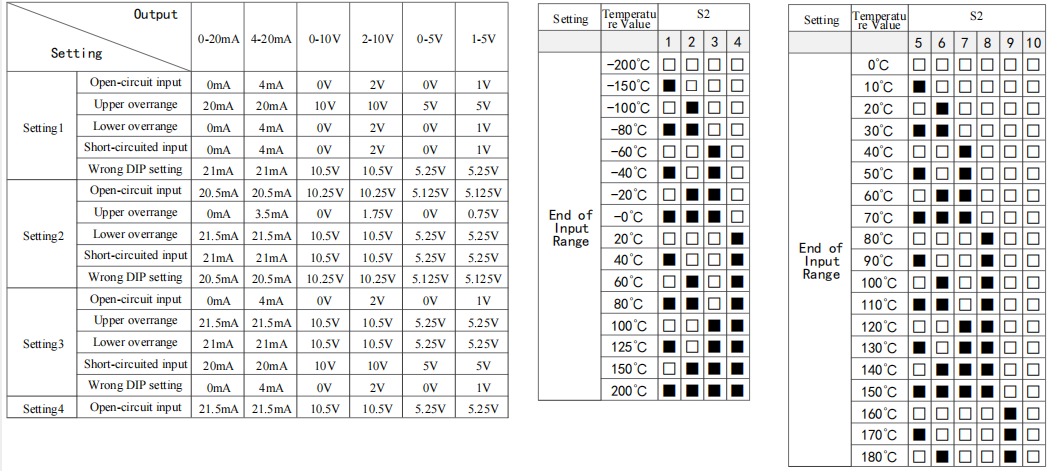

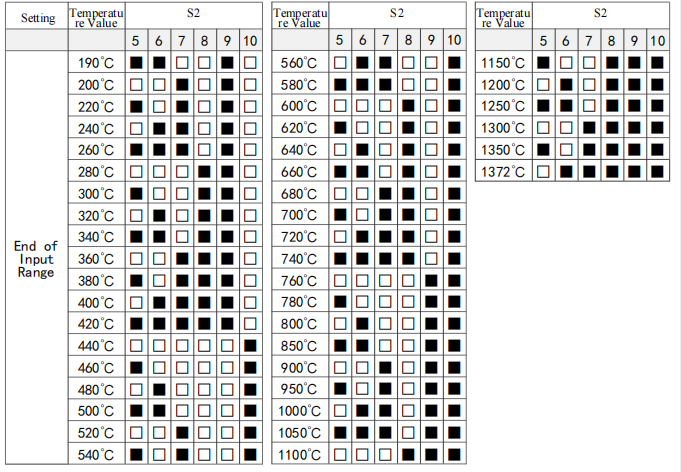

DIP Switch Configuration
On-site Picture
Date Center
Building
Industrial Automation
Acrel BM800-TCVI-11 Signal Isolator
Technical Parameters
| Model | BM800-TC/VI-11 |
| Input Specifications | |
| Input channel | 1 |
| Input signal | Thermocouples (Type K, Type J) |
| Minimumconfigurable span | 300℃ |
| Output Specifications | |
| Output channel | 1 |
| Available outputs | Active 0/4-20mA, 0/1-5V, 0/2- 10V |
| Max output current | 25mA |
| Output ripple | ≤50mVpp(@250Ω) |
| Load capacity | Current output ≤550Ω; Voltage output ≥10kΩ |
| Power Supply Parameters | |
| Nominal supply | 24V DC |
| Operating supply range | 20~35V DC |
| Power consumption | ≤1.8 W (Iout=20 mA, 24 V DC, 550 Ω load) |
| General Performance | |
| Conversion Accuracy | ≤0. 1% F.S. (Input range ≥ 1000°C) |
| ≤0.2℃ / Input Range × 100% F.S. (Input range ＜ 1000°C) | |
| Temperature drift | 100ppm/℃ |
| Response time(10- 90%) | ≤1s |
| Overvoltage category | Ⅱ |
| Pollution degree | 2 |
| Ingress protection | IP20 |
| Dielectric strength | 1.5kV AC, 50Hz, 60s (between input, output and power circuits) |
| Insulation resistance | 100MΩ |
| Overall dimension | W6.2mm × H97mm × D100mm |
| Weight | approx.70g |
| Mounting | DIN35 standard rail |
| Wiring Specifications | |
| Connection Type | Screw terminal connection |
| Solid single-core wire size | 0.5~2.5mm² |
| Stranded flexible wire size | 0.5~2.5mm² |
| AWG wire gauge | 20~ 13 |
| Wire stripping length | 8mm |
| Ambient Specifications | |
| Operating ambient temperature | -20~60℃ |
| Storage ambient temperature | -40~80℃ |
| Max operating altitude | ≤2000m |
| Relative ambient humidity | ≤95%RH,non-condensing |
