General
Acrel BM800-V/I-11 is a 6.2 mm thick signal isolator for DIN 35 mm rail mounting. It features a 1-in-1- out channel design with galvanic isolation between the input, output and power supply. It isolates and converts DC 0/2–10 V input signals into DC 0/4–20 mA output signals, with a 24 V DC power supply.

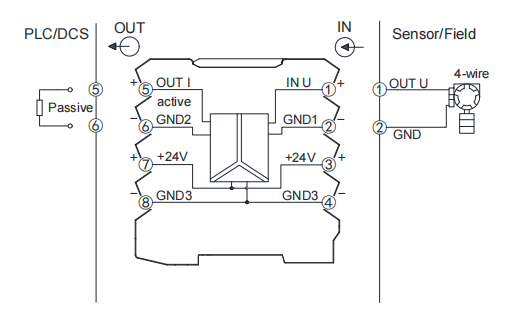

Connection Diagram
Dimension
Installation
Wiring
On-site Picture
Date Center
Building
Industrial Automation
Acrel BM800-V/I-11 Signal Isolator
Technical Parameters
| Model | BM800-V/I- 11 |
| Input Specifications | |
| Input channel | 1 |
| Input signal | DC 0/2- 10V |
| Maximum Input Voltage | DC 13V |
| Maximum Input Impedance | 2MΩ |
| Output Specifications | |
| Output channel | 1 |
| Available outputs | DC 0/4～20mA(Active Signals) |
| Max output current | DC 35mA |
| Output ripple | ≤50mVpp(@250Ω) |
| Load capacity | ≤550Ω |
| Power Supply Parameters | |
| Nominal supply | 24V DC |
| Operating supply range | 20~35V DC |
| Power consumption | ≤2 W (Iout=20 mA, 24 V DC, 550 Ω load) |
| General Performance | |
| Conversion Accuracy | ≤0.1% (F.S.) |
| Temperature drift | 50ppm/℃ |
| Response time(10- 90%) | ≤5ms |
| Overvoltage category | Ⅱ |
| Pollution degree | 2 |
| Ingress protection | IP20 |
| Dielectric strength | 1.5kV AC, 50Hz, 60s (between input, output and power circuits) |
| Insulation resistance | 100MΩ |
| Overall dimension | W6.2mm × H97mm × D100mm |
| Weight | approx.70g |
| Mounting | DIN35 standard rail |
| Wiring Specifications | |
| Connection Type | Screw terminal connection |
| Solid single-core wire size | 0.5~2.5mm² |
| Stranded flexible wire size | 0.5~2.5mm² |
| AWG wire gauge | 20~ 13 |
| Wire stripping length | 8mm |
| Ambient Specifications | |
| Operating ambient temperature | -20~60℃ |
| Storage ambient temperature | -40~80℃ |
| Max operating altitude | ≤2000m |
| Relative ambient humidity | ≤95%RH,non-condensing |
