Acrel AWT200 Series Intelligent DTU

General

Acrel AWT200 data communication gateway is used in various terminal equipment data acquisition and data  analysis,  to  realize  the  monitoring,  control  and  calculation  of the  equipment,  to  establish  a communication link between the system and the equipment, to achieve two-way data communication. Real-time monitoring and timely discovery of abnormal data, at the same time according to the user rules to make logical judgment, greatly saving manpower and communication costs.

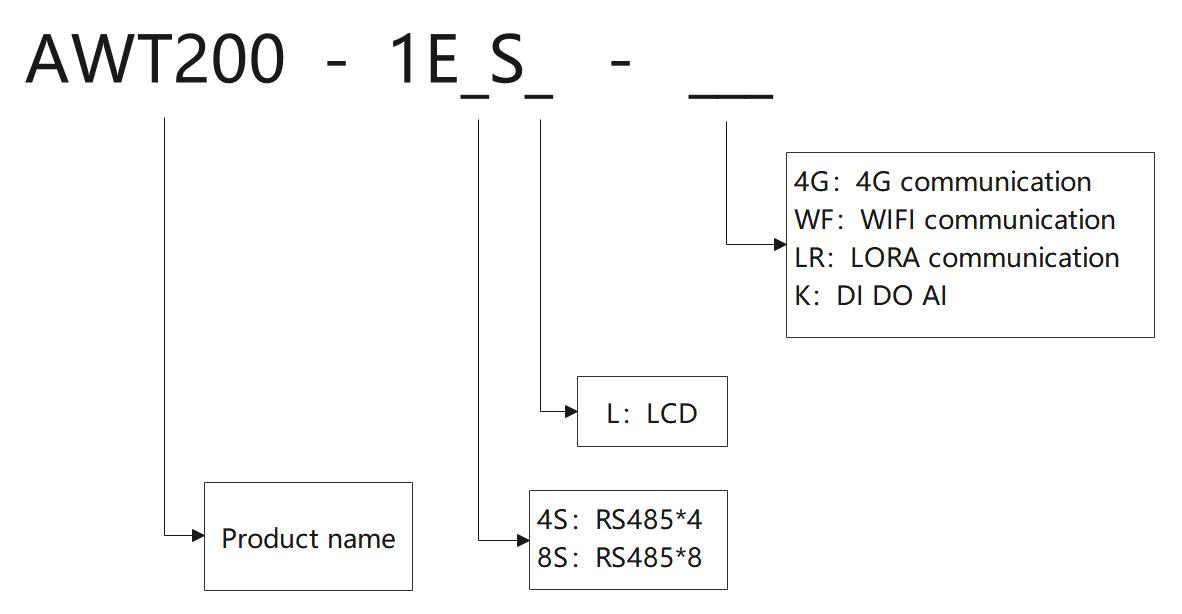

Type Specification

AWT200 Intelligent DTU - Type Specification

Connection

AWT200 Intelligent DTU - Networking

Outline and Dimension

AWT200 Intelligent DTU - dimention - 1
AWT200 Intelligent DTU - dimention - 2

  • Previous:
  • Next:

  • Acrel AWT200 Series Intelligent DTU

    Technical Parameters

    Shape
    Interface RS485: wiring terminal AI/DI/DO: wiring terminal
    Size 6-mold (108mmX88mmX70mm) din-rail, flame retardant ABS material
    Performance
    Processor M4 Kernel
    Frequency 168MHZ
     Storage 8G TF Card
    Communication Interface
    Ethernet 10M/100M * 1; Electrical Isolation
    Serial Port RS485*(4/8):485A 、485B 、GND; Electrical Isolation
    Serial Port Parameter
    Baud Rate 1200~ 115200bps Check Bit None,Odd,Even
    Data Bit 7~8 Bits Flow Control No Flow Control
    Software
    IP Mode IPV4 、IPV6
    Protocol TCP、UDP、HTTP、DHCP
    Configuration Mode Windows Desktop Software, WEB Browser, Remote Debugging
    Communication Mode TCP/IP direct communication 、RS485、LORA
    Protocol Modbus RTU 、Modbus TCP 、MQTT
    Firmware upgrade Windows Desktop Software, WEB Browser, Serial port upgrade
    Working mode
    TCP server, TCP client, UDP server, UDP client
    Power Requirements
    Power Supply DC 12-24V (Power Adapter)
    Environment
    Operating Temperature -20℃~+55℃
    Storage Temperature -40℃~+85℃
    Humidity Range <95%RH, No Condensation
