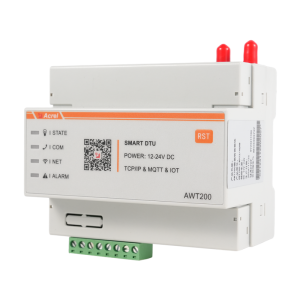

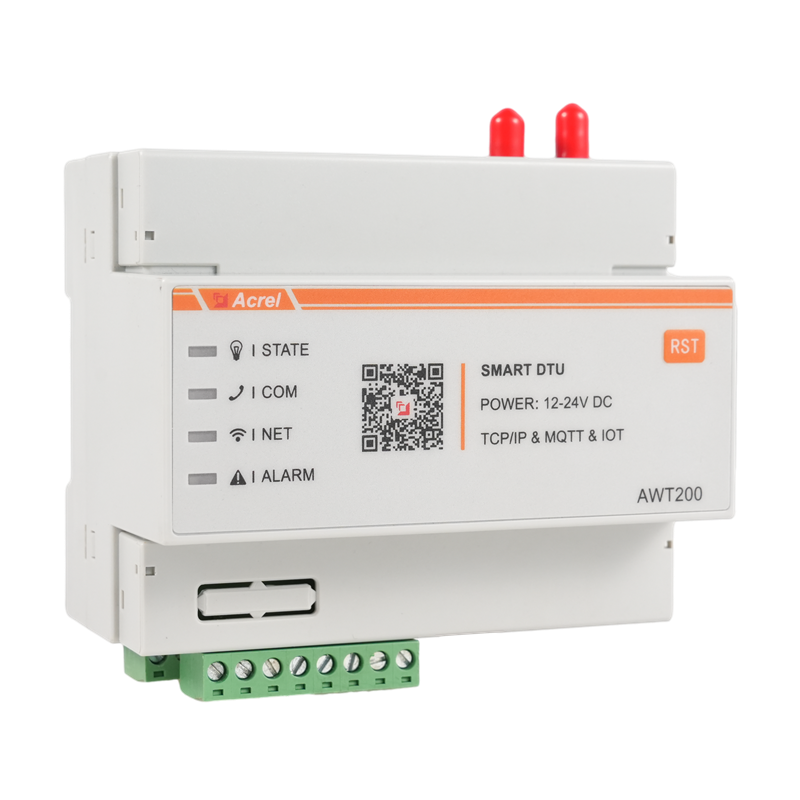

Acrel AWT200-LW Series Intelligent LoRaWan DTU
Acrel AWT200 Series Intelligent DTU
General
Acrel AWT200-LW series intelligent DTU is a LoRaWan gateway product based on SX1302 RF chip. There are a number of different frequency bands and different models of products to choose from, to meet the different needs of different customer groups in different regions. The gateway can easily provide users with fast LoRaWan network access and LoRaWan wireless services.
AWT200-LW data communication gateway can be used in various terminal equipment data acquisition and data analysis, between the gateway and the terminal equipment through wireless information transmission, without tedious wiring, with long transmission distance, strong anti-interference ability, large network capacity, cost-effective, suitable for a variety of applications.

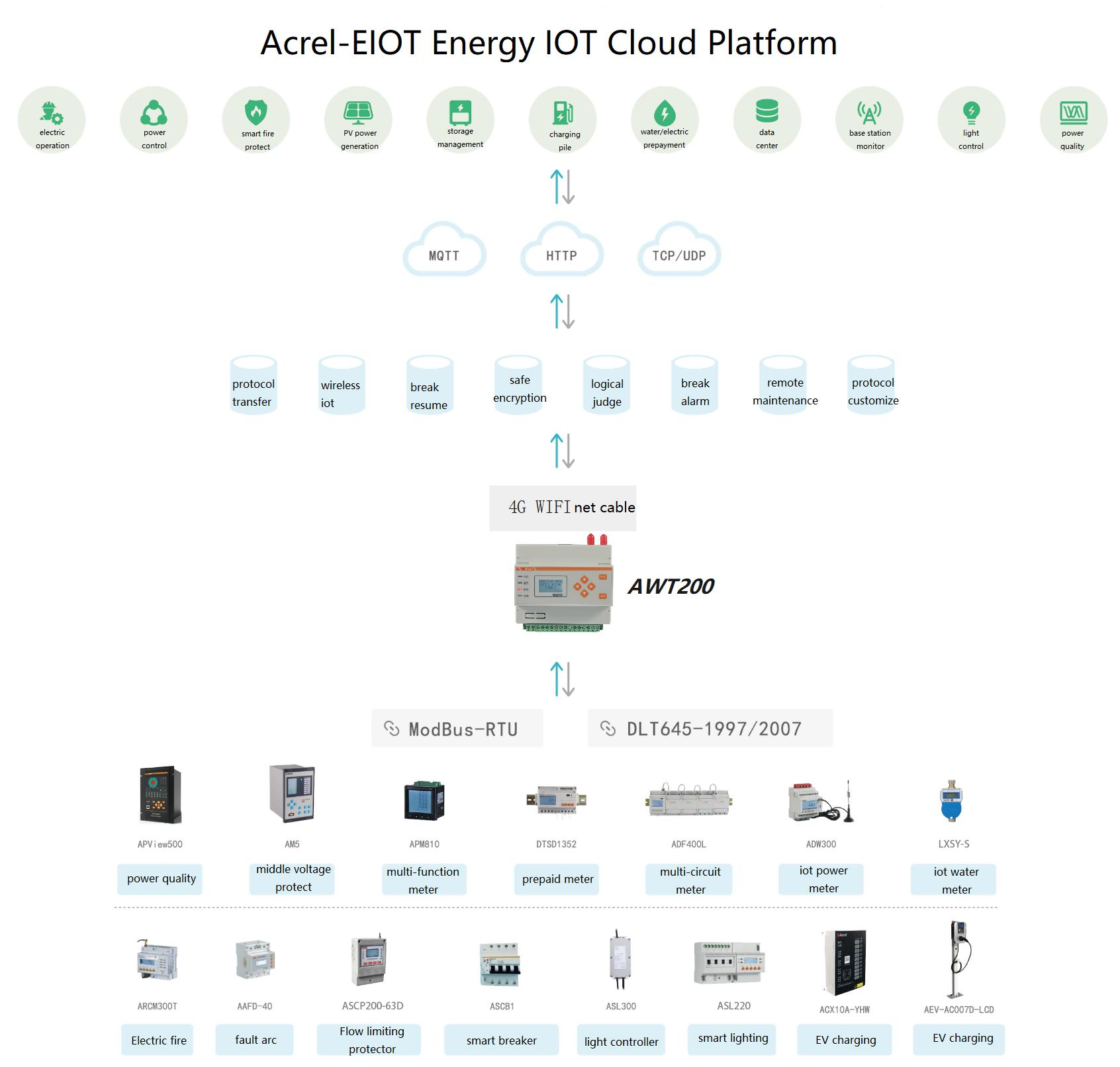

Connection

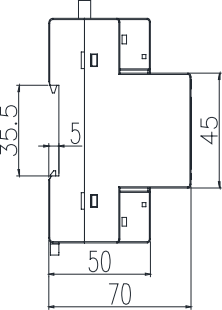

Outline and Dimension

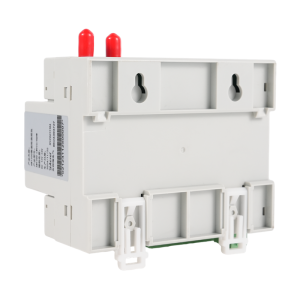

Acrel AWT200-LW Series Intelligent LoRaWan DTU
Technical Parameters
| Shape | |
| Interface | RS485: wiring terminal AI/DI/DO: wiring terminal |
| Size | 6-mold (108mmX87.75mmX70mm) din-rail, flame retardant ABS material |
| Performance | |
| Processor | M4 Kernel |
| Frequency | 168MHZ |
| Storage | 8G TF Card |
| Communication Interface | |
| Ethernet | 10M/100M * 1 ，Electrical Isolation |
| Serial Port | RS485*（4/8）：485A、485B 、GND ，Electrical Isolation |
| Serial Port parameter | |
| Baud Rate | 1200~115200bps | Check Bit | None,Odd,Even |
| Data Bit | 7～8 Bits | Flow Control | No Flow Control |
| Software | |||
| IP Mode | IPV4 、IPV6 | ||
| Protocol | TCP、UDP、HTTP、DHCP | ||
| Configuration Mode | WEB Browser, Remote Debugging | ||
| Communication Mode | TCP/IP Direct Communication, LORA | ||
| Communication Protocol | LORAWAN | ||
| Firmware Upgrade | Upgrade the Windows desktop software, WEB browser, and serial port | ||
| Working mode | |||
| Terminal Node, AWT200-LW Gateway, NS server, Application server | |||
| Power Requirements | |||
| Power Supply | DC 12-24V （Power Adapter） | ||
| Environment | |||
| Operating Temperature | -20℃~+55℃ | ||
| Storage Temperature | -40℃~+85℃ | ||
| Humidity Range | <95%RH, No Condensation | ||
