In modern industrial production and urban operation, electricity functions like blood, driving the operation of all equipment. The high-voltage switchgear serves as the "heart" and "core node" of this vast power distribution network. Whether it operates stably directly determines whether the entire power supply system can work safely and continuously.
However, the insulation components inside switchgear that operates under long-term high pressure, high temperature, and complex environments will inevitably age. Partial discharge is a typical and early sign of insulation deterioration. It's like a silent "internal fire" that has been slowly burning inside the equipment long before a fault erupts. If this "internal fire" cannot be detected and extinguished in time, minor discharge will escalate into severe short-circuit accidents, potentially leading to equipment explosion and irreversible damage. Therefore, online monitoring of partial discharge in high-voltage switchgear has become a crucial measure to ensure power system safety.
1.Partial Discharge: Why Can "Small Sparks" Lead to "Major Disasters"?
Although the energy released by each partial discharge is negligible, its harm is progressive and accumulative. Prolonged existence will seriously threaten the equipment's lifespan.
(1).Insulation Deterioration and Failure (Triple Strike)
Physical corrosion:Charged particles continuously bombard the insulating material, similar to how a high-pressure water jet erodes soil, causing physical damage and forming irreversible carbonization channels.
Chemical corrosion:The reactive gases generated by discharge, such as ozone and nitrogen oxides, will undergo chemical reactions with insulating materials, accelerating their aging, embrittlement, and decomposition.
Thermal effect: The local temperature at the discharge point rises sharply, causing thermal melting or carbonization of the material.
These three effects are superimposed on each other,continuously weakening the insulation strength, which may eventually lead to complete breakdown of the insulator.
2).Cause serious equipment failure
The continuous degradation of insulation performance can easily lead to inter-phase short circuits or ground short circuits. Such faults are often sudden and catastrophic, resulting in equipment damage at best and switchgear explosion at worst, causing disastrous consequences.
3).Cause serious equipment failure
Equipment damage: The cost of replacing large-scale electrical equipment (such as transformers) is prohibitively high.
Power outage losses: Unplanned power outages can cause significant indirect economic losses to industrial production and commercial activities.
High maintenance costs: Emergency repairs after breakdowns require significant investment in manpower and resources.
4).Threaten personal safety
A serious equipment explosion and fire would pose a direct threat to the lives and safety of personnel on site.
2.Traditional Patrols: Why They Can No Longer Meet the Demands of Modern "Bodyguard" Roles?
In the past, we primarily relied on manual periodic inspections and live testing. This approach has inherent limitations:
Randomness and Intermittency: Manual inspection cannot achieve 7x24-hour monitoring, making it easy to miss those fleeting transient discharge signals.
Many blind spots: The internal structure of switchgear is complex, and it is difficult to detect discharge in concealed areas (such as inside insulators and cable joints) without dismantling the equipment, either by naked eye or with handheld instruments.
3.Online Monitoring: From "Mending the fold after the sheep is lost" to "Foreseeing without divination"
In contrast, the online monitoring system for partial discharge in high-voltage switchgear has achieved a qualitative leap.
24/7 Continuous Monitoring: Through sensors installed inside the cabinet, the system can capture any weak discharge signal in real-time.
Intelligent Early Warning:By leveraging big data analysis, the system can conduct trend assessments of equipment insulation conditions, issue early warnings before failures occur, and achieve a shift from "reactive maintenance" to predictive maintenance, thereby significantly enhancing power supply reliability.
4. Acrel APD Series Partial Discharge Monitoring Device Solution
To address the above challenges, Acrel has launched the APD series of partial discharge monitoring devices, building a solid "firewall" for the safe operation of power equipment.

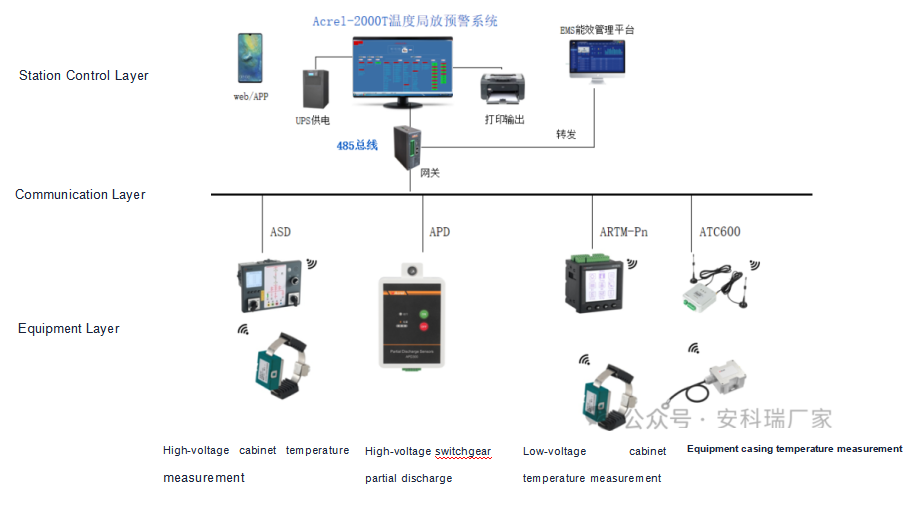

1). System Networking Diagram

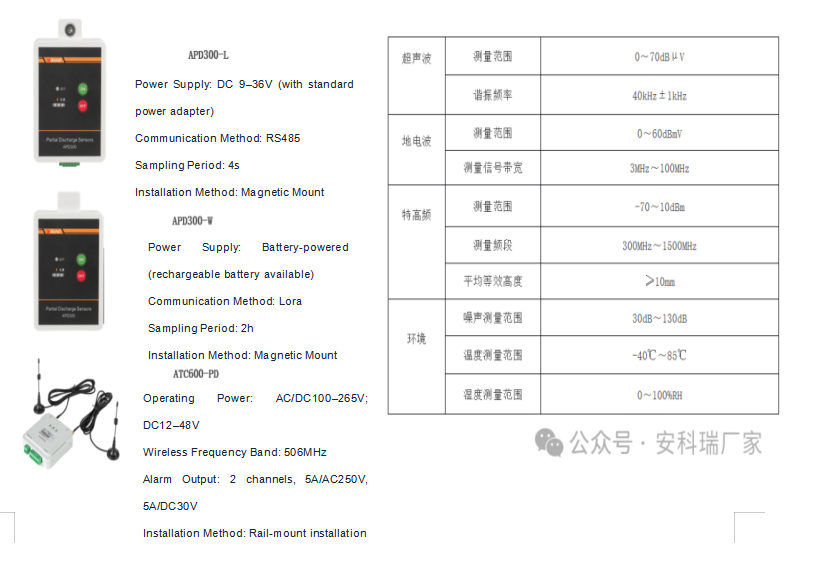

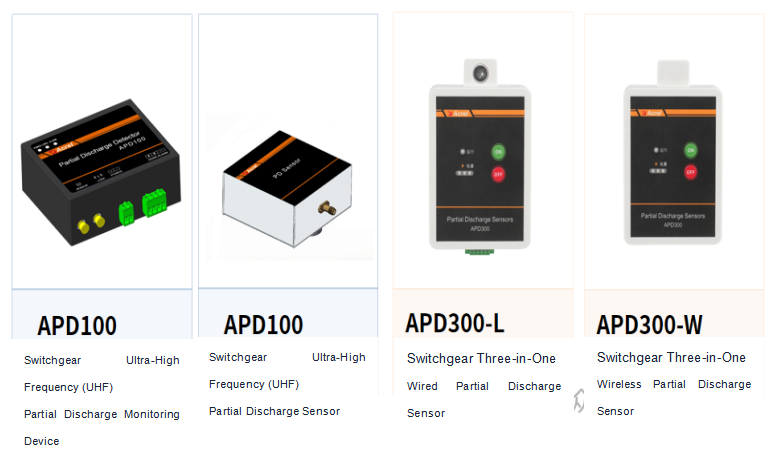

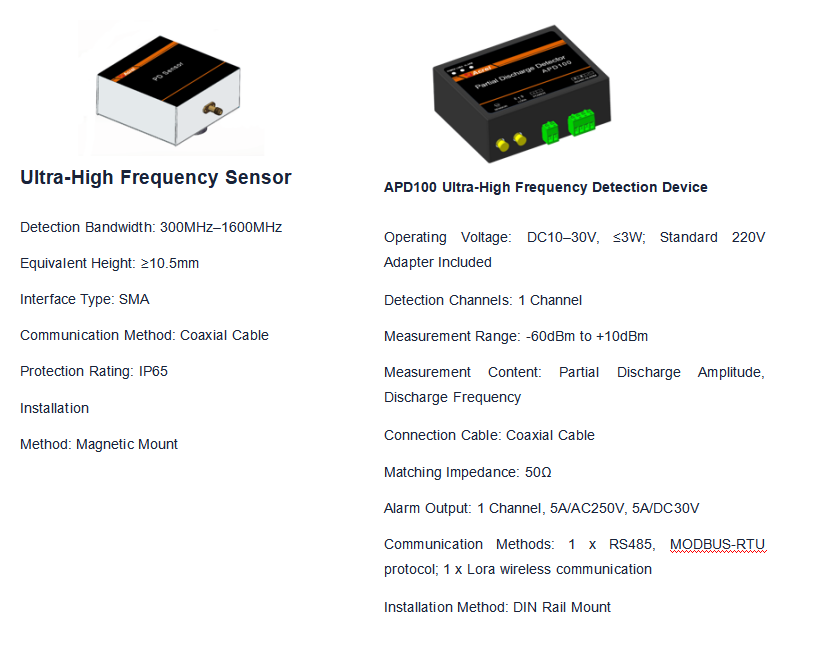

2)Core product: Switchgear Partial Discharge Monitoring Device

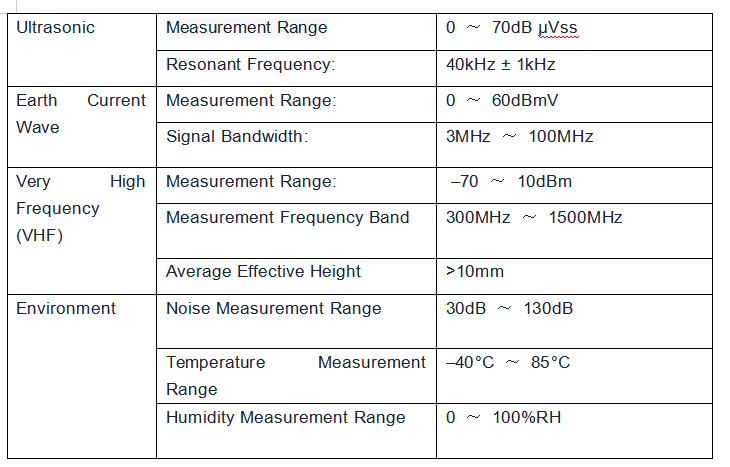

3)Key Functional Highlights
Multi-dimensional monitoring: Supports various detection technologies including Transient Earth Voltage (TEV), Ultrasonic (AE), and High-Frequency Current Transformer (HFCT), with extensive coverage.
Intelligent diagnosis: Built-in algorithms automatically identify discharge types (such as tip discharge, suspended discharge, surface discharge, etc.), eliminate interference, and reduce false alarm rates.
Data Visualization: Intuitively display discharge intensity and development trends through backend software in the form of graphs and trend curves.
5.Conclusion
Partial discharge online monitoring for high-voltage cabinets is not only a technological innovation, but also a major upgrade in power operation and maintenance philosophy. In today's pursuit of intelligence, choosing a system that meets industry standards and has multi-dimensional monitoring capabilities is equivalent to equipping the company's core power assets with an "intelligent doctor."
Let the data speak, and let hidden dangers have nowhere to hide. This is the wise approach to achieving long-term and stable operation of power equipment.
