Acrel Energy Management System
Application Scenario
• Commercial and Office Building
• Municipal Engineering
• Road Traffic Project
• Industrial and Mining Enterprise
• Educational and Medical Institution
Structure
Main Functions
• Overview of Energy Consumption
• Statistics of Energy Consumption
• Data Reading
• Analysis Report on Energy Consumption
Typical Cases
Acrel Wireless Temperature Monitoring System Applied in Beijing Daxing International Airport - view more
Acrel Wireless Temperature Monitoring System Applied in Project in Italy - view more
Acrel Wireless Temperature Monitoring System Applied in Project of Lotte Mart in Hanoi Vietnam - view more
Product Selection
| Picture | Model | Main Function |
 |
AMC96L-E4/KC Multifunction Meter | True RMS Measurements;THD with 2-31st Harmonics;
Max/Min Log with Timestamp;
Internal Optional 4DI&2DO or 2DI&2DO&2AO;
Standard one Energy Pulse Output.
|
 |

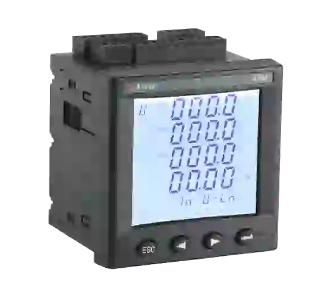

APM810 Multifunction Meter | True RMS Measurements;THD with 63rd Harmonics;
K-Factor and Crest Factor;
Unbalance & Phase Angles;
Demands and Multi-Tariff energy;
Max/Min Log with Timestamp.
|
 |
ADL10-E Single Phase Electric Energy Meter | AC 220V;10（60）A;
RS485，MODBUS-RTU;
LCD display;
kWh Class 1，Kvarh Class 2;
U、I、P、Q、S、PF、kWh、kvarh;
DIN 35mm.
|
 |
ADL100-ET Single Phase Multi-function Energy Meter | AC220V;10（60）A，20（100）A;
RS485 (MODBUS-RTU);
Set parameters;
LCD display;
kWh Class 1;
DIN 35 mm.
|
 |
ADL200 Din Rail Energy Meter | AC220V;
3×10(80)A;
RS485(MODBUS-RTU);
Set parameters;
LCD display;
kWh Class 1;
DIN 35 mm.
|
 |
ADL400 Din Rail Energy Meter | AC220V;3×1(6)A,3×10(80)A;
RS485(MODBUS-RTU);
Set parameters;
LCD display;
kWh Class 0.5;
DIN 35 mm.
|
 |

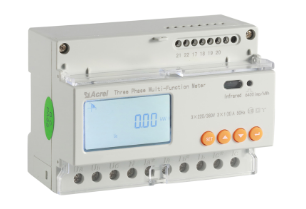

ADL3000-E Three Phase Multi-function Energy Meter | DIN 35 mm;36 circuits single phase 80A direct input Or 12 circuits 3 phase 80A direct input Or 12 circuits 3 phase 5A CT Input I,U,F,P,Q,S,PF,E;
Standard RS485 port and Modbus RTU protocol.
|
 |
AWT100-4GHW Gateway | Downlink: RS485;Uplink:4G, WiFi or Ethernet.
|
 |
ANet-1E2S-4G Gateway | Downlink:2* RS485;
Uplink:4G. |
 |

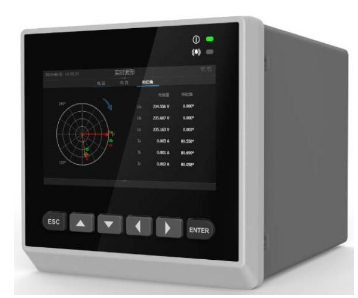

APQM-E Advanced Power Device | Advanced power quality analysis and revenue-accurate |
