Acrel Medical Isolation Power Supply System

General

Medical IT system insulation monitoring device and fault location system is suitable for hospital operating room, ICU (CCU) and other important places, and can provide a safe place for such continuous, reliable power solutions.

Due to growing demands of electronic medical equipment from hospitals, the request of protection for patients from the threat of residual current became the most crucial parts of hospital isolated power supply system.

Application Scenario

• Operating Room

• ICU

• CCU

• NICU

• Emergency Room

Structure

medical-isolation-power-supply-system-power-sensor

Main Functions

• Primary connection diagram and field distribution display

medical-isolation-power-supply-system-power-monitoring-device

• Real-time data acquisition and display

medical-isolation-power-supply-system-power-monitor

• Fault Alarm of Medical Isolated Power Supply

medical-isolation-power-supply-system-power-monitoring-unit

• Fault Alarm of Medical Isolated Power Supply

medical-isolation-power-supply-system-power-quality-monitoring-devices

• Graphic display

Display the insulation status, load status, and the isolation transformer temperature of each set of isolated power systems in graph form.

Typical Solutions

• Four-piece set

medical-isolation-power-supply-system-power-sensor-1

• Five-piece set

medical-isolation-power-supply-system-power-monitoring-device-1

• Seven-piece set

medical-isolation-power-supply-system-power-monitor-1

On-site Pictures

medical-isolation-power-supply-system-power-monitoring-unit-1

Typical Cases

Acrel Wireless Temperature Monitoring System Applied in Beijing Daxing International Airport - view more

Acrel Wireless Temperature Monitoring System Applied in Project in Italy - view more

Acrel Wireless Temperature Monitoring System Applied in Project of Lotte Mart in Hanoi Vietnam - view more

Product Selection

Picture	Model	Main Function

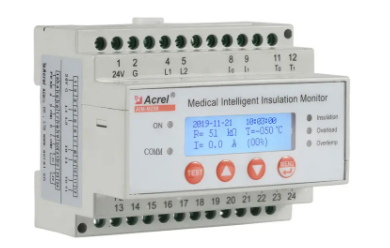

	AIM-M200 Medical Intelligent Insulation Monitor	Insulation monitoring for medical IT systems;Load and temperature monitoring of isolation transformer; Device disconnection monitoring; LED indicators: On, Insulation, Overload, Overtemp; Alarm relay output; Test button; Insulation fault location; RS485 (MODBUS-RTU) + CAN.

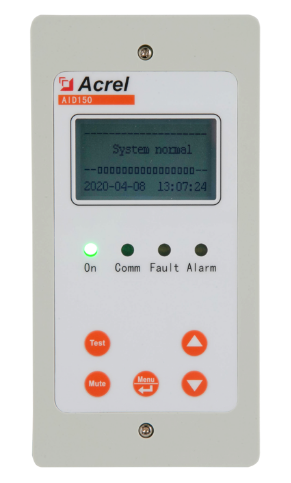

	AID150 Alarm and Display Device	Remote monitoring;LED indicators：On, Insulation, Overload, Overtemp; Mute button; Test button; Auxiliary power supply: DC24V; RS485(MODBUS-RTU).
	ASG150 Signal Generator	Generating Fault Location Signal;Detection of L1 and L2 disconnection; LED indicators: On, Comm, Test; CAN bus; Auxiliary power supply: DC24V.

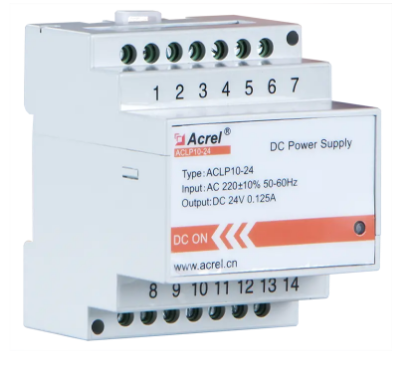

	ACLP10-24 Auxiliary Power Supply	Auxiliary power supply to AID series;AC 220V input, DC 24V output; Completely Isolated Linear Transformer; Power-on indicator.

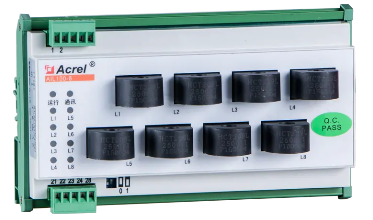

	AIL150-4/-8 Insulation Fault Locator	Insulation fault location in AC IT systems;AIL150-4: 4 measuring channels; AIL150-8: 8 measuring channels; LED indicators: On, Comm; CAN bus; Auxiliary power supply: DC24V.

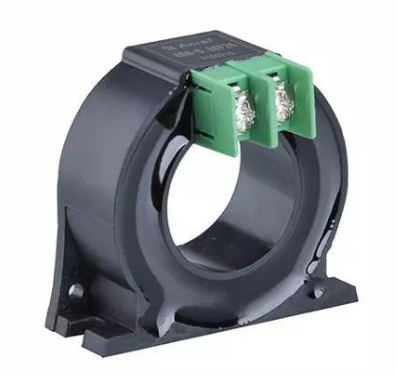

	AKH-0.66P26 Protective Current Sensor	Matching with AIM-M Series Insulation Monitor;Maximum Current: 50A; Transformation ratio: 2000:1.
	AITR Series Medical isolation transformer	Isolating transformers for medical IT systems;Double insulation treatment, Electrostatic shielding layer; PT100 temperature sensor; Rated power: 3.15…10KVA; CE.
