Acrel AM5 Middle Voltage Protection Relay

Acrel AM5 Middle Voltage Protection Relay



● A complete set of protection, related to the application;

● 8 current input, 4 voltage input, 16 DI, 10 DO;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;

● 1 RS232 for user update;

● 1 GPS for GPS timing;

● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;

● Powerful graphic programmable Logic.

● Line protection Motor protection Capacitor protection Feeder protection


Product Detail

Technical Parameters

Certificate

Product Tags

Acrel AM5 Middle Voltage Protection Relay

General

AM5 series microcomputer protection device integrates protection and control. It is suitable for user terminal substations (substations) with voltage levels of 35kV and below, and can realize comprehensive protection and control of user substations. Application fields cover power, water conservancy, transportation, petroleum, chemical, coal, metallurgy and other industries.

Diagram of AM5 Middle Voltage Protection Relay

AM5SE - LCD display

Function of AM5 Middle Voltage Protection Relay

AM5 - Function - 1
AM5 - Function - 2

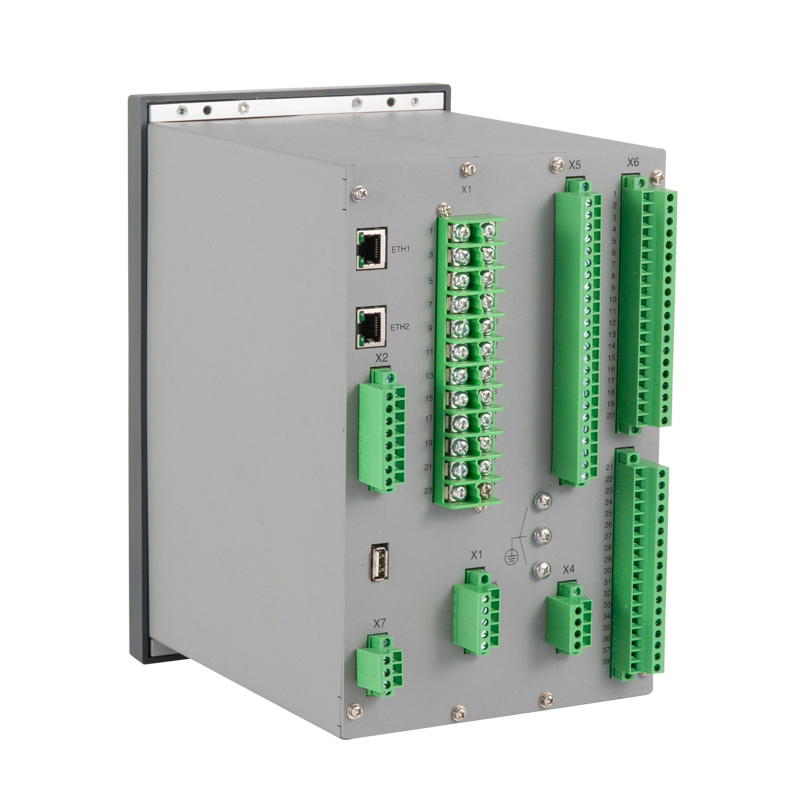

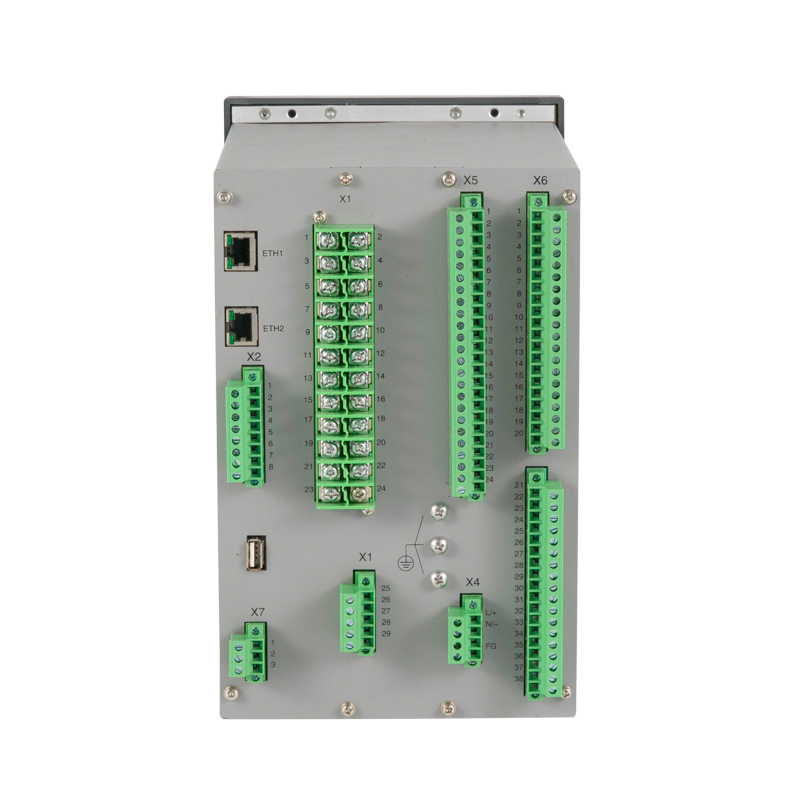

Wiring

AM5SE - wiring

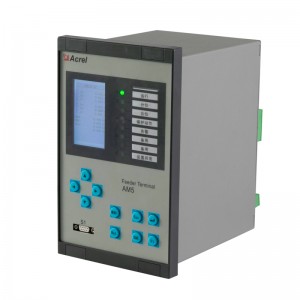

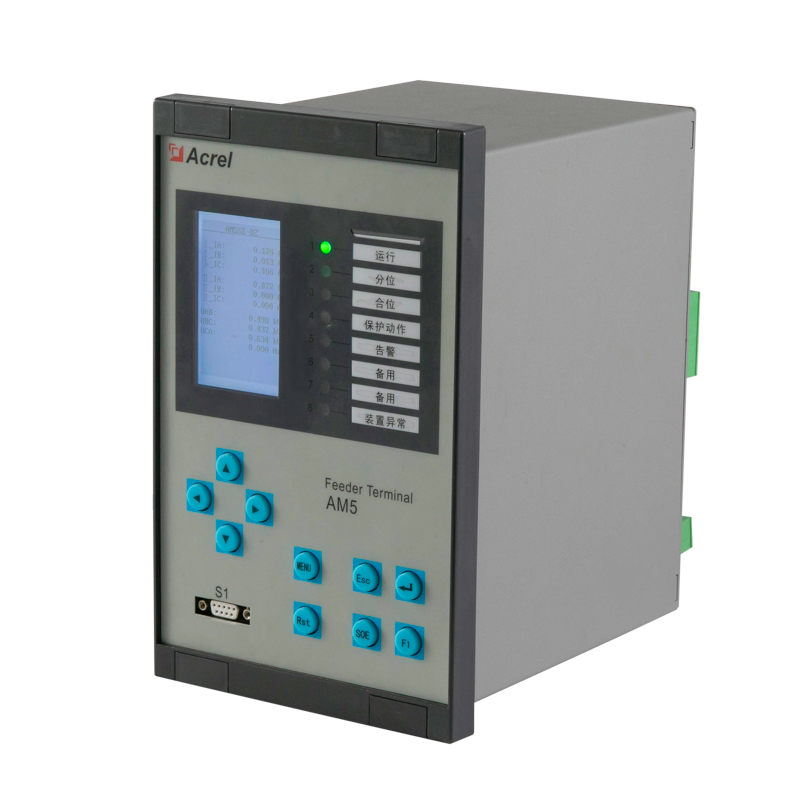

Front Panel

AM5SE - panel

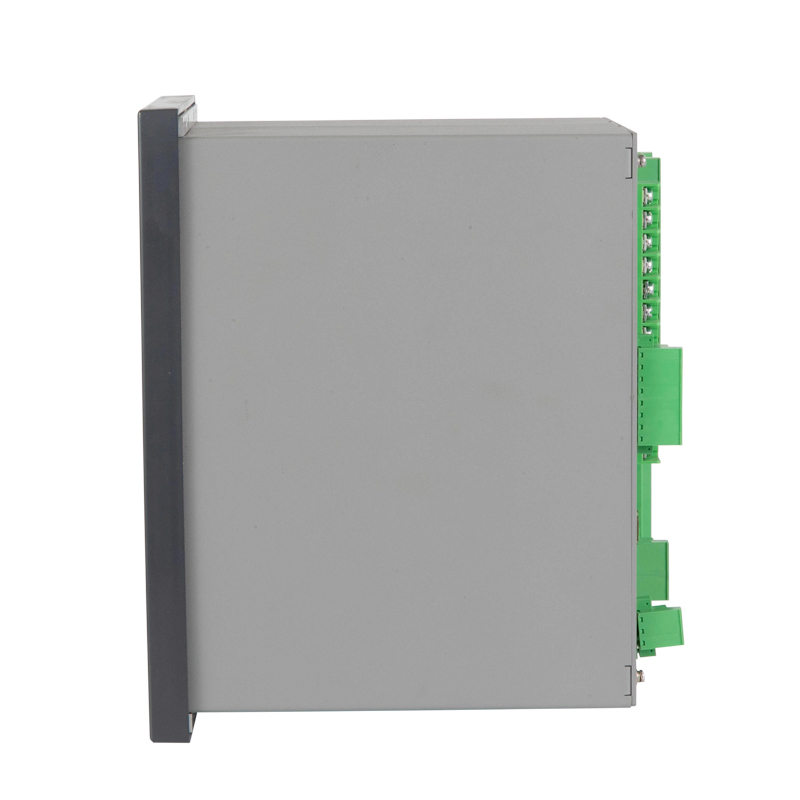

Dimension

AM5SE - Dimension

Network

AM5SE - Typical connection

Benefits of AM5 Middle Voltage Protection Relay

A complete set of protection, related to the application

8 current input, 4 voltage input, 16 DI, 10 DO

Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V

2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU

1 RS232 for user update

• 1 GPS for GPS timing

More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records

Powerful graphic programmable Logic

FAQ of AM5 Middle Voltage Protection Relay

How to set the CT and PT ratio of the protection device?

The protection device can set the CT and PT ratio through the fixed value menu. For example, the current transformer is 75/5 and the voltage transformer is 10/0.1, then the CT ratio is set to 15 and the PT ratio is set to 100.

For AM5, if you want to place a single circuit protection and transformer protection, how to distinguish the model?

AM5-F is suitable for line protection and transformer protection.No need to distinguish between models when placing orders

When the voltage is three-phase three-wire system, does the current have to be connected with 2CT?

The voltage wiring mode and current wiring mode of the protection device can be set independently, and can be connected freely.

How to confirm whether the anti-trip function is configured?

If the circuit breaker is equipped with anti-trip, the device does not must be equipped with anti-trip; if the circuit

breaker does not have anti-trip, you need to configure the AM5-FT anti-trip module. (If DC48V is selected as the

operating power supply, the anti-trip box is not optional, and the circuit breaker must be equipped with anti-trip

function; if you choose AC anti-trip, please note that AC and DC general anti-tripping)



How to purchase suitable protection devices?

Before ordering, it is recommended to consult related engineers, select the appropriate protection model,

and then fill in the corresponding selection table, and place the order after confirmation by the engineers.




  • Previous:
  • Next:

  • Acrel AM5 Middle Voltage Protection Relay

    Function

    Function

    AM5

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    Input Current

    8

    8

    8

    8

    6

    0

    6

    Input Voltage

    4

    4

    4

    4

    6

    4

    6

    Digital

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    Digital Input

    16

    16

    16

    16

    16

    16

    16

    Digital Output

    10

    10

    10

    10

    10

    10

    10

    Rear port

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    RS485 (2 ports)

    USB(1 port)

    Protocols

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    Modbus Serial

    IEC 60870-5-103

    Measurment

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    Electric parameter

    U、IPQPFFrEpEqEs

    U、IFr

    UFr

    U、IFr

    Logs and Records

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    Fault recorder

    Number of circuit breaker trip and close

    Sequence of event record

    Monitoring function

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    Trip-and-Close Circuit Supervision

    Remote control

    Others

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    GPS

    Protection Function

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    Overcurrent(3 stages) [ANSI 50/51]

    Directional Overcurrent(3 stages) [ANSI 67]

    Overcurrent(2 stages) [ANSI 50/51]

    Earth fault [ANSI 50N/51N]

    Overcurrent IDMT(Normal inverse,Very inverse,Extremely inverse) [ANSI 51N]

    Overload [ANSI 49F]

    Trip and close circuit supervision (alarm)

    Under voltage [ANSI 27]

    √ alarm

    Loss voltage [ANSI 27]

    PT supervision [ANSI 60]

    Three phase Auto-Reclose [ANSI 79]

    Under frequency [ANSI 81U]

    Over frequency [ANSI 81O]

    Post-accelerated Overcurrent

    Overvoltage [ANSI 59]

    √ alarm

    √ alarm

    Protection Function

    -F

    -C

    -M

    -T

    -B

    -U1

    -DB

    Locked rotor [ANSI 51LR]

    Unbalance voltage [ANSI 60]

    Unbalance current [ANSI 60]

    Incorrect phase sequence

    Residual Overvoltage protection [ANSI 59N]

    √ alarm

    Non-electricity

    Motor starting time-out [ANSI 48]

    Directional power [ANSI 32]

    Thermal overload [ANSI 49M]

    Positive sequence Overcurrent (2 stages/IDMT) [ANSI 46]

    BUS tie protection and standby power automatic switch

    Bus charging

    FC block [ANSI 86]

    EMC block

    Intermittent earth fault

    Over haul-lockout [ANSI 86]

    Note: √ represent with this feature,blank represents without this function.



    Technical Parameter

    CharacteristicsVersion

    AM5

    Power Supply

    Rated voltage

    AC/DC 110V or AC/DC 220V or DC48V

    Range

    Rated voltage × (1±20%)

    Burden

    ≤10 VA

    PT Inputs

    Rated value

    AC 100V or V

    PT rated secondary range

    1V120V

    Accuracy

    0.5S

    Burden

    0.5VA (each phase)

    Voltage withstand

    Continuous: 1.2 Un

    10s: 2 Un

    Phase CT Inputs (Protection Current)

    CT rated secondary range

    AC 5A or 1A

    Dynamic

    0.04 ~ 15 × CT rated current

    Accuracy

    0.5S

    Burden

    0.5VA (each phase)

    Thermal withstand

    Continuous: 2 In

    1s: 40 In

    Phase CT Inputs (Measurement Current)

    CT rated secondary range

    AC 5A or 1A

    Dynamic

    0.04 ~1.2 × CT rated current

    Accuracy

    0.5S

    Burden

    0.5VA (each phase)

    Thermal withstand

    Continuous: 1.5 In

    1s: 4 In

    Frequency

    Rated frequency

    50Hz or 60Hz

    Frequency range

    45 ~ 55Hz or 60Hz

    Accuracy

    ±0.1Hz

     Digital Inputs

    Operating nominal voltage

    AC/DC 110V or AC/DC 220V or DC48V

     Digital Inputs

    Voltage threshold

    70% of nominal voltage

    Reset threshold

    55% of nominal voltage

    Burden

    ≤ 1W (each phase) (DC220V)

    Digital Outputs

    Make and carry

    ≥ 10000 operations

    Making capacity

     ≥ 1000W, L / R = 40ms

    Continuous current

    ≥ 5A

    Short duration carry current

    ≥ 30A for 200ms

    Breaking capacity

    ≥ 30W, L/R = 40ms

    Characteristics Accuracy Resolution Disengaging ratio
    Voltage ±3% 0.001V 0.95 and 1.05
    Current ±3% 0.001A 0.95 and 1.05
    Frequency ±0.02Hz 0.001Hz
    Operation delay|t>(DT) 40ms or ±2% setting value 0.001s -
    Operation delay|t>(IDMT) 40ms or ±5% setting value 0.001s -
    Characteristics Standard Level/Class
    Radiated emission IEC-60255-26:2023——5.1

    A

    Conducted emission IEC-60255-26:2023——5.2

    A

    Radiated radio frequency fields IEC-60255-26:2023

    A

    Electrostatic discharge IEC-60255-26:2023——6.1

    B

    Conducted radio frequency disturbance IEC-60255-26:2023——6.2-6.5

    A

    Fast transient bursts IEC-60255-26:2023——6.2-6.5 B
    Slow damped oscillatory waves IEC-60255-26:2023——6.2-6.4

    B

    Surges IEC-60255-26:2023——6.2-6.4 B
    Voltage dips and short interruptions test(AC or DC) IEC-60255-26:2023——6.2

    A/C

    Magnetic field at power frequency IEC-60255-26:2023——6.1

    B



    18230SC20012901 AM5 CE-LVD Report

    78251EC20002501 AM5 CE-EMC Report
