● Full Power Measurement
● Power Quality Analysis
● Leakage Current Measurement (Optional)
● Support Modbus-RTU/TCP Protocol
● Accuracy: 0.5s
● Standard&Certificate: CE

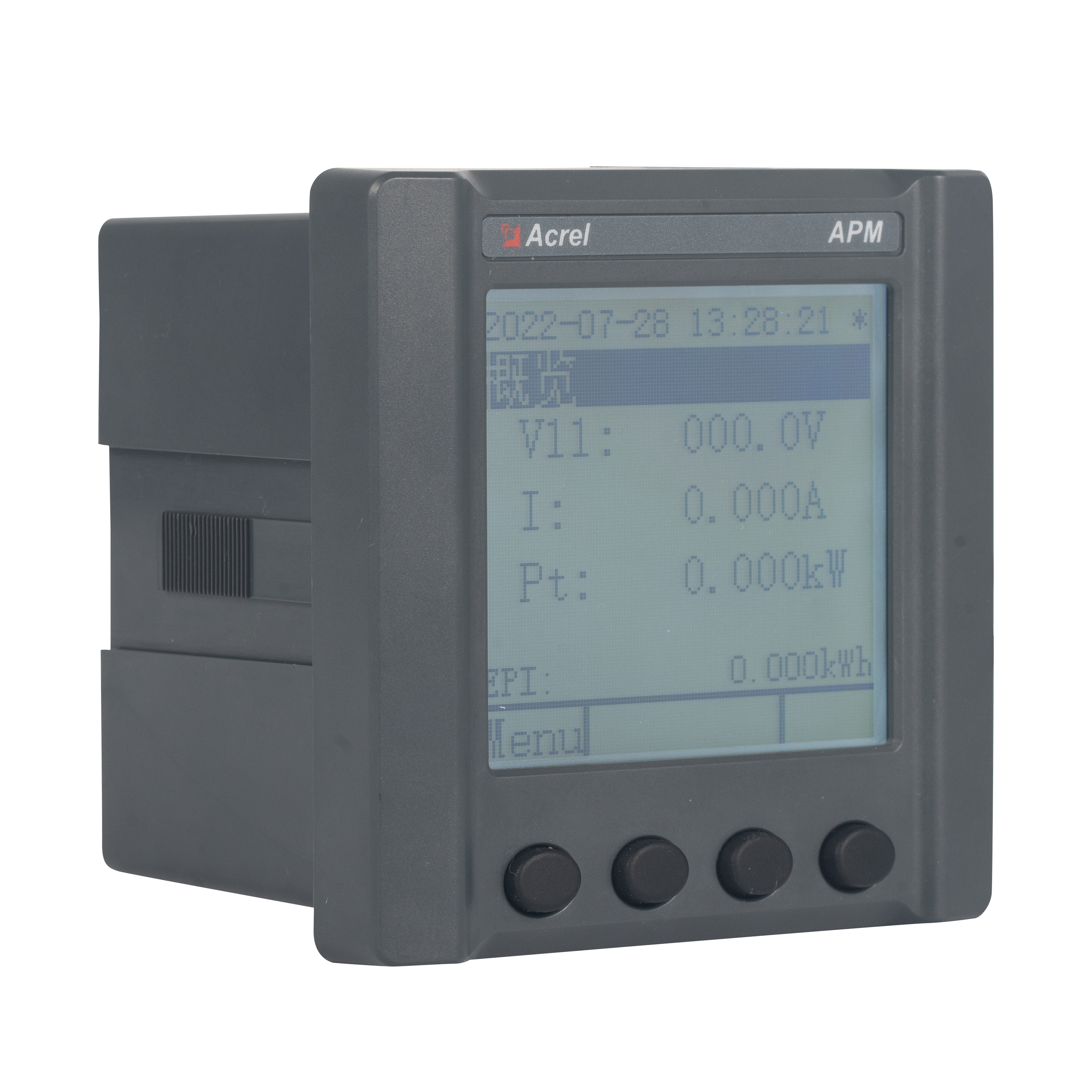

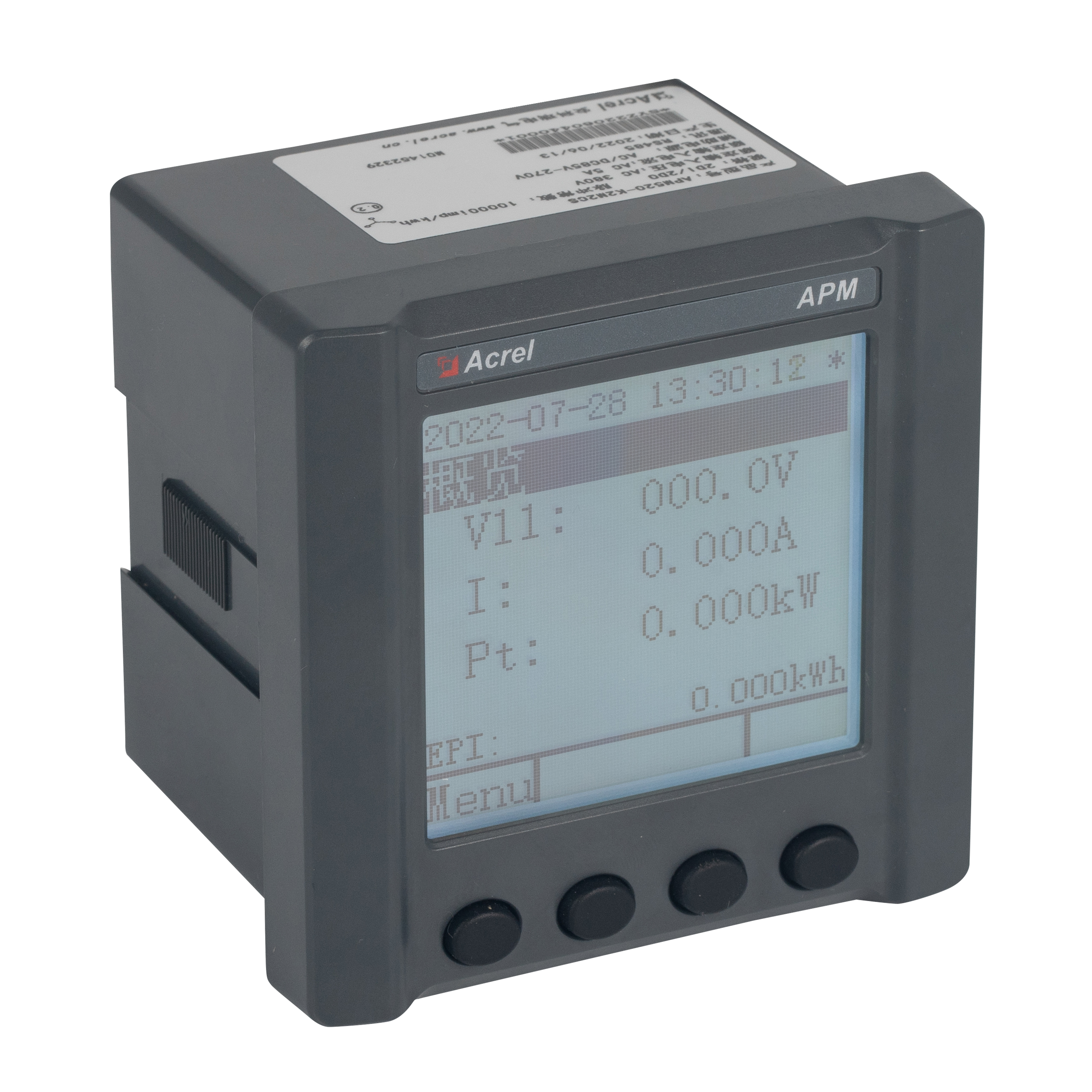

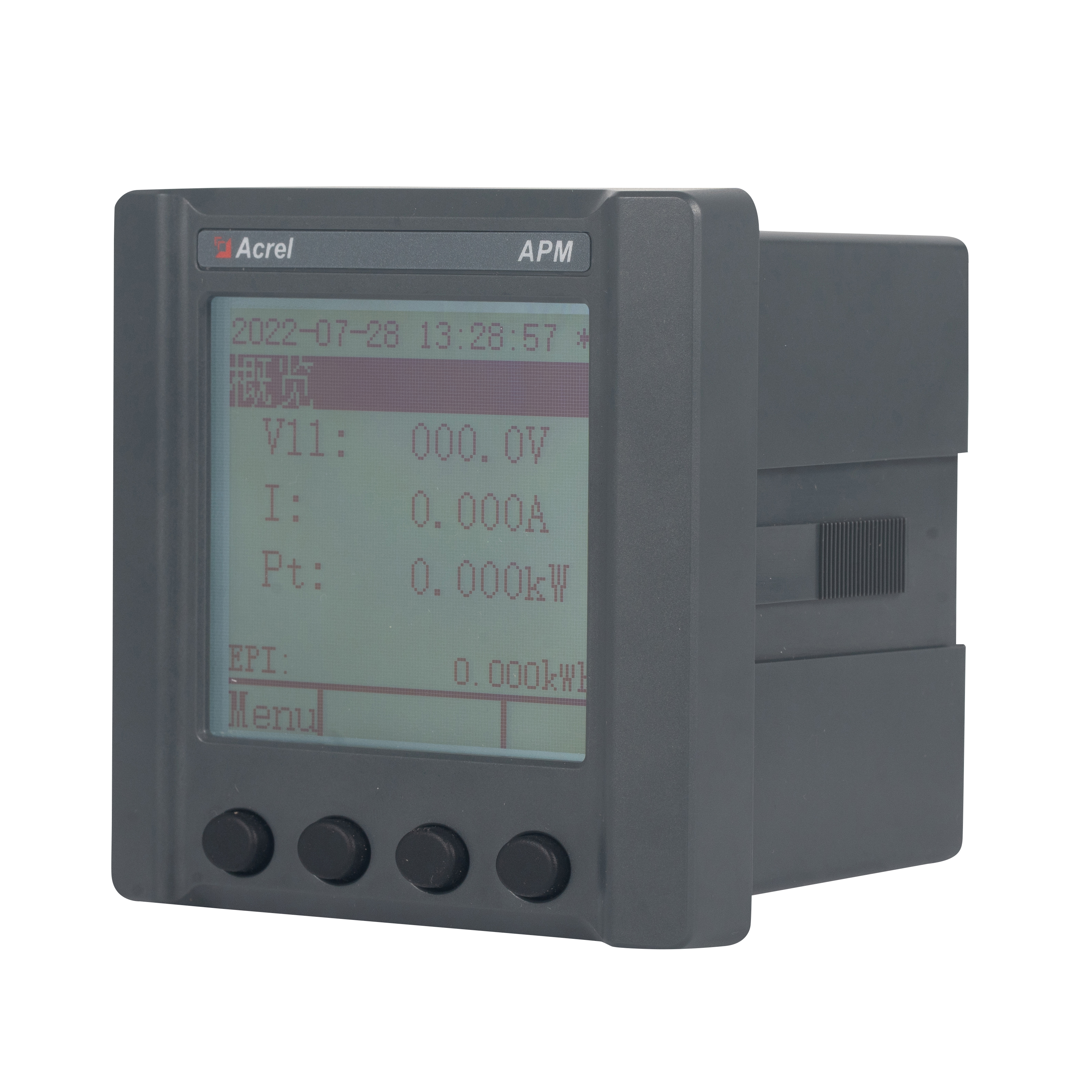

Acrel AMC96L-E4/KC Three Phase Multifunction AC Power Meter
General
Acrel APM5 series network power meter (hereinafter referred to as the meter) is designed according to IEC international standards, with full power measurement, power statistics, power quality analysis (including harmonics, interharmonics, flicker), fault recording function (including voltage temporary rise and fall interrupt, inrush current and other records), event recording function and network communication and other functions. It is mainly used for comprehensive monitoring of power supply quality in the power grid.
Functions
Accuracy
Voltage、current and power: Class 0.2
Active power: Class 0.5; Reactive power: Class 1
Pulse Output
Pulse constant: 10000imp/kWh (default)
Consumption
Voltage、current: Power consumption: <0.5VA;
Auxiliary power supply: Power consumption ≤15VA
Starting Current: 0.1%
Installation: Panel mounted
Frequency: Range: 45-65Hz
Relay: 3A/AC250V, 3A/DC30V
Dimension (L*W*H)
Panel size (L×W): 75*75mm
Cut-out size (L×W): 67*67mm
Auxiliary Power Supply
AC/DC 85V～265V or AC/DC 115～415V
Wiring

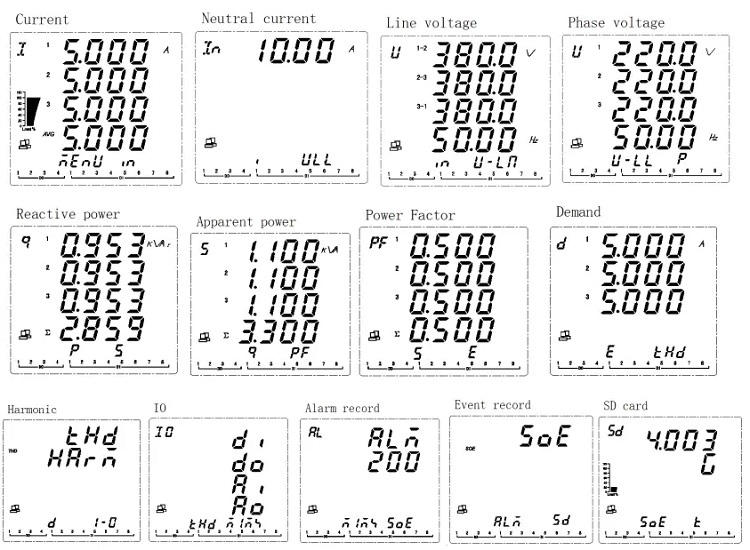

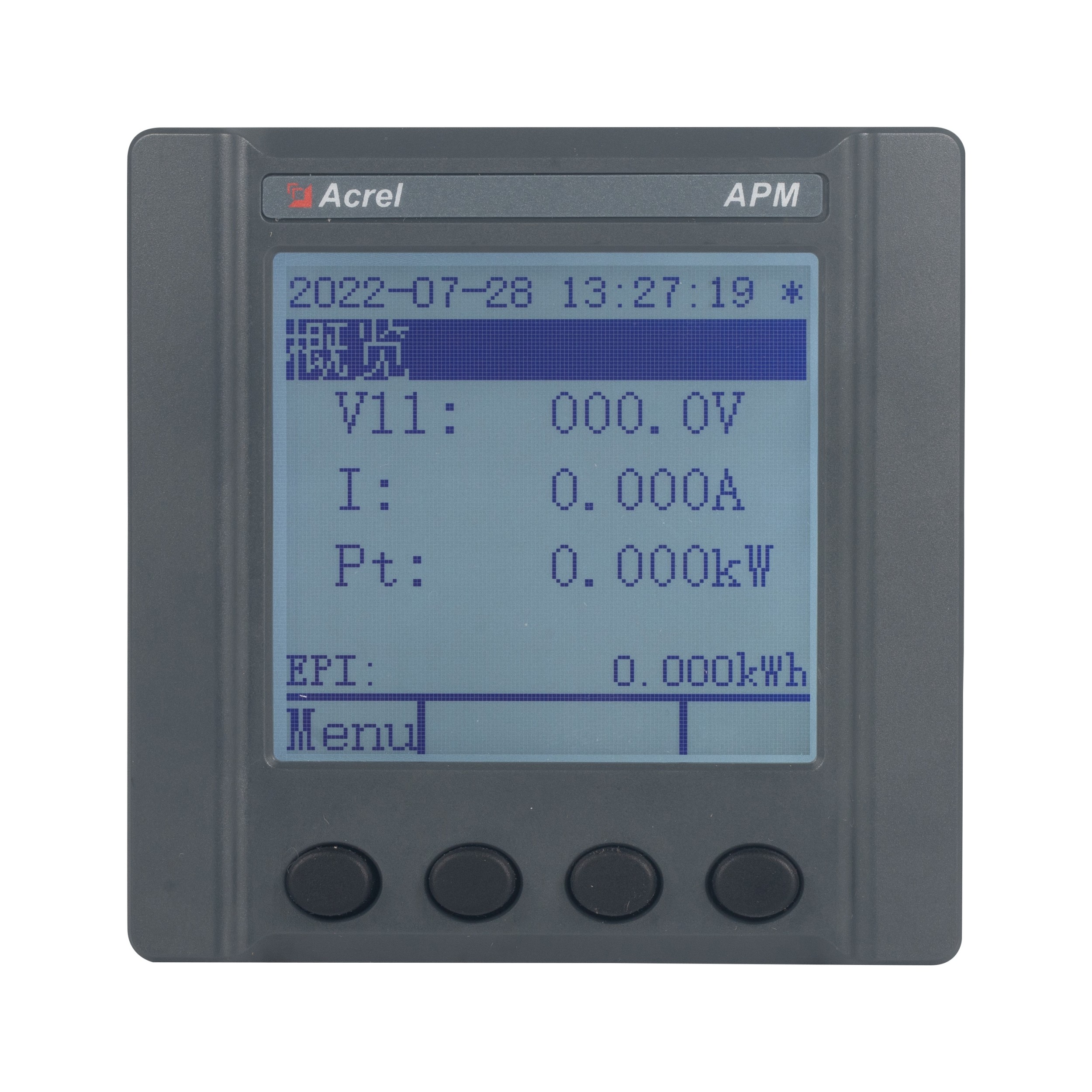

Display

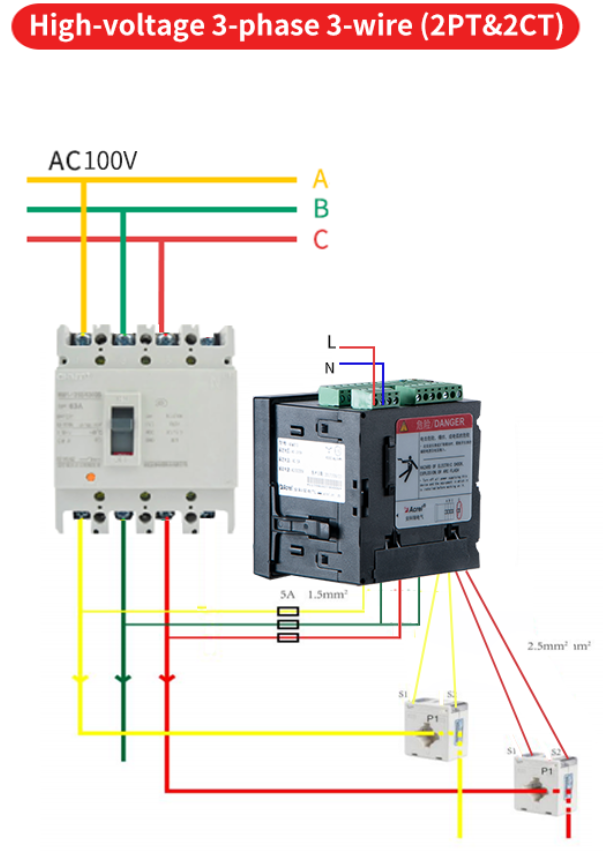

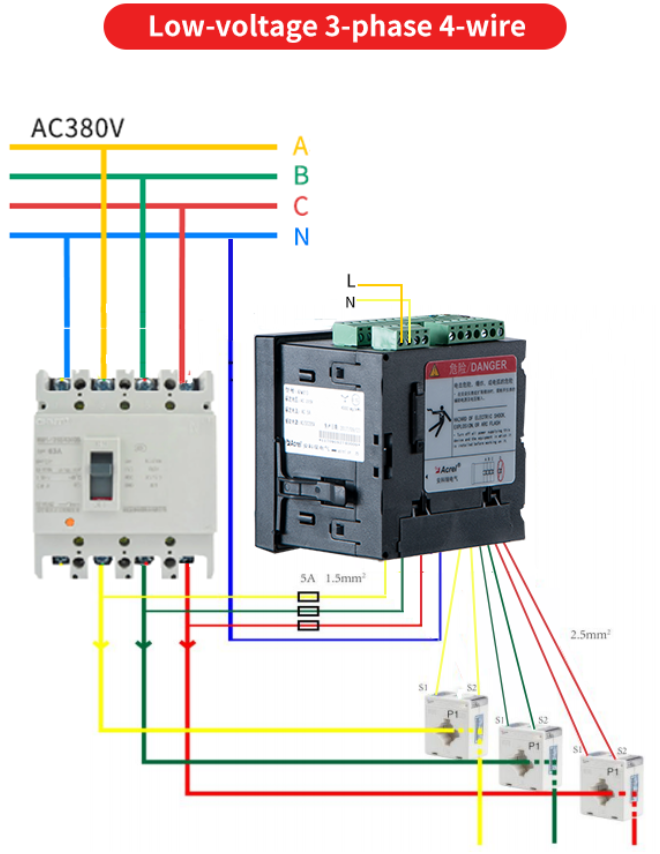

AC Voltage Signal (100V AC L-L) Input via -/100V AC PTs & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)

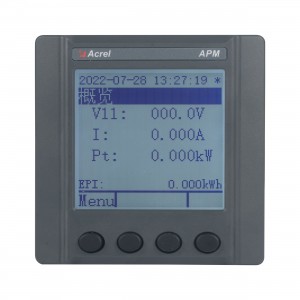

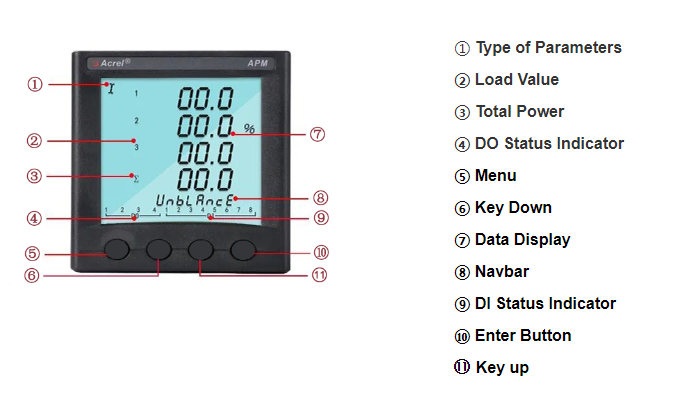

Front Panel
Network

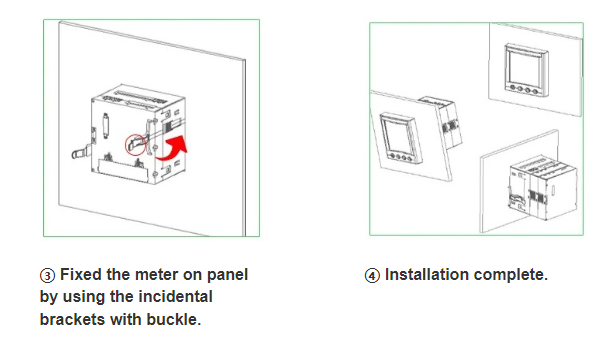

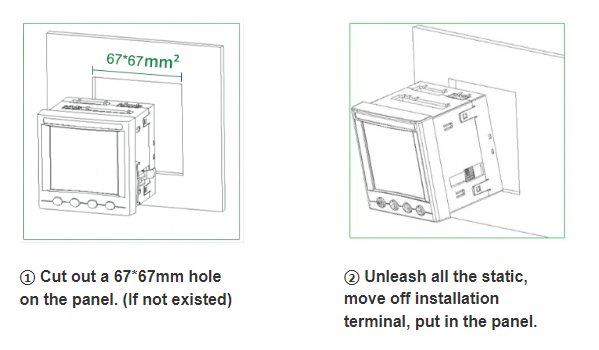

Installation

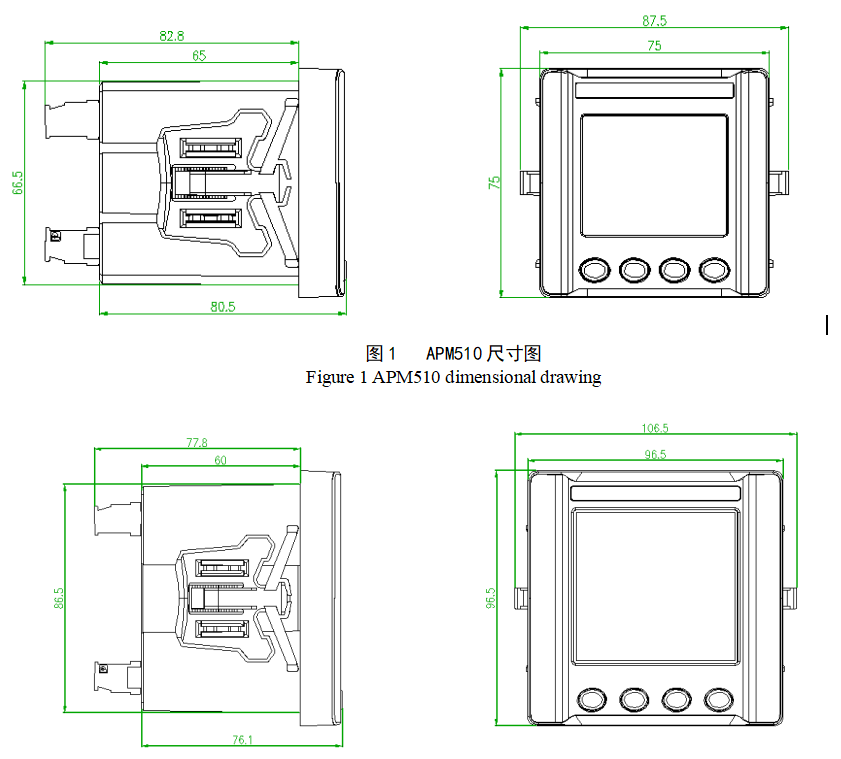

Outline and Dimension
Application
• Full power monitoring of incoming, bus or critical feeders
• Monitoring of automation devices and intelligent terminal systems in low-voltage cabinets
• Substation, building or factory automation systems
• Distribution Automation System in Industrial Enterprises
• Factory power system automation and load control
• Energy and Energy Efficiency Management System
• Power Plant Electrical Energy Management System
Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 1 pcs ProductsDimension: 170*150*130mm | Total N.W. (1 pcs) 0.67 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs ProductsDimension: 540*530*480mm | Total N.W. (36 pcs) 11.4 KG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment) | Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |

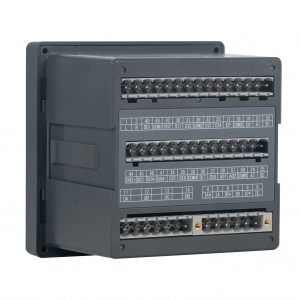

Acrel APM5XX Series Multifunction Power Meter
Function Selection
|
Base model |
Basic function |
Optional function |
Option Group |
|
APM510 |
2DI2DO1EP1C |
1. CE (Ethernet Communication/MODBUS-TCP). |
1+5+6+7+8 2+3+4+7+8 5+6+7+8+9 5+6+7+8+10 5+6+7+8+11 5+6+7+8+12 |
|
2.2C (Extended 2nd Communication). |
|||
|
3.K (2 switch inputs + 2 switch outputs). |
|||
|
4.2M (2ch analog). |
|||
|
5.T (4-channel NTC temperature measurement). |
|||
|
6.L (1 channel leakage). |
|||
|
7.F (Compound Rate). |
|||
|
8.S (0.2S level + fault recording). |
|||
|
9.WF（WiFi Communication） |
|||
|
10.LR（Lora Communication） |
|||
|
11.4G（4G Communication） |
|||
|
12.NB（NB Communication） |
|
Base model |
Basic function |
Optional function |
Option Group |
|
APM520 |
4DI2DO2EP1C |
1. CE (Ethernet Communication/MODBUS-TCP). |
1+5+6+7+8 2+3+4+7+8 1+5+6+7+8 2+3+4+7+8 5+6+7+8+9 5+6+7+8+10 5+6+7+8+11 5+6+7+8+12 |
|
2.2C (Extended 2nd Communication). |
|||
|
3.K (4-way switching input + 2-way switching output). |
|||
|
4.2M (2ch analog). |
|||
|
5.T (4-channel NTC temperature measurement). |
|||
|
6.L (1 channel leakage). |
|||
|
7.F (Compound Rate). |
|||
|
8.S (0.2S level + fault recording). |
|||
|
9.WF（WiFi Communication） |
|||
|
10.LR（Lora Communication） |
|||
|
11.4G（4G Communication） |
|||
|
12.NB（NB Communication） |
Note:1.Optional K function, defined as extending the DID on the basis of the basic function
Technical Parameters
| Display | Display method | Dot matrix liquid crystal; Switch between Chinese and English | ||
| Resolution | 128*128； | |||
| Backlight | White LED; | |||
| Visible area | 72 Shape: 38mm*46mm (1.78″/2.3″);96 Shape: 56mm*60mm (2.46″/3.2″); | |||
| Signal | Electrical network | Three-phase three-wire, three-phase four-wire, see the wiring diagram; | ||
| Frequency | 45～65Hz； | |||
| Voltage | Rating: AC 3*57.7/100V, AC 3*63.5/110V, AC 3*230/400V, AC 3*400/690V (96 Shape only); | |||
| Overload: 1.2 times the rating (continuous); 2x rating/1 second; | ||||
| Power consumption: < 0.5VA(Every way)； | ||||
| Current | Ratings: AC 3x 1 (1.2) A, AC 3×5(6)A; | |||
| Overload: 1.2 times the rating (continuous); 10x rating/1 second; | ||||
| Power consumption: < 0.5VA(Every way)； | ||||
| Measurement accuracy | Voltage, current | IEC 61557-12 0.2% | ||
| Voltage harmonics, current harmonics | IEC 61557-12 1% | |||
| Frequency | IEC 61557-12 ±0.02Hz | |||
| Active power | IEC 61557-12 0.5% | |||
| Reactive power | IEC 61557-12 1% | |||
| Active electrical energy | 0.5S class GB/T 17215.321-2008C class GB/T 17215.321-2021(0.2S accuracy when S is selected) | |||
0.2S class GB/T 17215.321-2008
D class GB/T 17215.321-2021Reactive powerIEC 62053-24 Class 1Power quality (only available when S is selected).Waves recording20 waveforms, 10 waves before and after;Waveform capture128 cycle points are stored per waveform;Switch inputDry contact input, built-in power supply;Response time: less than 300msRelay outputContact type: normally open contact;Contact capacity: AC 250V/3A DC 30V/3A;Energy pulse outputOutput mode: photocoupler pulse with open collector;Pulse constant: 10000imp/kWh (default);communicationRS485 interface/Modbus-RTU protocol and DLT645 protocol;RJ45 interface (Ethernet)/Modbus-TCP protocol;Wireless interfacepower supplyWorking range: AC 85V~265V; DC100V～350VPower consumption: power consumption≤15VA;SafetyPower frequency withstand voltageThe power frequency withstand voltage between the housing and the auxiliary power supply, each input and output terminal group is AC 4kV/1min;The power frequency withstand voltage between the auxiliary power supply and each input terminal and each output terminal group is AC 2kV/1min;The power frequency withstand voltage between the voltage input and other input and output terminal blocks is AC 2kV/1min;
The power frequency withstand voltage between the current input and other input and output terminal blocks is AC 2kV/1min;
The power frequency withstand voltage between the relay output and other input and output terminal blocks is AC 2kV/1min;
The power frequency withstand voltage between the terminal groups of switching input, communication, analog output and pulse output is AC 1kV/1min;Insulation resistanceInputs、outputs to the shell>100MΩ；Electromagnetic compatibilityComplies with IEC 61000 standard (Level 4);EnvironmentOperating temperature：-25℃～+70℃；Storage temperature：-40℃～+85℃；Relative humidity：≤95% without condensation；Altitude：≤2500m；Protection LevelDisplay panel IP54; (Optionally IP65).StandardsIEC 60068-2-1IEC 60068-2-2IEC 60068-2-30Environmental Testing-Part 2-1:Tests Test A:Cold IDAEnvironmental Testing Part 2-2:Tests Test B:Dry heatEnvironmental Testing Part 2-30:Tests Test Db:Damp heat，cyclic (12+12h)IEC 61000-4Electromagnetic compatibility-Testing and measurement techniquesIEC 61557-12Electrical safety in low voltage distribution systems up to 1 000V a.c. and 1 500V d.c –Equipment for testing， measuring or monitoring of protective measures — Part12：Performances measuring and monitoring devices(PMD)IEC 62053-22Electricity metering equipment (a.c.)-Particular requirements - Part22:Static meter for active energy(class 0.2S and 0.5S)IEC 62053-24Electricity metering equipment (a.c.)-Particular requirements - Part24:Static meter for reactive energy at fundamental frequency (classes 0.5S 1S and 1)
APM Multifunction Power Meter 78251EC20064101CE-EMC Certificate
